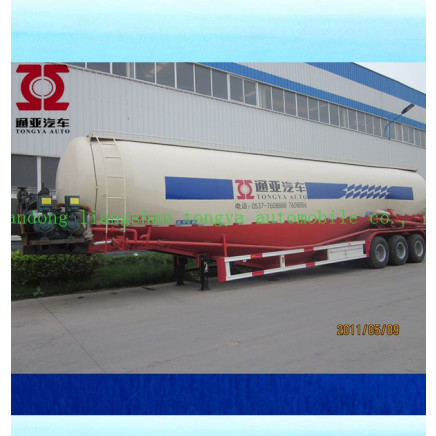

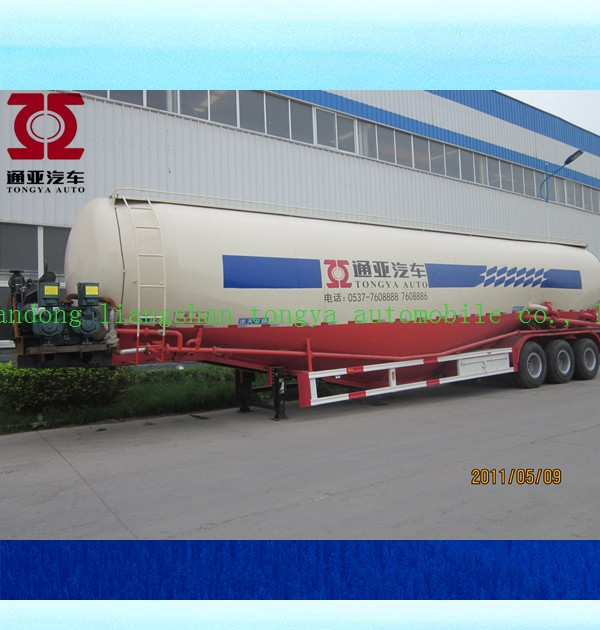

low price 3 axles bulk cement tankers semi trailers / bulk cement truck trailer for saleProduct Description 1. Product Name: bulk cement truck trailer2. Outside Dimension: 13000mm?2500mm?3950mm(also can according to your dimension)3. payload: 60 (also can according to your Volume)4. tanker body: 5mmor 6mm5. material: Q235B carbon steel6. Axle: FUWA brand 13ton7. tyre: 825R20, 9.00R20, 10.00R20,11.00R20 also can accroding to your request.Product advantage
1. All of our products through the CCC and ISO certification, product quality is absolutely guaranteed!
2. Our company has a professional production and design team, We design the product that won the Chinese national patent approval.
3. We are manufacturers, not trading company.So we will let you get a lower price.
Our bulk cemement tanker semi trailer has independent research and development, is a patented product, has obtained China utility model patent certificate! (we can design a "V" word line of tanks, light dead weight, material residual rate is less than 1%, reliable performance, has the best reputation in the domestic tank transportation industry) please let us know the goods properties and particle size, volume or density, weight, etc, our company for your separate design, ensure give you satisfactory rendering in the shortest possible time, welcome to contact us at any time!
Main Dimensions |
| Tank Body |
| Shape | Optional ( One Silo with V type or Two ,Three Silos Design) |
| Dimension | 12000mm*2490mm*3990mm ( Exact size depends on the final design) |
| Tare weight | About 7500KGS-15000KGS |
| Total Volume(m3) | 25m³-68 m³ |
| Tanker Body Material | 5mm or 6mm/ Q235 carbon steel |
| End Plate | 5mm or 6mm /Q235 carbon steel |
| Diesel Engine | WEICHAI ,Tianhe 4100/4102 or other brand |
| Compressor | BOHAI 10m³/12 m³or other brand |
| Manhole Cover | Carbon steel or Aluminum 500mm |
| Discharging Valve | Diameter is 3 or 4 inch (Material: Aluminum ) |
| Discharging Pipe | 3 or 4 inch rubber hose, 1pcs, 6m/each |
| Cat Walk | With (Common model or special design) |
| Chassis |
| Main Beams | Welding Design ,Q345 carbon steel |
| Axle | 2 or 3 axles, 12T/13T/16T, BPW/FUWA/HUAJING brand |
| Landing Gear | JOST (D200T)or CHINA BRAND 28T |
| King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension/Germany or America type /Air Suspension |
| Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tanks. |
| Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
| Tire | 12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
| ABS | Optional |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Accessories | One standard tool box |
| Shipping Terms | By Bulk Cargo ,RORO |
