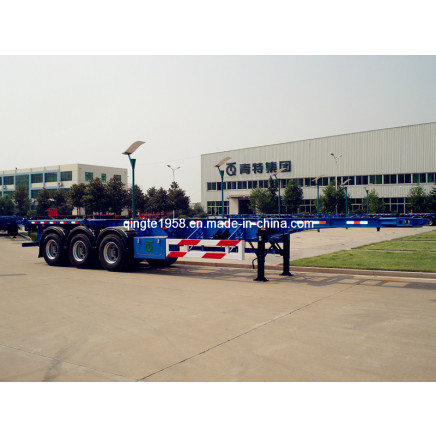

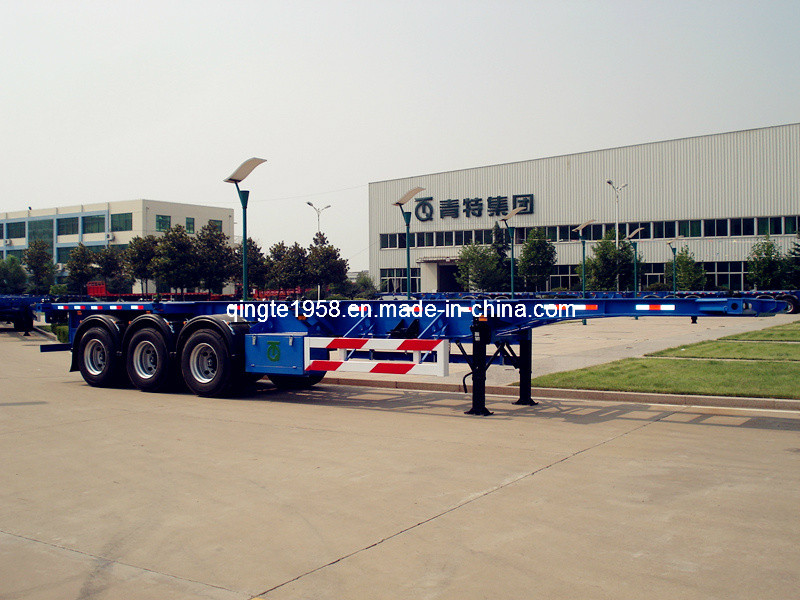

Container Transportation Semi Trailer (QDT9400TJZG)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 53000/ Piece

Price:US $53000.0 / Piece

Trade Terms: FOB, CFR, CIF, DDP, DAP, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Jan 30, 2015 To Apr 30, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QDT9400TJZG

Type:Semi-Trailer

Model:Qdt9400tjzg

Number of Axles:3

Curb Weight (Kg):4500

Loading Capacity (Kg):33000

Dimension (Mm):12305X2460X1566

Wheel Specification:11.00-20 14pr, 11.00r20 12pr

Wheel Track (Mm):1820/1820/1820

Material:Steel

Scale:Heavy Duty

Certification:CE, ISO/Ts16949, SGS

Export Markets:Global

Additional Info.

Trademark:Qingte, OEM

Packing:Assembly

Standard:SGS

Origin:Qingdao, Shandong, China

HS Code:8716

Production Capacity:12, 000/Year

Product Description

Container Transportation Semi-Trailer (QDT9400TJZG)

Curb Weight (kg): 4500
Loading Capacity (kg): 33000
Gross Weight (kg): 39600
Dimension (mm): 12305x2480x1636
Wheel Base (mm): 7000+1320+1320
Overhang(Front/Rear) (mm): -/1675
Wheel Specification: 11.00-20 14PR,
11.00R20 12PR
Wheel Track (mm): 1820/1820/1820
Approach Angle/Departure Angle (°): -/17
Plate Spring Quantity: -/7/7

Container Transportation Semi Trailer (QDT9400TJZG)

Model	QDT9400TJZG
Tare Weight (kg)	6600
Loading Capacity (kg)	33000
Gross Weight (kg)	39600
Dimension (mm)	12305x2480x1636
Wheel Base (mm)	7000+1320+1320
Overhang(Front/Rear) (mm)	-/1675
Wheel Specification	11.00-20 14PR, 11.00R20 12PR
Wheel Track (mm)	1820/1820/1820
Approach Angle/Departure Angle (°)	-/17
Plate Spring Quantity	7/7/7
