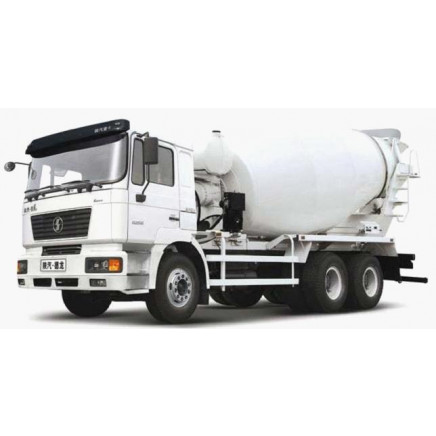

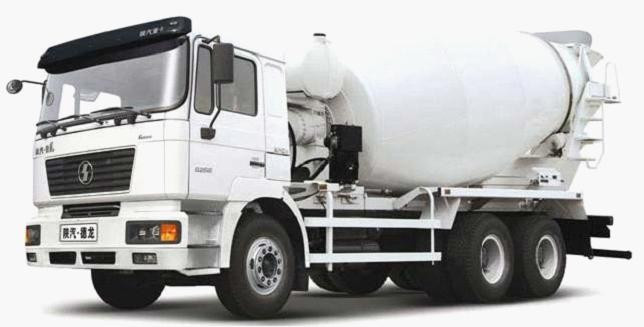

Concrete Mixing Truck and Concrete Mixer with 12cbm Concrete Mixer Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CIF

Payment Terms:L/C, T/T

Trademark:D'long(Shaanxi)

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:SX5254GJBJR334

Export Markets:Global

Additional Info.

Trademark:D?long(Shaanxi)

Standard:Euro II & III

Production Capacity:30000 units/year

Product Description

Chassis: Shanxi automobile
Cabin Features: MAN F2000 widened and lengthened flat-roof cabin

Engine brand: WEICHAI
Model: WD12.336 EURII
Type: Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling
Displacement: 11.596L
Engine output: 336HP @2200 rpm
Max. Torque: 1350 NM @1300-1600rpm
Bore: 126mm x 155mm
Specific fuel consumption: 195g/kwh

Transmission (gear box): Fuller 12 speeds (12JS160T)
Clutch: D430 Diaphragm type
Steering: ZF technology Hydraulic power steering

Front axle: Steyr 6.5ton
Rear axle: Steyr strengthened axle 13ton (punching-welding axle housing, double
Reduction driving axle, inter-wheel differential and differential lock)

Fuel tank: 380L, lockable
Tire: 12.00-20 Bias tire(Rim: 8.5-20)
No. Tyre: 10+1 spare
Kerb mass: 11170kg
Approach angle(° ): 20
Departure angle(° ): 19
Front overhang(mm): 1525
Rear overhang(mm): 1785
Max. Speed(km/h): 77
Wheel base(mm): 4000+1350
Dimension(mm): 9345*2500*3774

Discharged remain ratio: <0.5%Hydraulic pump and motor: EATON 6423(America)Decelerator: BONFIGLIOLI Decelerator 580Features:
Crank chute operation
High pressure water jets, with air pressure supply
Rod manipulation
Radiator made in China
