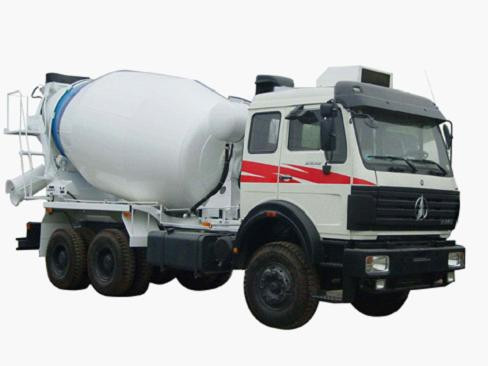

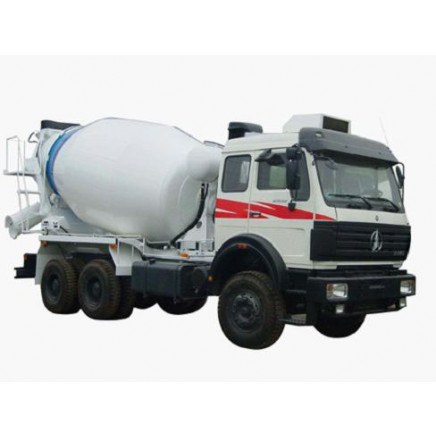

Concrete Mixer 10m3 6x4 336HP Mixing Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CIF

Payment Terms:L/C, T/T

Export Markets:Global

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Export Markets:Global

Product Description

Option drive type: 6x4
Chassis: Benz chassis
Cabin Features: Benz, long cabin, flat roof, one sleeper.

Engine brand: Steyr (Weichai)
Model: WP10.340E32 EURIII EGR
Type: Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling
Displacement: 11.596L
Engine output: 340HP @2200 rpm

Transmission (gear box): 9T-160
Clutch: D430 Diaphragm type
Steering: TAS85

Front axle: Benz front axle
Rear axle: Benz strengthened axle (punching-welding axle housing, double
Reduction driving axle, inter-wheel differential and differential lock)
No. Of axle: 3
Spring: 10/13
Fuel tank: 300L
Tire: 12.00-20 bias tire
No. Tyre: 10+1 spare
Rim: 8.5-20
Kerb mass: 13785kg
Approach angle(° ): 23
Departure angle(° ): 20
Front overhang(mm): 1515
Rear overhang(mm): 2640
Front/rear track(mm): 1995/1800, 1800
Max. Speed(km/h): 90
Wheel base(mm): 3800+1450

Dimension(mm): 9405*2500*3980

Body(mixer, drum):
Capacity: 10CBM
Water Tank: 450L
Discharged remain ratio: <0.5%
Hydraulic pump and motor: EATON (America)
Decelerator: BONFIGLIOLI Decelerator.
