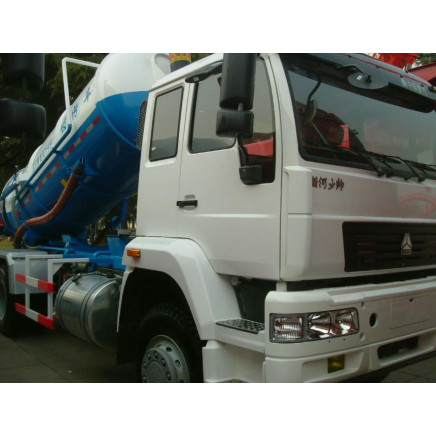

Concret Mixer Truck & Cement Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Production Capacity:50000unit/year

Transmission Type:Manual

Condition:New

Power:Diesel

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Transmission Type:Manual

Condition:New

Power:Diesel

Truck Type:Dump Truck

Tire Design:Radial

Seats:?5

Tire Type:Solid Tire

Additional Info.

Origin:China

Production Capacity:50000unit/year

Product Description

Concret Truck& Cement Truck & Heavy Truck
Quality heavy truck designed from military manufacturer.
reliable quality with competitive price.

POWER Engine: WEICHAI, CUMMINS, MAN
GEAR BOX: EATON FULLER, FAST
CABIN: STEYER, MAN(F2000, 3000)
EMISSION: EURO 2, 3, 4, 5

STEYER, MAN, BENZ design platform. INTERNATIONAL QUALITY STANDARD
Cabin				air deflector,air-condition ,single or double sleeper, USB application, electric window lifter,GPRS management system. MAN/STEYER cabin
Drive type				Left hand / right hand, 4x2,6x2,6x4,8x4,6x6.
Engine : WEICHA I(WP series ,WD series) CUMMINS series:
Type				Diesel 4-stroke direct injection engine, 6-cylinder in line with water cooling, turbo-charging& inter cooling.
Number of cylinder				Inline six-cylinder		BOSCH oil pump
Displacement				5.762L, 11.596L
Emission				Euro 2,3,4
Max torque (kg.m/rpm)				1 070NM-2000NM@1400-1600rpm
Cl u tch
Type				? 430 diaphragm construction
				Single-plate dry cluth,mechanically operating with air assisted
Gear box ,Transmission
Model				FAST FULLER(recommendation), ZF 8098,
Type				9,10,12,16 speeds AS ( Automatic Synchronizer )
Gear box				Mechanical form , Remote control device
Front axle
Type				STYER / HANDE,
Permissble load			Kg /axle	65 00 kg,7500kg
Rear driving axle
Model				STYER / HANDE driving axle
Type				Pressed axle housing,single/double reduction with planetary wheel reduction.
Permissble load		Kg /axle		1 3000kg,16 000 kg
Track				1800/1860
Transmission ratio				4.42 4.80 5.73 6.72 7.49 8.40 9.94
Tyre :
				Bias/Radial TYRE 315/80R22.5 / 12.00R20
Braking sytstem
Brake					ABS,ASR
Service brake					Dual circuit pneumatic brake
Parking brake					Spring energy,compressed air operating on rear wheels
Hanging
Type	FR/RR				Spring plate,Lug/Multi-leaf spring
Electric equipment
Operating voltage					24v,negative grounded
Battery voltage/capacity					12v/135A,165A
Turning technology					ZF8098 hydraulic pressure steering system
Oil Tank : 38 0L -1000L
Dimension of King pin(5th wheel): 50(2’’),90(3.5’’).
Other option: PTO, more than 20 colors’ surface, strengthen leaf spring.mainly as your requests.
