Advantages:
1, good fire risistance;
2, good temp-keeping and heat insulation;
3, convenient/flexible installation;
4, waterproof;
5, load-bearing capacity.
Introduction:
Rockwool sandwiched panel is composed of 2 layers of waterproof colored steel and jetted the hard forms of polyurethane between 2 layers which features fireproof materials.
It is suitable for the various roof and walls referring to the large-size factory; Storage; Exibition halls, gymnasiums, freezing stores, purification workplace, etc.
Olor steel foam sandwich panel / EPS sandwich panel / PU sandwich panel / rockwool sandwich panel / Paper honeycomb sandwich panel
Product Description
1. There are two kinds of sandwich panels: One used for roof and one used for wall.

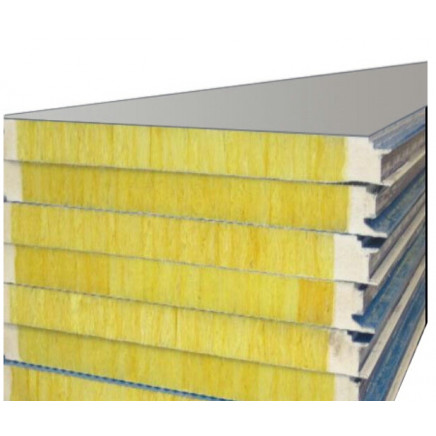

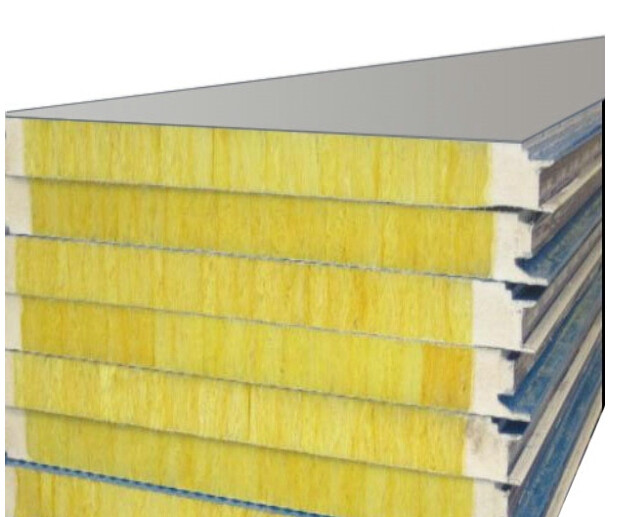

2. Both kinds of the rock wool sandwich panels consist of three layers: Top steel sheet, rock wool interlayer and back steel sheet. And there are two steel belts in both sides of the panel.
Rock wool sandwich panel
1. Factory
2. For wall/roof
3. Color: RAL Standard
4. ISO9001&ISO14001
Rock wool sandwich panel
Features:
1. Effective width of rock wool sandwich board: 950/1150mm
2. Thickness for rockwool: 50-150mm, normal size is: 50/75/100mm
3. Thickness for steel sheet: 0.3-0.6mm (double faces)
4. Length: According to your request, less than 11800mm suitable for the transport
5. Rockwool density: 100-150kg/m3
6. Character of rock wool sandwich board:
1). Fireproof, heat insulation, water resistant, noise-absorbing, cheap in price.
2). Fire resistance rating: Grade A
Application of rock wool sandwich panel:
1. Temporary offices, dormitories, warehouse and workshop in construction sites and in municipal works and residential resettlements
2. Temporary commercial housings in the cities, such as exhibition halls, shopping centers, offices and other housings for exhibition and sports
3. Holiday inns or container house, leisure villas and holiday homes in tourist spots.
4. Temporary houses used in large-scale fieldwork, such as exploiting energy sources and making tunnels, warehouse.
5. Temporary houses in military field and temporary housings in earthquake, fire, hurricane and flood disaster-affected areas.
6. Large area suspended ceiling, separation of steel structure workshop, suspended ceiling, wall body and air purification room.
