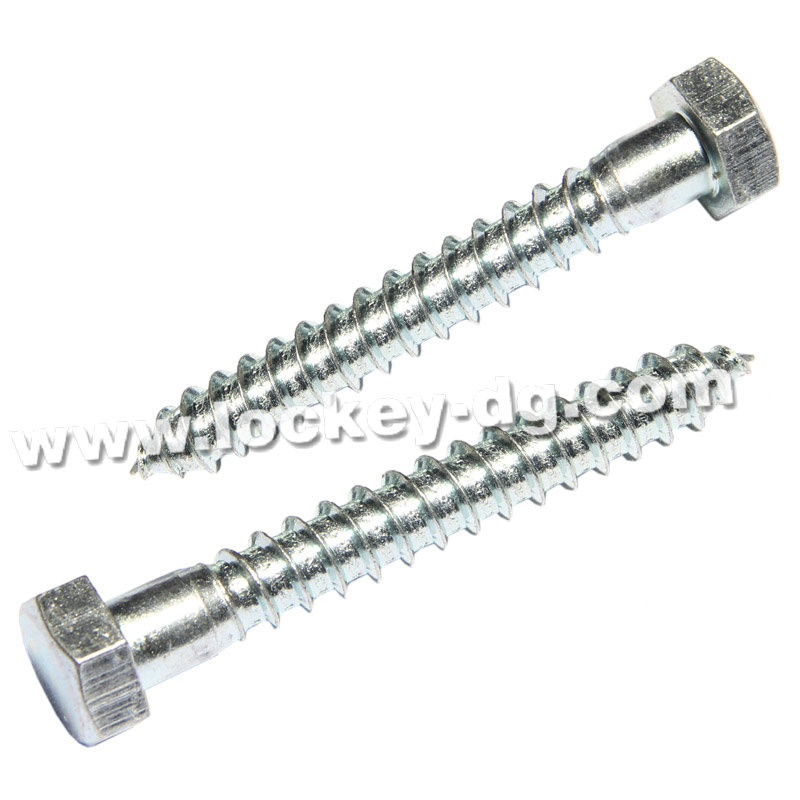

Coach Screw Hex Lag Screw Hex Wood Screw

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$0.008 - $0.009 / Piece

Min. Order (Pieces)	Unit Price
50000.0	US $ 0.009/ Piece
1000000.0	US $ 0.008/ Piece

Trade Terms: FOB, CFR, CIF, DAT

Payment Terms: L/C, T/T

Price Valid Time:From Jun 08, 2015 To Sep 08, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LKIG

Material:Carbon Steel

Type:Hexagon Head

Groove:Slotted, Cross, Pozi

Connection:Tap

Head Style:Square Head, Hex Head, Flat Head

Standard:DIN, GB, ANSI, BSW

Grade:According to Standard

Sample:Free

Market:Global

Additional Info.

Trademark:LK

Packing:Bulk Packing, Small box packing

Standard:DIN, ANSI, ISO and Non-Standard

Origin:China

HS Code:7318

Production Capacity:500 Ton/Month

Product Description

Coach Screw Hex Lag Screw Hex Wood Screw
1> Description: Coach Screw Hex Lag Screw Hex Wood Screw
2> Material: Steel, stainless steel, Brass
3> Surface: Zinc plated...Passivated
4> Size: 3mm to 8mm, and #4 to #24
5> Length: Up to 150mm
6> Properties: According to standard
7> Packing: Bulk packing, small box packing and according to customer's requested then in pallet.

Technical Delivery Conditions
Material		Steel	Stainless steel	Non-ferrous metal
General requirements		DIN ISO 8992
Thread and Tolerance		DIN 7998
Material	Material	Steel (According to Manufacture)	A2, A4	Brass


	Standard	DIN EN 10087	DIN EN 10088-3	DIN EN 12166
Limit deviations geometrical tolerance	Product grade	C
	Standard	DIN EN ISO 4759-1
Surface finish		As processed	Passivation	Blank
		DIN EN ISO 26157-1 shall apply with regard to permissible surface discontinuities
		DIN EN ISO 4042 shall apply with regard to electropiating
		DIN EN ISO 10684 shall apply with regard to hot dip galvanize
		DIN EN ISO 16048 shall apply with regard to passivation
		If different electroplating or other surface protection is desired, this shall be agreed upon at the time of ordering
Acceptance inspection		DIN EN ISO 3269 shall apply with regard to acceptance inspection

The main products for wood screw include: Square Head Wood Screw, Hex Head Wood Screw, Flat Head Wood Screw, Pan Head Wood Screw
The other product of fastener include Hex. Lag bolt(Coach screw), Hex. Bolt, Carriage bolts, Hex. Socket cap screw, Allen Screw, Hex. Flange bolt, Thread Rod, Square Bolt, Hex. Bolt with nuts and some special bolt per the drawing from the cilent.

Please do not hesitate to contact us If you are interesting our products.
