Clw LPG 50cbm Liquid Ammonia Semi Trailer with Three Axles

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Clw LPG 50cbm Liquid Ammonia Semi Trailer with Three Axles

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 32890.0-35890.0/ Piece

Price:$32890.0 - $35890.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Price Valid Time:From Jun 12, 2015 To Jul 13, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW Trailer

Type:Axle

Load Capacity:15T

Certification:ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949, SGS

Wheel Base:7000-8000mm

Tread:1820mm

Grade:Heavy Duty

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Double

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Cross Type

Towing Pin Diameter:50mm

Differential Gear Type:Anti-slip Type

Independent Suspension Type:Candle Type

Connecting Type:Semi-trailer

Shape:Flatbed

Axle Number:3

Tire Number:6

Self-dumping:Not Self-dumping

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Steel

Condition:New

Discripution:Clw LPG 50cbm Liquid Ammonia Semi Trailer with Thr

Function:Storage Pressure Vessel

After-Sales Service Provided:Overseas Third-Party

Weight:5ton, 10ton, 20ton, 30ton, 40ton, 50ton

Volume:50000L 50cbm 50m3 80cbm 100m3

Loading Medium:LPG Propane, Ammonia Propylene Isobutane

Axle:BPW, Fuwa Brand

Tire:11r22.5 12r22.5

Accessories:Safety Valve Tool Box Extinguisherpressure Meter

Pressure Level:Medium Pressure (1.6MPa?p<10.0MPa)

Export Markets:Global

Additional Info.

Trademark:CLW Brand

Packing:Naked Package and Waxed Before on Board

Standard:CCC, ISO 9001, TS

Origin:Hubei

HS Code:87053010

Production Capacity:800 Unit/Month

Product Description

Propane gas tank tralier

56m3 Propane gas tank tralier is produced by Chengli as one of our LPG tank series. In fact, Chengli produce LPG gas trailer with tank volume from 40-60 cube. Following is our 56m3 propane gas tank trailer main reference information

LPG Tank Semi Trailer is also called LPG Semi -trailer truck , LPG semitrailer transport truck, is widely used in transporting kinds of LPG. It has large loading quality , safe, stable, etc features

Production notes:
1), Manufacturer, more than 10yrs professional experience.
2), Certificate ISO9001,3C, ASME
3),High quality, low price
4),Loading LPG volume 58.5m3
5),Small order can be accepted.Any color and logo will be available
6),Very Safety Control System: float liquid indicator, built-in safety valve, emergency cut-off valve, ball valve and etc.
7)Products can be custom-made according to your design, or diversified needs.

Features of 56m3 Propane gas tank tralier
the tank is produced with advanced butt welding technique and under radioactivity test to ensue it's without leakge to keep pressure.
The tank is equiped with sun visor on top to keep the temperature inside the tank, it's very useful for the regions around equator .
The LPG gas trailer with JOST leg with Germany technology which is reliable quality.
SINO-GERANY joint venture brand BPW axle with ABS, the suspension could be steel spring or air cusion type.

FAQ
1.Payment:
30% deposit after order confirmation, 70% balance should be paid before delivery. All by T/T, L/C.
2.Delivery time:
25 working days after payment is received.

Packaging & Shipping:

1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.

Our warranty:

1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.

Below specification is just for your reference. More information of our LPG Tank trailer.please feel free to contact with Ms. Kitty Zhen. We will customize the truck according to your requirement.

Sales Manager: Kitty Zhen
Mob.: 0086-133 4990 9442

Technical Parameter of 3 axles CLW LPG Tank Semi Trailer :

Factory Direct Sell Heavy Duty Tri-axle LPG Tank Trailer 58cbm LPG LPG transport trailer 58000L ASME standard LPG Tanker Trailer for propane
Tare Weight	11500KGS
Pay Load	25000KGS
Overall Length	11400mm
Overall Width	2480mm

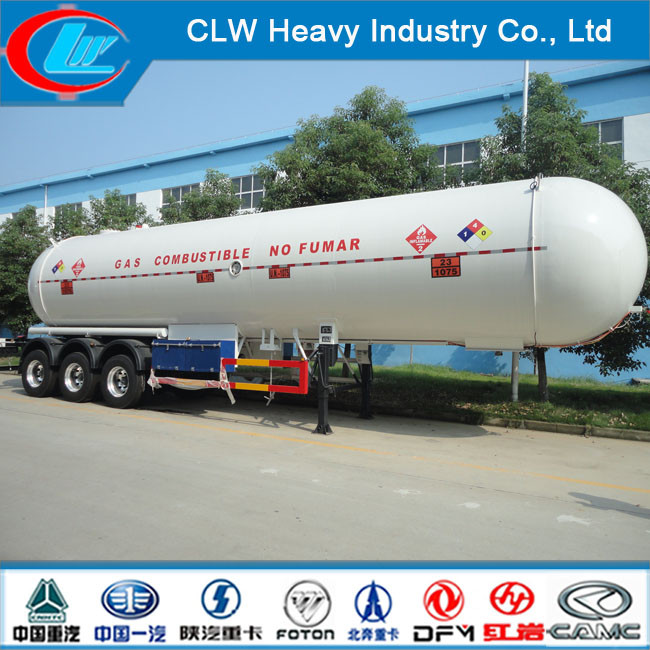

Photo for reference, finial product can be made according to exact requirements
Tank
Transporting Media		Dimethylmethane, Liquid Ammonia, Liquid SO2, LPG,Butane
Shape		Round Shape
Total Volume(m3)		56CBM
Tanker Body Steel Sheet		Q345R/11.5mm
End plate		Q345R/11.5mm, by punching
Parts for Tank
Manhole cover		3 sets of 500mm/Q345R manhole fixed on top of Tank, with breather valve
Unloading valve		2-3 sets of DN80 fixed at button of Tank
Pipeline at button of tank		4"seamless steel tube/Q345
Labeling system		Oil Type Indication
Anti-static electricity system		pulling, wire carrier, sheet copper (6 sheet-standard layout)
Other Parts
Ladder		1 unit at front of Tank
Guard on top of Tank		Zinc galvanized -guard-net
Oil hose box		Circular single hole tube, 1 unit on each side
Oil hose		2 unit, 3" x 6m size in black rubber
Side guard		cross bar-structure
Rear button guard		Fixed type
Work tank deck		Box type
Fire extinguisher box		2 unit at the back of each side
Mud guard		Steel structure in trapezoid form
Lights and wire		24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp
Chassis
Main Beams		Heavy duty and extra durability designed; Opting for high tensile steel Q345R,welded by automatic Submerged-Arc processes
Axle		3 axle
		BPW brand FUWA brand
Landing Gear		JOST Two-speed, manual operating, heavy duty landing gear
King Pin		JOST 2"standard bolt-in king pin
Suspension		German design mechanical suspension
Pneumatic Braking System		WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim		8.25R22.5 wheel rim
Tire		11R22.5 tubeless tire with one spare tire
Painting		Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final pain

Type: Cooperation group with special automobile as its main business with more than 10 years history
Corporation Scale: More than 3000 employees with 1000 acres factory, total asset 1 billion.

Productivity: 10,0000 sets of trucks per year including water truck, dump truck, fuel truck, refrigerator truck, concrete mixer truck, semi-trailers, LPG truck, truck mounted crane, garbage truck, aerial platform truck, LPG tank, LED advertising truck, van truck, road sweeper truck and other special trucks

Company Information
Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl ether, methanol, butadiene, butane, ethylene oxide, methylamine, etc. In low pressure liquefied gases at room temperature; Volume from 10 cubic meters --- 100 cubic optional.
Chengli pressure components of the productIion materials, size and weld quality, operation quality, installation quality, safety valves and shut off valves devices and accessories within the strict qualification, inspection, test.
The tank materials on physical and chemical tests such as: Mechanical properties and chemical composition.
The tank welded joints, welding line, tank head, the pressure of the geometric location of each component through rigorous X-ray non-destructive testing and magnetic particle testing inspection
Factory scene

Our leading varieties include more than 100 types of trucks and related products such as water tank truck, fecal suction truck, garbage truck, refuse compactor, sewage suction truck, fuel tank, high-altitude operation truck, truck with crane, dump truck, instructional truck, van truck, semi-trailer, fire engine, refrigerator truck, water wagon, tractor, high-altitude water truck, bulk cement truck, chemical liquid truck, concrete mixer truck, and others. Our cooperation partners including Sinotruk, FAW, Dongfeng , FOTON, Schacman, Beiben, Hongyan and etc.

Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler tank Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Exporting
Chengli special automobile Co., Ltd is an automobile manufacturer , the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks' entrance to the international market.
1.58 sets of military water trucks for national defense
2. Dump trucks in support of the United Nations
3. Fuel tank trucks exported to Sudan
4.78 sets of water truck exported to Nigeria
5. Dump trucks exported to the Ivory Coast, Kazakhstan
6.108sets of trucks exported to Libya
7.36 sets of dump trucks exported to North America
8.218 sets of garbage trucks exported to West Africa
9.60sets of water trucks exported to Congo
10. Garbage trucks exported to Vietnam
11.98 sets of dump trucks exported to Ghana
We are confident and committed to providing our customers with the best qualityand service all the time

If you are interested in our trucks, pls contact me, I will send our best quotation to you!

Contact information

Sale Manager: Kitty Zhen
Tel/Fax : 00862783796298
Cell:0086-13872880590/13349909442
Website:truckcl.en.alibaba.com

we sincerely welcome you to visit our factory and provide your precious suggestion for us!
