CKD Truck Body Kits

More Views

CKD Truck Body Kits

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
5.0	US $ 1500/ Piece

Price:US $1500.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: T/T

Price Valid Time:From Jan 03, 2015 To Jul 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HXFH-CKD01

Power:Diesel

CKD Truck Body Kits:Truck Body Parts

Export Markets:Global

Additional Info.

Packing:Bare Loaded

Origin:Qingdao, China

Product Description

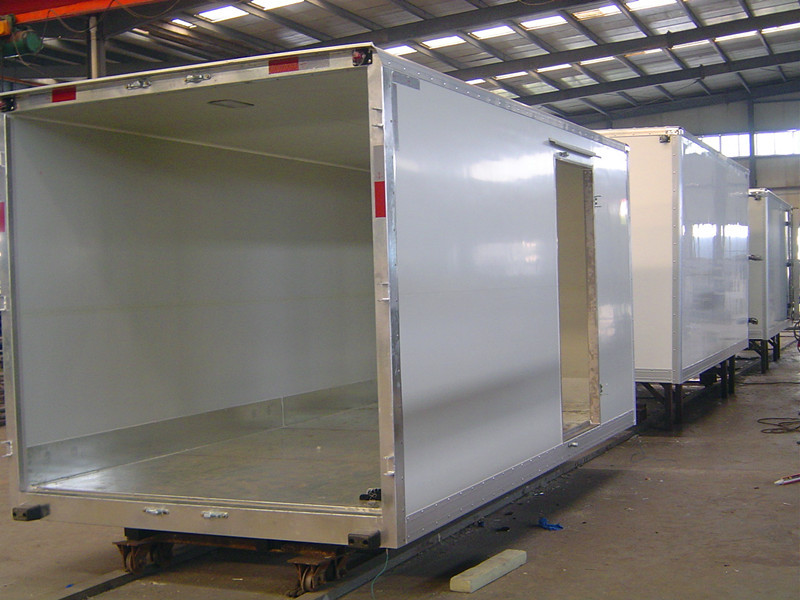

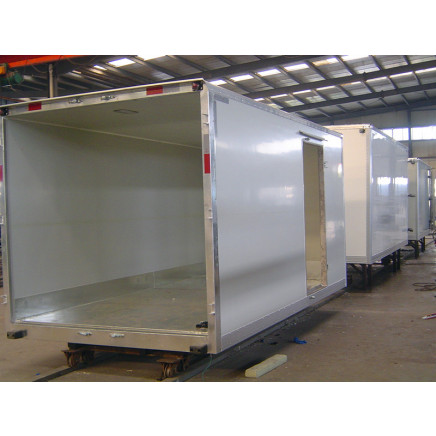

Refrigerated and Insulated Truck Body
* Material: FRP EPS, FRP PU, FRP Honeycomb,Etc
Refrigerated and Insulated Truck Body Performance:
1. Outer/inner skin is FRP panel
2. Polyurethane insulated ,PU foam density 42-45kg/m3
3. 304 stainless steel locks ,hinges,door frame, wrap angle
4. Aluminium alloy Edge Protector
5. EPDM rubber door seal
6. Thickness: 62mm ,82mm,102mm or other special demands, body size as you demanded
7. Side door is optional
8. Light in weight: 40% lighter than metal body.
9. Better insulation: K value less than 0.3w/m2k..
10. High in strength and long life: 5 times longer than metal body.
11. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
12. Easy to be assembled and repaired at site.
* Products can be shipped in CBU (completely built up) and CKD (completely knock down) type.
* Temperature range,-18�C--+25�C,special request reach to -40�C
* The Thickness:60mm,80mm,100mm. With the dimensions, the truck body can be the best Refrigeration Effect. We can also change the thickness by your requirements. And the thickness range is from 25mm to 150mm
CKD Truck Body Kits
