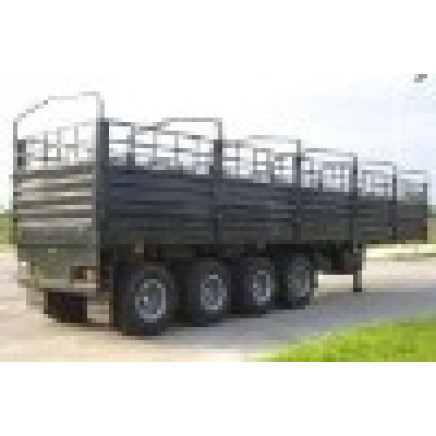

Cimc Semi Trailer/Multi-Functional Cargo Lorry Truck Semi Trailer

More Views

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 25000/ Piece

Price:US $25000.0 / Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Aug 02, 2012 To Feb 28, 2013

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Login or Signup to View Links.

Description

Type:Semi-Trailer

Material:Steel

Scale:Medium Duty

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia

Production Capacity:2000

Brand new trailers
1. Tell me what you like.
2. Confirmation
3. Price discussing
4. Contract
5. Deposit
6. Delivering
7. Others

40' TRI AXLE FLATBED SEMI TRAILER STANDARD MODEL
FOB CHINA(QINGDAO):$15100.00/Unit
Length	13000mm
Width	2566mm
Height	4000mm
Pay load	<50 tons
Dead weight	approx.9000kgs
RUNNING GEAR
Suspension	doll type
Fasten gear	12 pieces each side
side door	3 pairs
rear door	1 pair
Wheels	double-wheels
Tires	11.00R20 18PR
Axles	FUWA 13-TON
Brakes	drum brake system
ABS System	be optional
Valve	WABCO relay emergency valve
Brake Chambers	dual air brake system,2X40L air pressure tanks:
Springs	leaf spring 8/8/8-piece
UNDERFRAME
Main Beam	470mm deep X 6mm webweld “I”sectionmain beam,the thicknessof top flange is 14mm the bottom flange is 16mm
Cross beam	10#"U"shape, Mild Alloy ,Q235mpa
King pin	90mm JOST brand
Landing Gear	JOST D200T 28ton
Mud Flaps	6sets
Bumper	1 set per side
Floor	3mm
Appendix	1tool box
	2 Spare tyre carriers without trye
ELECTRICAL & PAINT
Lights & Reflectors	(ALL LED)Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring	24V, 6 lines
Air/Elec. Connector	ISO standard air connector,
	24V 7 pin plug socket
Paint	sand blasting before painting
	2 coat of anticorrosive primer
	2 coats of finish urethane paint
	Color as per request

FOB .CHINA		$15100.00 Qingdao,China
SHIPMENT		To order
Payment:		30% deposit by T.T,70% blance before shipment by T.T or L/C
Delivery:		30 Days
Offer valid period:		2010.10.1--2010.12.31

Additional Information
