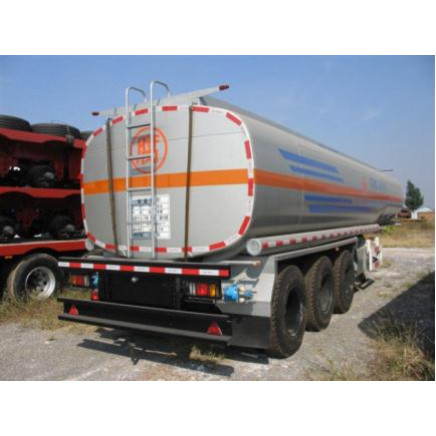

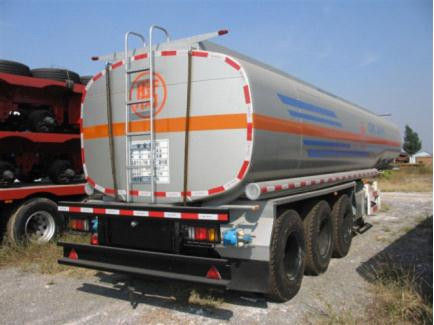

CIMC GLYCOL SEMITRAILER tank truck 37cbm

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 20000.0-25000.0/

Price:$20000.0 - $25000.0 / Unit

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Dec 05, 2012 To Mar 05, 2013

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZJV9404GHYSD

Additional Info.

Trademark:CIMC

Packing:Nude Packing

Standard:ISO, CCC

Origin:China(Mainland)

Production Capacity:30000 Units Per Year

Product Description

Glycol Tank:
Cubic meters:37M3
1.Made of carbon steel (Q235A)
2.Thickness of tank(mm):5mm,sealing head:6mm,
3.Color of surface will be painted as customers' requirement.
4.Inside of tank is clean, well coated, antiseptic.
5.Loading connection from side of tank.
6.Working liquid level gauge.
7.Pneumatic operated sea cock and valve to avoid overflow.
8.Ruler to manually measure from top of tank.
9.3 separate compartments with individual top cover.
10.Electric pump to unload.
11.Earthing provision.

Skeletal Chassis:
Overall dimension(LxWxH):11500x2500x3500mm
Dimension of tank(LxWxH): 10900x2450x1700mm
Wheel base(mm):5900+1310+1310
Overhang(Front/Rear):1480/1680
Track wheel(mm):1840
Tare weight(kg):8990
Total mass(kg):39990
1. Kin pin : bolted 50mm(2'')
2. Axle: Tri-13ton FW axle (4tyres per axle)
3. WABCO double circuits air brake + ABS , 4 air cylinder in service.
4. suspension system: heavy duty leaf spring 10/10/10
5. Tire: TRIANGLE brand, Radial 12R22.5, total 12 tire, 2 tyre holder
6. WITH ABS

Others:
1. Electrical :24V
2. Side guard: steel material side protection.
3. Extinguisher: dry power fire extinguisher of 8kg capacity(2).
4. Tool box: one set in rear of tank.
5. Reflective Marking, Warning & Safety Signs, etc.
