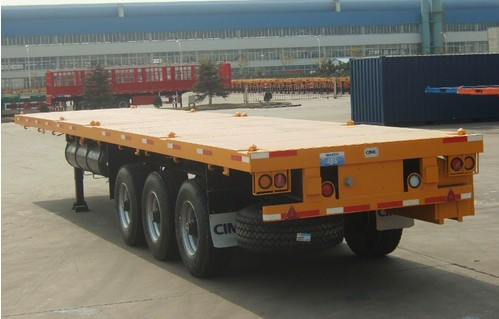

Cimc Container Semitrailer 3 Axle Flat Bed Semi-Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 15000.0-20000.0/ Piece

Price:$15000.0 - $20000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jun 29, 2015 To Sep 29, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZJV9380TJZP

Type:Semi-Trailer

Load Capacity:50t

Certification:ISO

Wheel Base:9000-10000mm

Grade:Heavy Duty

Towing Pin Material:Carbon Steel

Universal Joint Type:Flexible Universal Joint

Towing Pin Diameter:90mm

Connecting Type:Semi-trailer

Shape:Flatbed

Axle Number:2

Self-dumping:Not Self-dumping

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Steel

Scale:Heavy Duty

Loading Capacity:40t

Export Markets:Global

Additional Info.

Trademark:CIMC

Packing:Nude Packing

Standard:BV, SGS

Origin:China

Production Capacity:3500 Pieces Per Month

Product Description

MODEL ZJV9380TJZP
Description of vehicle 40'
Axle 3-axle 13ton FUWA
Or CIMC Brand
Outrigger JOSTZ20 Or Holland/FW/TSU
Gross weight (kg) 37680
Tare weight (kg) 7200
Payload (kg) 30480
External dimension (L*W*H) mm 12450x2498x1510

Wheel base(mm) 7190+1310+1310
Track space(mm) /1830
Tires 11.00R20 tires Rim: 8.0R20
No of tire 12
Leaf spring 7/7/7, 8/8/8
No of Lock 12
The rear axle location(mm) 1640

King pin location(mm) 1000
Leave angle(° ) 18
The fifth wheel load(kg) 14000
BRAKE SYSTEM: ABS SYSTEM Can be optional
Public notice 107
Trail pin 2" (3.5" canbe optioned)
CHASSIS Designed to carry 1 x 40 ft, or 2 x 20 ft, or dry cargoes. Provided with 12 Nos. Retractable type Multilock twist locks
Main Beams 500mm height, Low Alloy (Q345 ) by automatic submerged
Arc welding; Top Flange 14mm, Bottom Flange 16mm, Middle Flange 6mm.
Load Platform 3mm thickness anti-slip floor.
