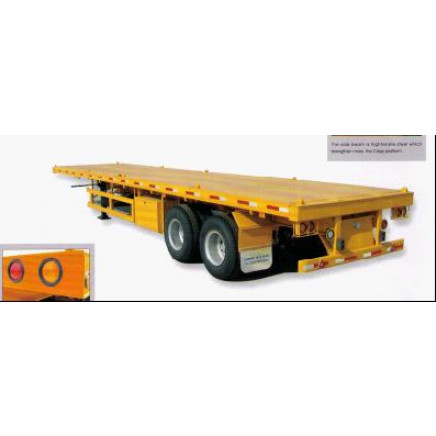

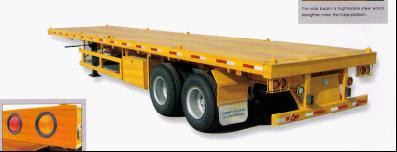

CIMC Container Semi-Trailer 2axles Container Trailer/3axles Flatbed Container Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CIF

Payment Terms:L/C, T/T

Material:Steel

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Material:Steel

Scale:Heavy Duty

Components:Trailer Frame

Load Capacity:50T

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Product Description

MODEL ZJV9353TJZ
Description of vehicle 40'
Axle 2-axle 13ton FUWA
Or CIMC Brand
Outrigger JOST/EAGLE-Z20 Or Holland / FW

Gross weight (kg) 35000
Tare weight (kg) 4520
Payload (kg) 30480
External dimension (L*W*H) mm 12355x2490x1480

Wheel base(mm) 7900x1310
Track space(mm) /1830
Tires 11.00R20-16PR Rim: 8.0R20
No of tire 8
No of lock 12
Leaf spring 7/7, 8/8

The rear axle location(mm) 1957
King pin location(mm) 1170
Leave angle(° ) 15
The fifth wheel load(kg) 17010
BRAKE SYSTEM: ABS SYSTEM Can be optional
Public notice 109
Trail pin 2" (3.5" canbe optioned)
ACCESSORIES TOOL BOX (BOX ONLY)---PROVIDED WITH THE TRAILER
TWO SPARE WHEEL HOLDER(WINCH), BUT NO SPARE TYRES AND WHEELS.
