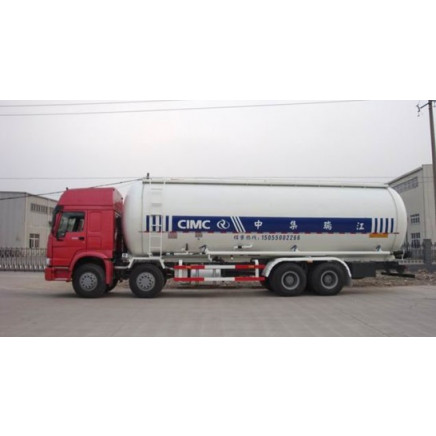

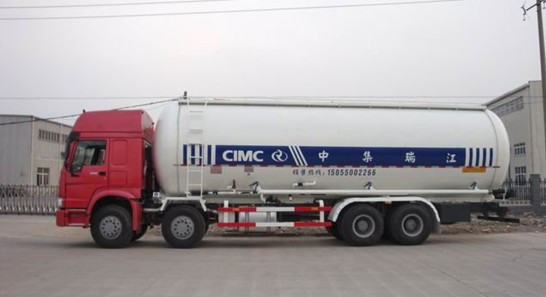

Cimc 8X4 LHD/Rhd Drive Heavy Cement Tank Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 65470/ Piece

Price:US $65470.0 / Piece

Trade Terms: FOB, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Jan 14, 2015 To Apr 14, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VL5311

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 2

Tank Volume:10001-15000L

Drive Wheel:8в4

Seats:?5

Horsepower:251-350hp

Engine Capacity:6-8L

Storage:Oil

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Tubeless

Condition:New

Fuel:Diesel

Certification:ISO9000, CCC

Engine Type:4 Stroke

Volume:10000-20000L

Type:Tanker

Payload:30t

Export Markets:Global

Additional Info.

Trademark:Veldlion

Packing:Nude

Production Capacity:300 Unit/Month

Product Description

Condition: NewStorage: Cement or other powderDrive Wheel: 6X4
Horsepower: 251 - 350hpTransmission Type: AutomaticFuel Type: Diesel
Tank Volume: < 5000LEngine Capacity: 9726Dimensions (L x W x H) (mm): 11984*2500*3950
Brand Name: HowoPlace of Origin: Anhui China (Mainland)Model Number: WL5310GFLA
Gross Vehicle Weight: 31000driving type: 6*4 or 8*4volume: 20-100 M3

SPECIFICATION AND QUOTATION (WL5310GFLA)
Item			Uint		Parameter
	Overall length		mm		11984
	Overall width		mm		2,500
Dimension	Overall height		mm		3,950
	Wheelspan		mm		4325+1400
	Brand		Sino Truck ,HOWO , 6в4
	Wheel		8.0-20,10 holes steel Disc wheel,13Pcs.
	Tire		12.00-20 , 12Pcs
	Engine		WD615.69 Europe II
Truck	Engine power		247kw (336hp )
	Engine Capacity		9726
	Brake		Air braking
	Max. Speed (Km/h)		90
	Rear two axles		HW1697
Structural weight ratting	Loading capacity		m3			32
	Tare weight		kg			15,000
	Pay load		kg			16,000
	G,V,W,R		kg			31,000
Pneumatic system	Air compressor		9/2 Made in China
	Voltage	24 volt		Side Marker Lamp			Amber
Electrical	Receptacle	7 way		Rear Lamp			Red
	Front Marker Lamp	White		Turn Signal Lamp			Amber
Tank shell			Q235,6mm thickness, and Q345 4mm
Dished ends			Q235,6mm thickness
Pipe material			Carbon steel
Discharging Hose Diameter			4"
Discharging valve			4" butterfly valve
Discharging Hose Length			7,000 mm
Hose quick coupling			4" female quick coupling
Discharging capacity			?1m3/min
Working pressure			0.2 Mpa
Test pressure			0.3 Mpa
Manhole			two
MAX. Horizontal Discharging Distance			5,000 mm
MAX. Vertical Discharging Distance :			15,000 mm
