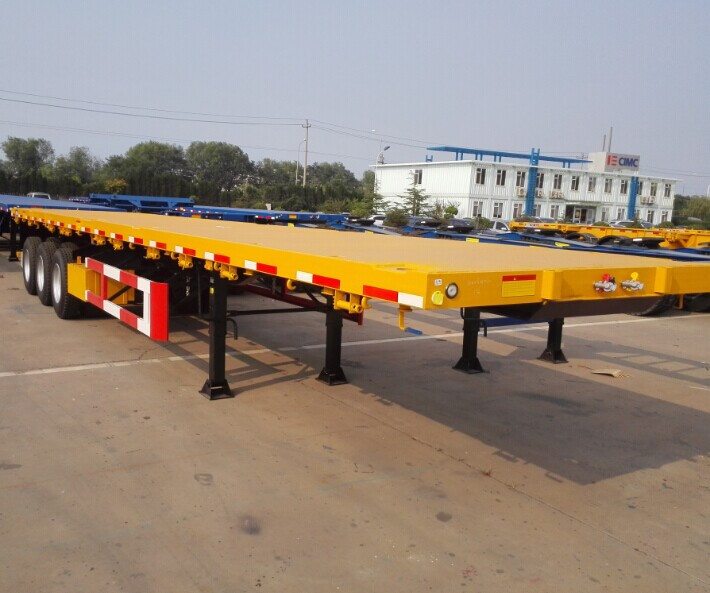

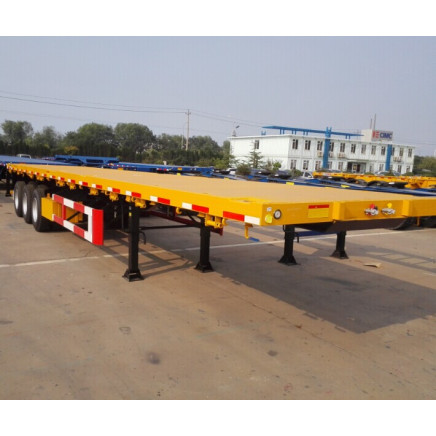

CIMC 40ft container semitrailer flat bed 3 axles

More Views

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 15000/

Price:US $15000.0 / Unit

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Dec 19, 2014 To Jan 24, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Login or Signup to View Links.

Description

Type:Semi-Trailer

Certification:SGS, ISO/TS16949, CCC, ISO

Loading Weight:60t

ABS:With ABS

Axle Number:3

Tire Number:12

Color:Yellow

Condition:New

Brand:Cimc

Payload (Kg):60000kg

Kingpin:3.5"Welded Type

Suspension:Strengthened Suspension for Africa Area

Tire:12.00r20 Radial Tyre, 12PCS

Material:Steel

Scale:Heavy Duty

Components:Trailer Frame

Export Markets:Global

Trademark:CIMC

Packing:Nude Packing

Standard:CCC, ISO

Origin:China(Mainland)

Production Capacity:30000 Units Per Month

CIMC Chinese top brand with top quality
Certificate:CCC, ISO

Dimension(mm)	LWH: 12500X2500X1800(mm)
Axle space(mm)	6950mm+1310mm+1310mm
Tare weight(kg)	8500kgs
Payload (kg)	50000kgs
G.V.W.R.	58800kgs
Landing gear	Linkage type, two speed with sand shoe
Kingpin	3.5"Welded type
Suspension	Strengthened suspension for Africa area
Axle	FUWA axle, 13 ton capacity/set,3pcs
Tire	12.00R20 Radial tyre , 12Pcs,
Rim	8.5-20 ,12 Pcs
Twist lock	12 units
Tool box	1 unit
Spare tire carrier	2 units
Main beam	500,14/6/16
Side beam	16# channel steel ,160mm height
Floor	3mm checked plate
Lights, electrical, accesories	yes, 24 volts,
