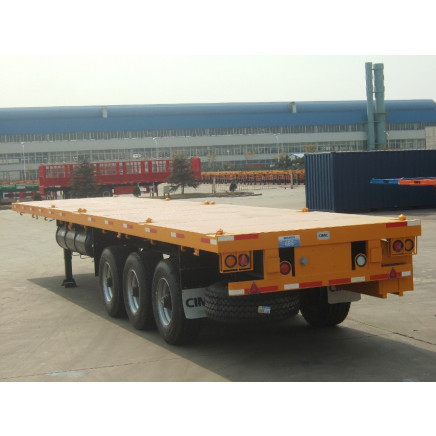

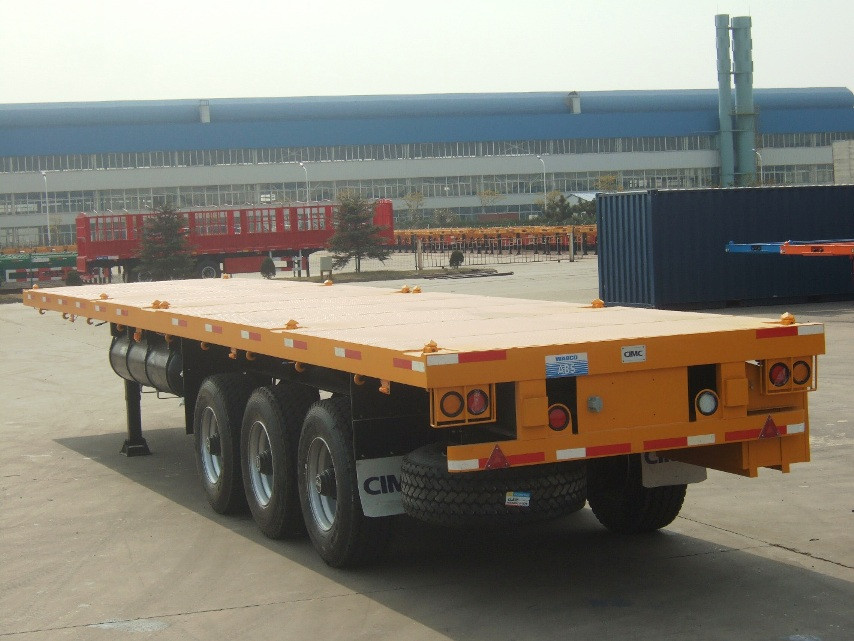

Cimc 40ft Container Semi Trailer with Air Suspention

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 14000/ Piece

Price:US $14000.0 / Piece

Trade Terms: FOB, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Aug 15, 2014 To Dec 31, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CIMC

Type:Towing Pin

Towing Pin Material:Carbon Steel

Impeller Type:Front Semi-open Type

Hook Type:Double

Universal Joint Type:Rigid Universal Joint

Towing Pin Type:Double Spoon Type

Towing Pin Diameter:90mm

Differential Gear Type:Anti-slip Type

Independent Suspension Type:Cross Arm Type

Brand:Cimc

Export Markets:Global

Additional Info.

Trademark:CIMC

Production Capacity:50000unit/Year

Product Description

SHIPMENT: By Vessel
PAYMENT: 30% deposit by T/T before production, 70% balance by T/T before shipment.
DELIVERY TIME: 15 days after receiving your 30% deposit
OFFER VALIDITY: 30 days

Dimension(mm)	LWH: 13600X2500X1800(mm)
Axle space(mm)	6950mm+1310mm+1310mm
Tare weight(kg)	6900kgs
Max. Payload(kg)	50000kgs
G.V.W.R.	57000kgs
Landing gear	Linkage type, two speed with sand shoe
Kingpin	3.5"Welded type
Suspension	Air suspension
Axle	BPW axle, 13 ton capacity/set,3pcs
Tire	425/65R22.5 tubeless tire, 6Pcs,
Twist lock	12 units
Spare tire carrier	2 units
Main beam	500,14/6/16
Side beam	16# channel steel ,160mm height
Floor	3mm checked plate
Lights, electrical, accesories	yes, 24 volts,
