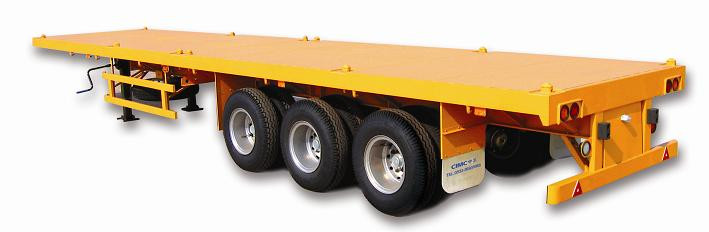

Cimc 3axles 35t 40ft Tcontainer Semitrailer (ST)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 40000/ Piece

Price:US $40000.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Sep 05, 2014 To Jun 30, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ST

Type:Semi-Trailer

Certification:ISO

Loading Weight:25T

ABS:With ABS

Tent Type:Complex

Axle Number:3

Tire Number:12

Color:Yellow

Condition:New

Axle:13ton Fuwa

Size:40ft

Payload:30480kg

Tires:11r20, 12r20 Radial Tires

Trail Pin:2?, 3.5?

Material:Steel

Scale:Heavy Duty

Load Capacity:50t

Export Markets:Global

Additional Info.

Trademark:CIMC

Packing:Nude Packing

Standard:CE, ISO, DOT

Origin:China

HS Code:00000000

Production Capacity:60000units/Year

Product Description

MODEL ZJV9380TJZP
Description of vehicle 40'
Axle 3-axle 13ton FUWA
Or CIMC Brand
Outrigger JOSTZ20 Or Holland/FW/TSU
Gross weight (kg) 37680
Tare weight (kg) 7200
Payload (kg) 30480
External dimension (L*W*H) mm 12450x2498x1510

Wheel base(mm) 7190+1310+1310
Track space(mm) /1830
Tires 11.00R20 tires Rim: 8.0R20
No of tire 12
Leaf spring 7/7/7, 8/8/8
No of Lock 12
The rear axle location(mm) 1640

King pin location(mm) 1000
Leave angle(° ) 18
The fifth wheel load(kg) 14000
BRAKE SYSTEM: ABS SYSTEM Can be optional
Public notice 107
Trail pin 2" (3.5" canbe optioned)
CHASSIS Designed to carry 1 x 40 ft, or 2 x 20 ft, or dry cargoes. Provided with 12 Nos. Retractable type Multilock twist locks
Main Beams 500mm height, Low Alloy (Q345 ) by automatic submerged
Arc welding; Top Flange 14mm, Bottom Flange 16mm, Middle Flange 6mm.
Load Platform 3mm thickness anti-slip floor.
