Cimc 3 Axles Cargo Semitrailer for Livestock Transportion

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

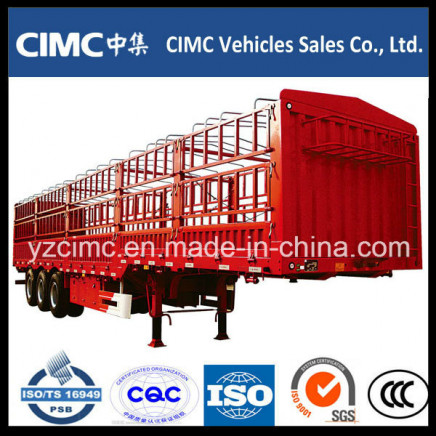

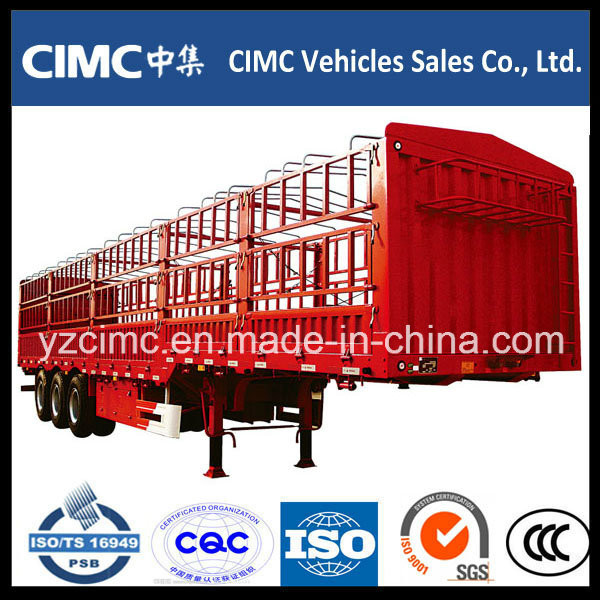

Cimc 3 Axles Cargo Semitrailer for Livestock Transportion

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 14500.0-16500.0/ Piece

Price:$14500.0 - $16500.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Jun 29, 2015 To Sep 29, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CIMC9480GHX

Type:Semi-Trailer

Load Capacity:40t

Certification:ISO9001, CCC, ISO/TS16949

Wheel Base:7000-8000mm

Tread:1820mm

Grade:Heavy Duty

Towing Pin Material:Alloy Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:"I" Type

Towing Pin Diameter:90mm

Differential Gear Type:Gear Type

Independent Suspension Type:Multi-link Type

Connecting Type:Semi-trailer

Shape:Flatbed

Axle Number:3

Tire Number:12

Self-dumping:Self-dumping

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Iron

Condition:New

Axle Brand:Fuwa or BPW Axle

Suspension:Leaf Spring Suspension

Kingpin:Optional for Jost 2" or 3.5"

Langing Gear:Jost Dual-Speed Landing Gear

Floor:3mm Plate

Tyre:11r20

Sidewall:600mm Corrugated Sheet + 1200mm Fence

Painting:as Customers? Request

"I" Beam:500, 16/8/18

Valve:Wabco Valve

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Additional Info.

Trademark:CIMC

Packing:Nude Packing

Standard:ISO, TS16949, CCC

Origin:Jiangsu, China

HS Code:871639900

Production Capacity:1000PCS/Month

Product Description

Dimension: L*W*H:13000X3000X2840(mm)
King pin setting: 800(mm)
Kin pin plate height: 1203(mm)
Axle Space:6850mm+1310mm+1310mm
Tare weight: 10500kg
Payload:40000kg
G.V.W.R.:50500kg

Configration:
Side Beam:16# channel steel, 160mm
Lanidng Gear: Two speed manual operation type with sand shoe
King pin: 3.5" (90#)
Brake system:Dual line pneumatic brake system.
ABS:No
Brake Chamber: Type 30/30 spring brake chamber
Suspension: spring suspension
Axle:FUWA axle, 13 ton capacity/set,3pcs
Tire:11.00R20, 12 pcs
Rim:8.0-20 12 pcs
Lock:12 sets
Floor:3mm checked plate
Main beam:480/14/6/16
Side Wall Height: 600mm corrugated sheet + 1200mm fence
Tool box:1pcs
Spare Tire Carrier: 2 units
Paint: Painting color is according to customer's wish

Company information
CIMC VEHICLES SALES CO., LTD.

CIMC VECHICLE was founded by CIMC group, which fixes the mission to be customers' partner for modern transportation. CIMC is dedicated to manufacturing and supplying CIMC trucks, CIMC truck body assembly, trailers, tank equipment. Currently, CIMC owns USD 8.8 billion total assets, USD 2.6 billion net assets, USD 8.4 billion annual sales and USD 0.6 billion net profits in 2010, having over 150 subsidiaries and 63, 000 staff across China, North America, Europe, Asia and Australia.

Vehicles: CIMC has over 1000 lines of products in 11 series, including container chassis, flatbed trailer, bulk lorry, tanker, self-dumper, reefer trailer, van, curtain side trailer, mixer, pump truck, car carrier vehicle, fire engine, sanitation vehicle, etc. With the annual output capacity of over 200 thousand units, it now takes the leading position in the world. Up to today, the Group has established 22 production bases.

Heavy Truck: Have its own production C & C brand truck. Other heavy truck CIMC produces the truck body, more than 2, 000 kinds of truck body for different transportation purpose. The truck chassis cooperates with FAW, DONGFENG DFAC, SHACMAN, SINOTRUK, FOTON, BEI BEN, JAC, CAMC, SI CHUAN HYUNDAI, SAIC-Iveco and so on, include all truck chassis brand production in China.

Welcome global heavy truck dealer to take a sight seeing of trucks, to taste values of "considerate service, benefits share"! Will bring you cost-saving solutions and eye-catching returns!

Contact information
CIMC VEHICLES SALES CO., LTD.
Address: 8floor, Cimc Plaza, No. 10 West Wenchang Rd, Yangzhou, Jiangsu, China
Website:yzcimc.en.made-in-china.com
www.cimc.com
Tel:86 - 514 - 85883338
Fax:86 - 400-8892 163 EXT 229538
Mobile:86-151-5082-2016 (Mr.Allen)
