Cimc 3 Axle Side Wall Semi Trailer

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

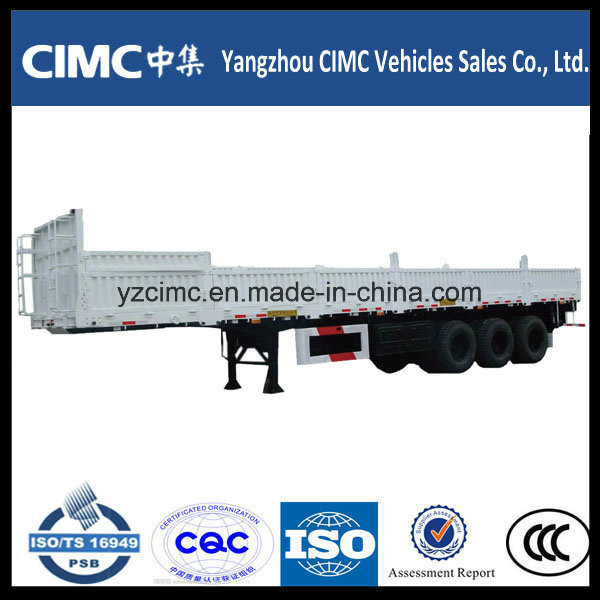

Cimc 3 Axle Side Wall Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 14000.0-19500.0/ Piece

Price:$14000.0 - $19500.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Apr 09, 2015 To Jul 09, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CIMC9480TJZG

Type:Semi-Trailer

Load Capacity:40t

Certification:ISO9001, CCC, ISO/TS16949

Wheel Base:7000-8000mm

Tread:1820mm

Grade:Heavy Duty

Towing Pin Material:Alloy Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:"I" Type

Towing Pin Diameter:90mm

Differential Gear Type:Gear Type

Independent Suspension Type:Multi-link Type

Connecting Type:Semi-trailer

Axle Number:3

Tire Number:12

Self-dumping:Self-dumping

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Iron

Condition:New

Axle Brand:Fuwa or BPW Axle

Suspension:Leaf Spring Suspension

Kingpin:Optional for Jost 2" or 3.5"

Langing Gear:Jost Dual-Speed Landing Gear

Side Wall Height:600mm

Tyre:11r20

Payload:40ton

Painting:as Customers? Request

"I" Beam:500, 14/6/16

Valve:Wabco Valve

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Additional Info.

Trademark:CIMC

Packing:Nude Packing

Standard:ISO, TS16949, CCC

Origin:Jiangsu, China

HS Code:871639900

Production Capacity:1000PCS/Month

Product Description

Dimension: L*W*H: 12670X2495X2795(mm)
King pin setting: 800(mm)
Kin pin plate height: 1203(mm)
Axle Space:7600mm+1310mm+1310mm
Tare weight: 8100kg
Payload:40000kg
G.V.W.R.:48100kg

Configration:
Side Beam:16# channel steel, 160mm
Lanidng Gear: Two speed manual operation type with sand shoe
King pin: 3.5" (90#)
Brake system:Dual line pneumatic brake system.
ABS:No
Brake Chamber: Type 30/30 spring brake chamber
Suspension: spring suspension
Axle:FUWA axle, 13 ton capacity/set,3pcs
Tire:11.00R20, 12 pcs
Rim:8.0-20 12 pcs
Lock:12 sets
Floor:3mm checked plate
Side Wall Height: 600mm
Main beam:480/14/6/16
Tool box:1pcs
Spare Tire Carrier: 2 units
Paint: Painting color is according to customer's wish
