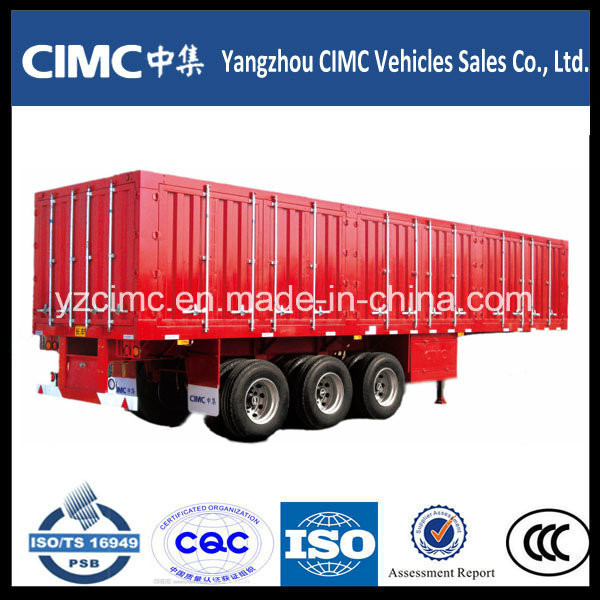

Outside Dimension: L*W*H:12480X2550X3980(mm)
King Pin Location: 1000mm from the front face of the front bolster
Landing gear position: 2520 from the king pin.
Axle Space:6550mm+1310mm+1310mm
King Pin Height: 1, 263mm with the chassis level (The above dimension will be adjusted according to the tractor specification. )
Weight:
Tare weight: 8600kg
Payload:50000kg
G.V.W.R.:58600kg
Steel Structure:
Material: High strength low alloy steel Q345 (350MPa) is used for welded I-beam and Q235 (235MPa) is used for the fabricated parts.
Main Beams: 500mm deep x 146mm wide x 8mm web welded I-section main beam. The height of the side wall is 1500mm.
OEM Parts Configuration:
Lanidng Gear: FUWA 28Ton,Two speed manual operation type with sand shoe
King pin: 3.5" (90#)
Brake System: Dual air brake system, WABCO relay emergency valve, none ABS system.
Brake Chamber: Type 30/30 on the rear two axles, Type 30 on the front axle.
Suspension: spring suspension
Axle:FUWA axle, 13 ton capacity/set,3pcs
Tire:11.00R20, 12 pcs
Rim:8.0-20 12 pcs
Tool box:1pcs
Spare Tire Carrier: 2 units
Voltage:24V
Receptacle:7 ways(7 wire harness)
Paint: Painting color is according to customer's wish
