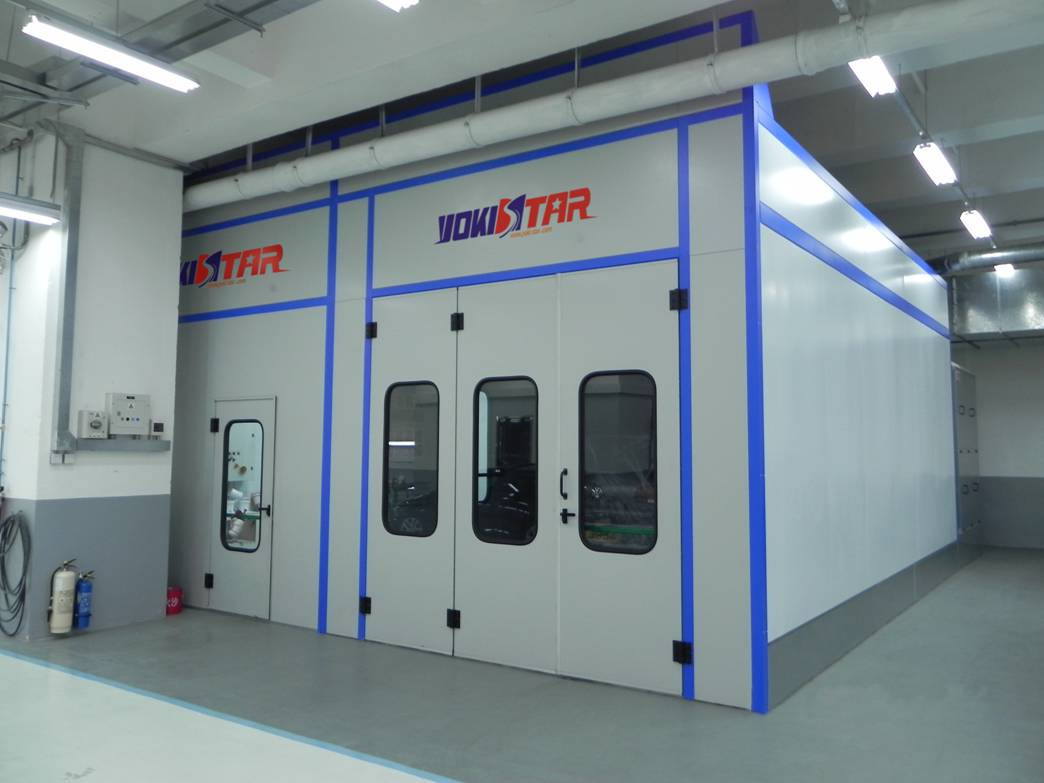

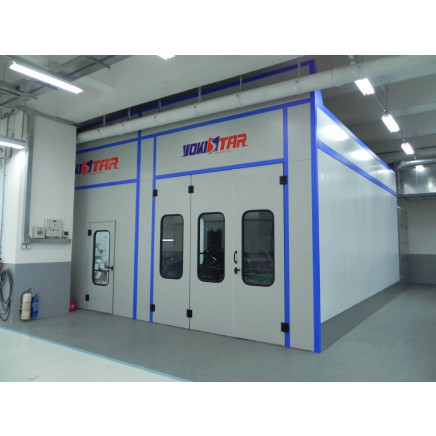

China Top Paint Booth Supplier Cheap Spray Booth

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Set

Trade Terms:FOB, CFR, CIF, EXW

Payment Terms:L/C, T/T, Cash

Trademark:YOKISTAR

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:YS-10

Certification:CE

Airflow Direction:Downdraft Airflow Way

Heating Mode:Diesel

Paint Mist Treatment:Dry-type

Condition:New

Ventilation:Downdraft Airflow Way

Air Intake:2 of 4kw Centrifugal

Air Exhaust:Optional

Heating:Riello G20 Diesel Burner

Voltage:1X220V, 3X380V, Your Special Voltages Are Accepted

Optional Colour:White, Blue, Orange and Red

Port:Huangpu Port or by Your Order

Main Product:Spray Booth, Prep Station, Infrared Curing System

Export Markets:Global

Additional Info.

Trademark:YOKISTAR

Packing:Bubble Film Packing for Sea Transportation in Bulk

Standard:20?GP can load 1 set, 40?GP 2 sets, 40`HQ 3 sets

Origin:Guangdong, China

HS Code:84198990

Production Capacity:120units/Month

Product Description

Economical Spray Booth Is a Small Spray Painting Oven with High Quality
Model: YS-10
Inside dimention: 6900*3900*3400mm L*W*H
Any Size Requirements Can Be Met.
Cheap, but with direct-drive turbo fan

A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.

Warranty
The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.

YOKISTAR Products
High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.

	YS-10
	Economic spray booths
Room body	Standard room body
Wall panel	50mm, EPS wall panel
Main door	3-folds, 3000в2650mm(WвH),quadrate clear tempered glass with rubber frame, all sides covered by aluminium alloy frame
Basement	2rows of grilles, and 3rows of indented plate,2pcs ramps, 520x2000mm(WXL)
Generator setting type	Side upper intake air, quadrate steel frame, galvanized steel
Fan	2 of 4KW centrifugal fan intake air
Burner	Riello G20, heating productivity: 200000Kcal/h
Lighting	Ceiling lights: 8unitsx4pcs=32pcsx36W
Lighting
Total power	9KW
