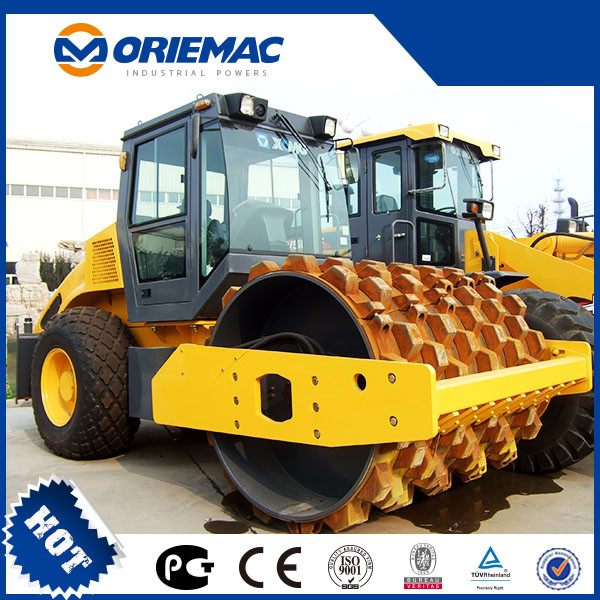

China Top Brand XCMG Roller Compactor (xs142j)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 33000/

Price:US $33000.0 / Unit

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Jun 15, 2015 To Dec 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:XS142J

Type:Road Roller

Working Method:Vibration

Engine Type:Diesel Engine

Condition:New

Name:China Top Brand XCMG Roller Compactor (Xs142j)

Operating Weight:14000kg

Weight on Front Drum:7000kg

Static Linear Pressure:322n/Cm

Vibration Frequency:28Hz

Engine Model:Sc5d125g2b1

Engine:China Shangchai Engine

Max. Power:92@2200r/Min

Hydraulic Oil Tank Capacity:170L

Fuel Tank Capacity:180L

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:XCMG

Packing:Suitable for Ocean Shipment

Standard:ISO

Origin:Xuzhou, China

HS Code:84294019

Production Capacity:100 Units/Month

Product Description

China top brand XCMG roller compactor (xs142j)

XCMG 14ton Road Roller (XS142J)

MAIN SPECIFICATION:

1.Operating weight: 14 ton

2.Static linear pressure:322N/cm

3.Shangchai engine

4.Max. power:92kw

PARAMETER:

Operating weight	kg	14000
Weight on front drum	kg	7000
Static linear pressure	N/cm	322
Speed range	km/h
Speed I		2.7
Speed II		4.8
Speed III		10.5
Theoretical gradeability	%	30
Min. external turning radius	mm	6800
Steering angle	°	±30
Oscillating angle	°	±11
Vibration frequency	Hz	28
Nominal amplitude (high/low)	mm	1.9/0.95
Excitation force (high/low amplitude)	kN	274/137
Engine model		SC5D125G2B1
Type	Water cooled, pressurized	Water cooled, pressurized
Max. power	kW	92@2200r/min
Engine oil consumption	g/kW.h	230
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	180

XS142J vibratory compactor is a kind of heavy duty self-propelled vibratory compactor. It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc.

1) Performance feature
The spacious and bright cab features wide view and comfort.
2) Simple operation
The humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance.
Adopt the gearbox with synchronizer, which is easy to operate.
The special compactor drive axle has the function of preventing slipping, featuring strong traction.
3) Reliable and durable hydraulic system
The standard configuration includes imported open gear pump and motor. The optional configuration includes closed hydraulic vibration system, imported piston pump, motor (16t, 18t). All those have a long service life, supplying stable start-oscillation and oscillation stop and high compacting quality.
4) Energy-saving and environmental friendly power
Shanghai Diesel Engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly in low temperature.
5) High efficient and reliable vibratory compacting system
Unique drum structure features good rigidity and intensity. The bearing adopts short cylindrical bearing, featuring high rotary speed limit and strong bearing capacity. The left vibration chamber and right vibration chamber are symmetrical, avoiding the polarization of the drum.
The vibratory bearing can be lubricated when the compactor travels, which is simple and convenient, ensuring a quite low lubricating system failure rate.
Adopt the numerical control blanking, numerical control plate rolling, numerical control bender, and numerical control horizontal machining center to ensure the precision of the whole machining.
6) Optional configuration
The integral convex block drum, split convex block drum, and the cab with air conditioning.
7) Convenient maintenance
The engine cover is easy to open, and the opening angle is large, which make the maintenance part accessible.
The high positioned air intake prolongs the maintenance interval of the air filter.

ABOUT US:
As a leading Chinese exporter of construction machinery and trucks, we have a professional experience of 8 years in this field. Besides our products of high quality, our international sales team will also provide you excellent logistics service and after-sales service. We will always do our best to solve all the problems and put our customer's interests in the first place.

OUR PRODUCTS:

1) ALL kinds of trucks.
(Dump truck, mining dump truck, tractor truck, truck trailer ,towing truck , water tank truck, concrete mixer truck, oil tank truck, garbage truck, cargo truck, port terminal tractor, refrigerated truck, truck mounted crane, fire truck, suction sewage truck, bus , etc)

2) All kinds of construction machinery.
(Wheel loader, excavator, folklift, cranes, paver, road roller etc.)

ANY QUESTIONS JUST CONTACT ME PLEASE!
