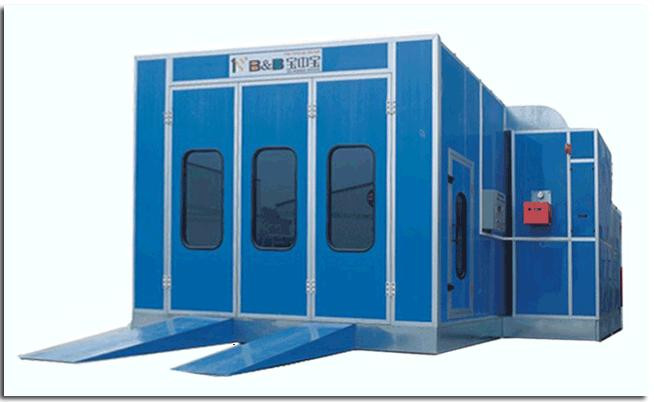

China Origin Down Draft Spray Booth

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Set)	Unit Price
1.0	US $ 8500/ Piece

Price:US $8500.0 / Piece

Payment Terms: T/T

Price Valid Time:From Jul 02, 2015 To Sep 11, 2015

Trademark: BZB

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Type:Car Surface Treatment Equipment

Certification:CE, CSA

Substrate:Steel

Brand:Usi

Coating:Painting

Airflow Direction:Fully Undershot-type

Heating Mode:Diesel

Paint Mist Treatment:Dry-type

Condition:New

Color:as Require

Export Markets:North America, South America, Eastern Europe, Eastern Asia, Western Europe

Additional Info.

Trademark:BZB

Packing:Polyfoam and Cardboards

Standard:CE and ISO 9001

Origin:China

HS Code:84198990

Production Capacity:36000 Sets Per Year.

Product Description

We are the most professional spray booth manufacturer in China. We have been manufacturing spray booth for 10 years.

BZB-8400 MODEL
External Size (mm)	7000x5560x3430
Internal Size (mm)	6900x4000x2650
Cabin System	1.Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards,50mm Thick, Tongue & Groove Style,Compound Construction, Anti-flame and Heat-Insulation Galvabized Roof Panal


	2.Basement	Galvanized Steel Sheet and Square Steel Pipe assembling, Two Rows Grid & Three Embossed Plate

	3.Ramp	Two Ramps, Embossed Steel Plates.
Circulation system	Inhaling Ventilator		Model: YDW 4.5L1	Exhaust Ventilator	Model: YDW 5.6S
			Blower capacity: 12000m 3 /h		Blower capacity:15000m 3 /h
			Pressure: 815Pa		Pressure: 810Pa
			Rolling speed: 900rpm		Rolling speed: 900rpm
			Power: 4kw		Power: 5.5kw
			Quantity: 2 sets		Quantity: 1set

	Air Volume: 24000m 3 /h; Air Speed: 0.35m/s
Air Purification System	Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 ?m. Ceiling Filter Capture Granules Bigger than 5?m. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. Air Pressure Balance Gauge, TSP?1.4mg/m 3




Heating System	1.Burner	Italy Riello Brand,G20 Diesel Burner, 180000Kcal/h, 10N Damp Motor


	2.Heat Energy Converters	Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85%


	Max Temp:80 centi degree, Heating Time: 4-5min(20-60 centi degree), Fuel Consumption: 4-5kg/vehicle

Light System	Ceiling Light: 24 pcs 36w Philips Lamp; Bottom Light: 16 pcs 36w Philips Lamp, 900 Lux


Electric controlling system	Micro-Computer Programme Controlling, Spray & Baking Switch, Light Switch,Emergency Stop, Breakdown Alarm

Environmental Conversation System	Multi-Layer Fiberglasss Filter
