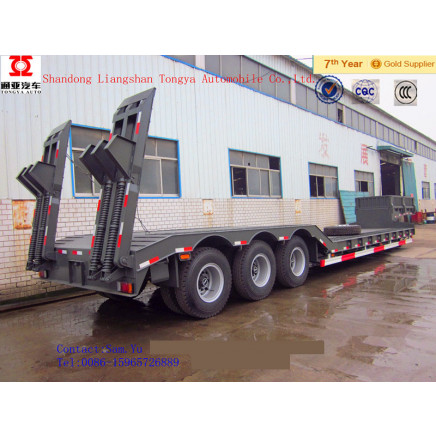

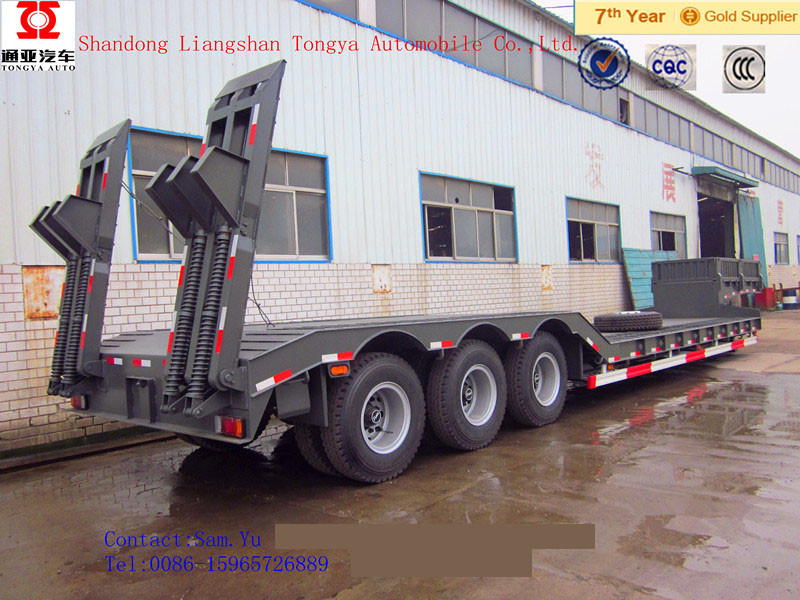

China Manufacturers Best Price 50t Heavy Duty Low Bed Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Piece)	Unit Price
1.0	US $ 19900/

Price:US $19900.0 / piece

Trade Terms: FOB

Payment Terms: L/C, T/T

Price Valid Time:From Nov 13, 2013 To Feb 11, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CTY99658P

Type:Semi-Trailer

Axle Weight Load:13t

Axle Number:3

Wheel:11.00r20

Support Legs:Jost C200t

King Pin:Jost 2.0?? or 3.5??

Number of Tire:13 Pieces(Including One Spare Tire

Emergency Brake Valve:Wabco

Brake Chamber:Four Double and Two Single Chamber

Voltage:24V

Receptacle:7 Ways(7 Wire Harness)

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:Tongyada

Packing:Naked

Origin:Shandong Province, China

HS Code:8716

Production Capacity:100 Pieces in One Month

Product Description

China manufacturers best price 50T heavy duty low bed semi trailer
1. Factory, we can provide you the trailer with high quality at competitive price
2. Years'exporting: We have more than 10 years'exporting experience
3. Certificate: ISO, CCC, CQC

Manufacturer Name		Shandong Liangshan Tongya Automobile Co.,Ltd
Type		Low bed semi trailer
Shipping Terms		By bulk cargo carrier because its huge size
Delivery time		We are the manufacturer,10 workdays for one unit trailer, 50 units per month.
Weight:
	Tare Weight	About 11500KG
	Loading Capacity	50 T
	Axle Weight Load	13T
Specification:
	Axle number	Three
	Axle specs.	FUWA Brand
	Suspension	Common mechanical suspension (American type)
	Wheel	11.00R20
	Dimensions (LxWxH)	1300025002950mm ( the length can be choose freely,we can design the size according to your special requirements )
	Support legs	JOST C200T
	King pin	JOST 2.0'' or 3.5''
	Rim	8.0-20
Tire:
	Number of Tire	13 pieces(including one spare tire)
	Spare Tire Carriers	1 pieces
Frame: (specs. and materials)
	The material of Main beam	Q345 steel,The height of the beam is500mm,upper plate is 20mm, down plate is20mm, middle plate is 12mm.Side beam is 25# Channel Steel.
	Platform plate	5mm Diamond Plate
	Rear Steel Ladder	Two pieces
Brake:
	Emergency Brake Valve	WABCO
	Brake Chamber	Four double and two single chamber
	ABS system	without
Electrical:
	Voltage	24V
	Receptacle	7 ways(7 wire harness)
Light color:		LED light
	Side marker lamp	Orange
	Rear lamp	Red
	Turn signal lamp	Orange
Miscellaneous:
	Painting	According to the requirement of the buyer
	Marking	According to the requirement of the buyer
	Side Guard	According to the requirement of the buyer
	Tools box	One piece ,equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar
