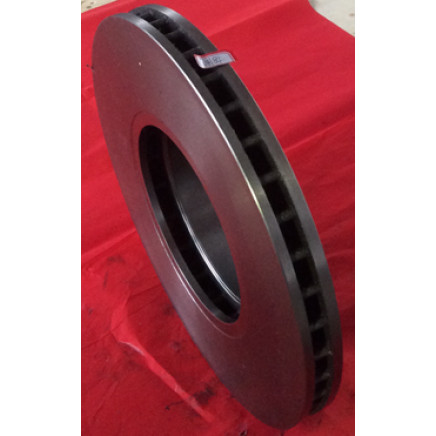

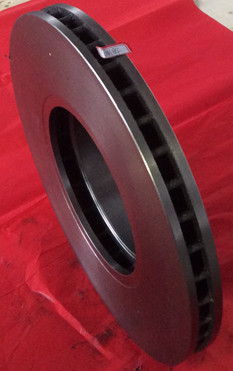

China Manufacturer Auto Car 34184 Brake Disc

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:100 Pieces

Trade Terms:FOB

Payment Terms:L/C, T/T

Trademark:Luzao

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:34184/34 11 6 756 045

Type:Brake Discs

Material:Iron

Position:Front

Certification:ISO/TS16949, TS16949

Classification:Disc

Drum Brakes Classification:Brake Drum

Hardness:170~210

Export Markets:Global

Additional Info.

Trademark:Luzao

Packing:Plastic Bag and Carton

Standard:ISO

Origin:Shandong China Mainland

HS Code:870830999

Production Capacity:300t/Month

Product Description

SPECIFICATION:

1.Light weight
2.More aluminum put in
3.No recycle material
4.Under high temperature quality control

DETAILS:

AIMCO NO: 34184
Position: Front Axle
Height:62mm
Outer Diameter: 332mm
Pitch circle diameter: 100mm
Centering Hole Dia:75mm
Brake disc thickness:30mm
Minimum thickness:28.4mm
Number of holes:5
Solid or vented: V
Packing: Neutral or Color, as customer's request
Delivery Detail: 20-30 days after order
Certificate:ISO9001
Brake disc Specifications:
1) Material: Gray iron HT250/G3000
2) Long service life & stable performance
3) 100% crucial dimension inspection and Balancing
4) 100% qualification

Key Specifications
Item	Brake Disc, braking disc, brake parts ,auto car brake
OE No.	34 11 6 756 045
AIMCO NO.	34184
Position	Front Axle
Material	Gray iron HT250/G3000
Packing	neutral package or color, as customer�s request
Payment terms	T/T or L/C
MOQ	100 PCS
Lead Time	20-30 days
Warranty	1~2years
Size	330*62mm
Height	62mm
Outer Diameter	332mm
Centering Hole Dia	75mm
Pitch circle diameter	120mm
Brake disc thickness	30mm
Minimum thickness	28.4mm
Number of holes	5
Solid or vented	V
Place of Origin	Zouping,Shandong,China Mainland
Brand name	Luzao
Certificate	ISO 9001
HS Code	87083099
Export Markets	North America, South America, Eastern Europe, Southeast Asia, Oceania, Mid East, Eastern Asia, Western Europe
