China Cooking Gas Cheap Semi Trailers Good Quality Factory Supply LPG Tank Trailer Q345r3 Axle 56cbm Heavy Duty LPG Truck LPG

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 1500/ Piece

Price:US $1500.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Price Valid Time:From Jul 07, 2015 To Oct 06, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW4411GYC

Function:Storage Pressure Vessel

Application:Liquefied Gas

Material:Carbon Steel

Pressure:1.6MPa?p<10.0MPa

Storage Medium:Flammable/Toxic

Pressure Level:Medium Pressure (1.6MPa?p<10.0MPa)

Condition:New

Tank Size:11400X2480

Use:Truck Trailer

Steel:High Stength Carbon Steel

Brand:Clw

Filling Medium:Propane

Useage:LPG Gas Storage

Tank Volume:10cbm -50cbm

New or Used:100% New

Origin Place:Hubei Suizhou

Design Pressure:1.61MPa

Export Markets:Global

Additional Info.

Trademark:CLW

Packing:External Naxed

Standard:CCC SGS CE ISO

Origin:Hubei Suizhou

HS Code:8604001900

Production Capacity:300000units/Year

Product Description

Q370R chemical tank 49.6cbm lpg tank small 25m3 LPG storage tank best selling

Packaging & Delivery

Packaging Details:	Bulk, RO-RO, Container, Naked
Delivery Detail:	30 days after official order.

Technique Parameters:

Dimension of semi trailer
Tare Weight of LPG Trailer	11500KGS
Pay Load	25000KGS
Overall Length	11400mm
Overall Width	2480mm

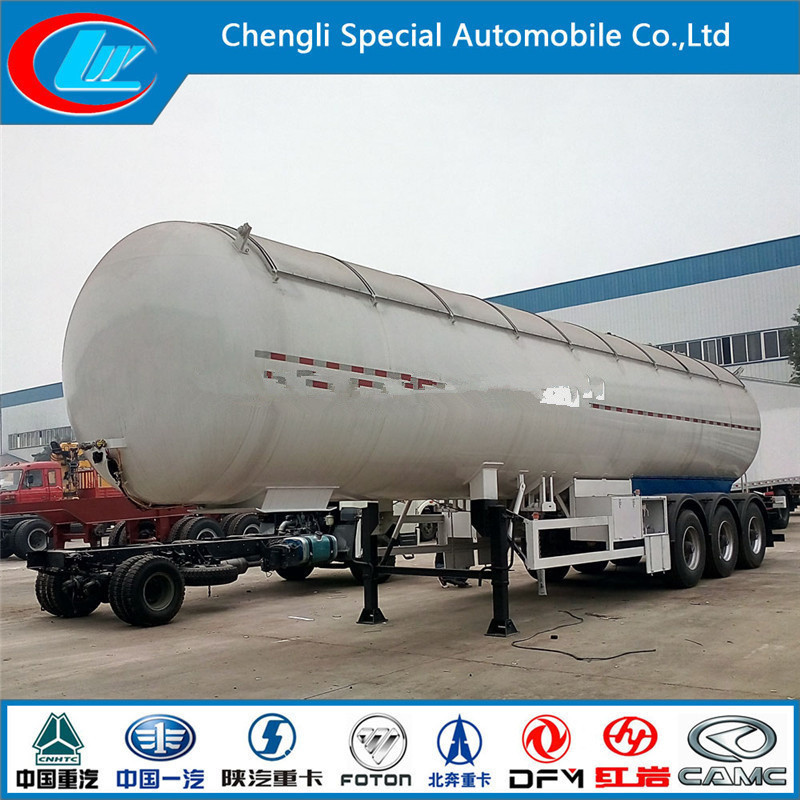

Photo for reference, finial product can be made according to exact requirements lpg tank trailer
Tank
Transporting Media		Dimethylmethane, Liquid Ammonia, Liquid SO2, LPG,Butane
Shape		Round Shape semi trailer
Total Volume(m3)		56CBM 80cbm 100cbm 50cbm 120cbm 20cbm
Tanker Body Steel Sheet		Q235A/14mm semi trailer
End plate		Q235A14mm, by punching
Parts for Tank
Manhole cover		3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve
Unloading valve		2-3 sets of DN80 fixed at button of Tank
Pipeline at button of tank		4"seamless steel tube/Q235
Labeling system		Oil Type Indication
Anti-static electricity system		pulling, wire carrier, sheet copper (6 sheet-standard layout)
Other Parts of semi trailer
Ladder		1 unit at front of Tank
Guard on top of Tank		Zinc galvanized -guard-net
Oil hose box		Circular single hole tube, 1 unit on each side
Oil hose		2 unit, 3" x 6m size in black rubber
Side guard		cross bar-structure
Rear button guard		Fixed type
Work tank deck		Box type
Fire extinguisher box		2 unit at the back of each side
Mud guard		Steel structure in trapezoid form
Lights and wire		24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp
Chassis of semi trailer
Main Beams		Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
Axle		3 axle
		BPW brand FUWA brand
Landing Gear		JOST Two-speed, manual operating, heavy duty landing gear
King Pin		JOST 2"standard bolt-in king pin
Suspension		German design mechanical suspension for semi trailer
Pneumatic Braking System		WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim		8.25R22.5 wheel rim
Tire		11R22.5 tubeless tire with one spare tire for semi trailer
Painting		Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

SPECIFICATION:
1. The biggest LPG truck's valid volume is 35.5cbm
2. The biggest LPG trailer's valid volume is 58.5cbm; low transport costs, more profit.
3. Our LPG storage tank is ranged from 10cbm to 100cbm, both ground and underground.

ABOUT US:
Our factory is a professional LPG tank manufacturer in China, our products fully passed ISO9001-2000 international quality system and 3Cauthentication.We can produce various kinds of LPG Trucks, LPG Semi-trailers and LPG Storage Tanks.

WHY CHOOSE US?
1.Experience:
10 years experience of production,sales,research and development in the field of special trucks.
2.Specialization:
OEM&ODM is available,we can produce according to your demand, the material,the size, the color and the logo is optional for you.
3.Good Quality:
has solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system and passed the ISO9001-2008 and the 3C (China Compulsory Certification),with SGS,BV certifcate as well.
4. Chassis supply:
we have a very good long term cooperation relationship with chassis manufacturer,such as DONGFENG,FOTON,SINOTRUCK,SHACMAN,IVECO,FAW,HINO,CAMC,NORTH-BENZ,etc.
5. Production supply capacity
Company Scale: More than 3000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed. And for the stock, we can delivery it immediately.

Our services
1. we can send our technician to arrive the customer's country to provide the service and also we can train customer's workers for free.
2. free consultation forever. When you meet small problems, professional advices can help you to solve them soon.
3. One year free cost warranty.
4. Spare parts forever. When you need spare parts, we can send them to you immediately.

our advantage:
1. competitive price and excellent quality
2. more than 10 year's experience as a manufacture
3. ccc, Iso, BV certificate
4. perfect after-sale service
5.customized products available with us
6.export covering more than 50 countries and regions
7.annual production value topped 240,000,000us dollars per year

Contact us for any question or advice
TEL:+86 13872880317
PHONE: +86 18901398227
FAX: +86-27-83796298
