China Car Swivel Seat and Turning Seat for Van and Minivan

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CIF, DDP

Payment Terms:L/C, T/T, Paypal, Western Union

Trademark:xinder

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:S-LIFT-R

Type:Turning Seat

Loading:120kg

Turning Angle:0-120

Own Weight:68kg

Volt:12V

Operation:Remote Control

Test Weight:150kg

Export Markets:Global

Additional Info.

Trademark:xinder

Packing:Carton Case or Wooden

Standard:68kg

Origin:China

HS Code:870899999

Production Capacity:500

Product Description

Introduction

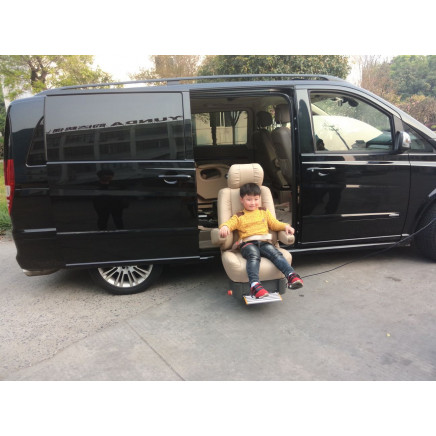

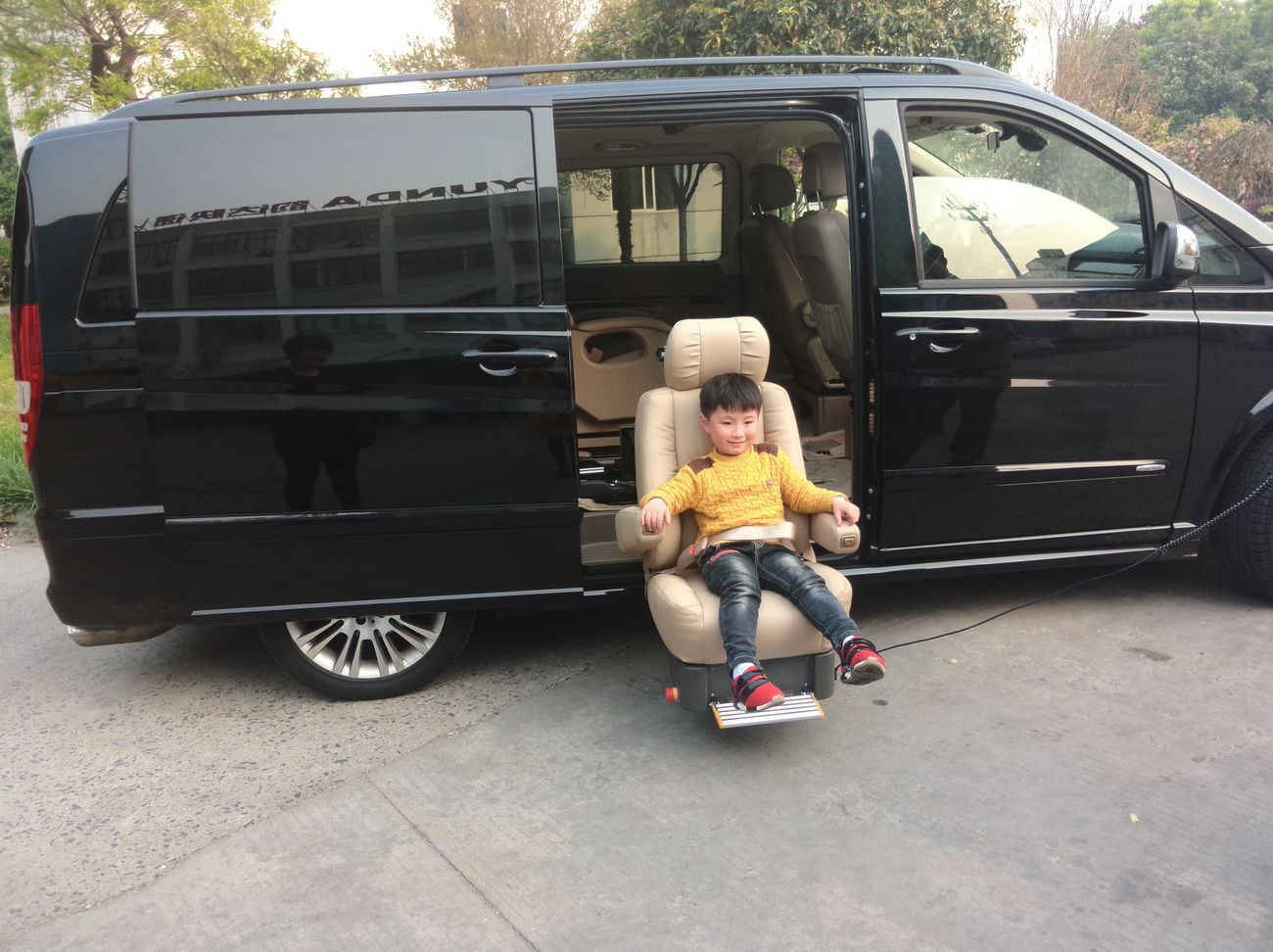

S-LIFT Series turning seat is a kind of equipment to make easy entrance of cars, buses, taxi, ambulance and etc. It can work stable, reliable and safe. Loading capacity can be 100KG.
It is operated by remote control. Turning seat can stop at any position you want by press keys on the remote control.
² Description
Ø This seat makes easy entrance of cars, buses, taxi, ambulance and etc.
Ø Easy operation and reliable function;
Ø It is operated by driver or user;
Ø Working voltage can be 12V or 24V;
Ø Water-proof connectors;
Ø There is warning sound during working;
Ø Working noise is less than 70dB;
Ø Every turning seat has SN which is for track and make after-sales easy;
² Installation
Ø Wholly assembled and easy installation
Ø At the front seat or middle seat of MPV
Ø Put seat 50mm near door, and distance between seat front end and door sheet should be over 280mm
² Application
Ø MPV, van, minivan, SUV;
Ø Handicapped car;
Ø Ambulance;

Technical Function
Ø Volt: 12-24V
Ø Generally, max electricity is 12A (during extending and stowing)
Ø Time for turing:5s
Ø Time for moving forward: 14s
Ø Time for lowering down: 30s
Ø Time for lifting: 50s
Ø Time for moving backward: 14s;
Ø Testing weight: 150kg;
Ø Safety grade: IP67;
Ø Safety loading capacity: 100kg;
Ø Noise: less than 70dB;
Ø Rotating angle: 0-120°
Ø Own weight: 68 KG
Operation: remote control
