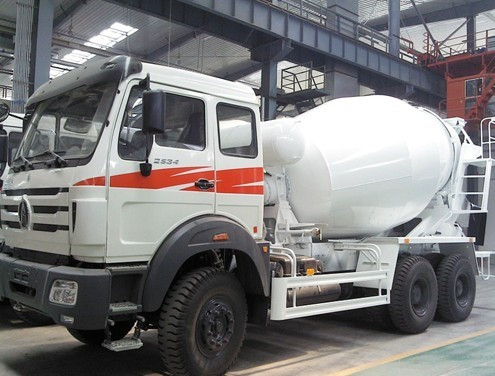

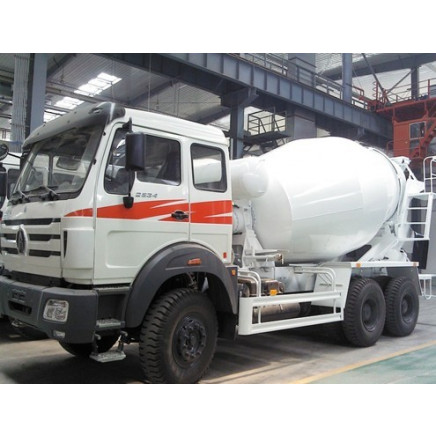

China Beiben Concrete Mixing Truck 6cbm, 8cbm, 9cbm, 12cbm Mixer Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

China Beiben Concrete Mixing Truck 6cbm, 8cbm, 9cbm, 12cbm Mixer Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 52000/ Piece

Price:US $52000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Dec 10, 2014 To Mar 10, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ND5254GJBZ -2534BY

Certification:ISO9000, CCC

Transmission Type:Manual

Emission Standard:Euro 3, 340

Displacement:8

Engine Type:4 Stroke

Payload:40T

Fuel:Diesel

Drive Mode:6x4

Maximum Horsepower:300-400hp

Condition:New

Name:China Beiben Concrete Mixing Truck 6cbm

Truck Type:Cement Truck

Tire Design:Radial

Seats:?5

Tire Certification:ISO

Tire Type:Solid Tire

Drive Wheel:4WD

Load Capacity:30t

Type:Mixer Truck

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Product Description

China Beiben Concrete Mixing Truck 6cbm

Chassis: Benz chassis
Cabin Features: One sleeper, A/C

Engine brand: WEICHAI
Model: WP10.336 EURIII Common Rail
Engine output: 336HP @2200 rpm

Transmission (gear box): 9T-160 fuller gear box
Clutch: D430 Diaphragm type
Steering: ZF8098
Front axle: Benz front axle(7.5ton)
Rear axle: Benz strengthened axle (punching-welding axle housing, double
Reduction driving axle, inter-wheel differential and differential lock) Ratio: 5.263
Spring: 10/13 Fuel tank: 300L
Tire: 12.00-20 No. Tyre: 10+1 spare
Kerb mass: 12870kg Total mass: 25000kg
Approach angle(° ): 30 Departure angle(° ): 23
Front overhang(mm): 1515 Rear overhang(mm): 1410/2530, 1410/2340
Front/rear track(mm): 1995; 1872/1872 Max. Speed(km/h): 93
Wheel base(mm): 3450+1450 Dimension(mm): 8650*2500*3820

Mixer truck body: 6cbm Discharged remain ratio: <0.5%
Hydraulic pump and motor: EATON 6423(America)
Decelerator: BONFIGLIOLI Decelerator 580
Features: Crank chute operation
High pressure water jets, with air pressure supply

China Beiben Concrete Mixing Truck 6cbm, 8cbm, 9cbm, 12cbm Mixer Truck
