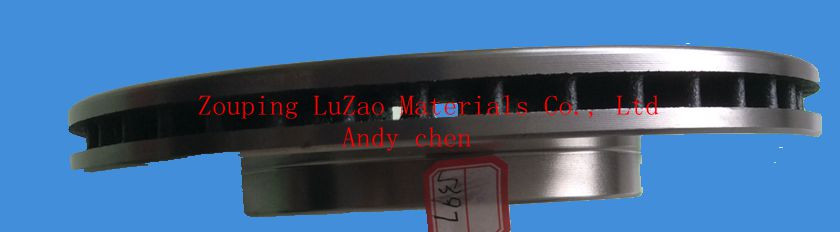

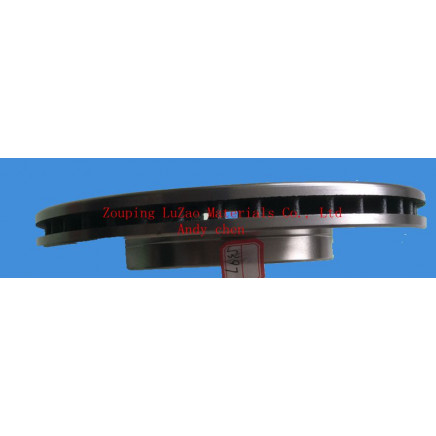

China Auto Parts High Quality Front Axle Brake Disc of 5397

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:100 Pieces

Trade Terms:FOB

Payment Terms:L/C, T/T

Trademark:luzao

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:5273038AA/5397

Type:Brake Discs

Material:Iron

Position:Front

Certification:ISO9001

Classification:Disc

Drum Brakes Classification:Brake Drum

Main Market:Global

Size:256.9mm*38.1mm

Hardness:170~210

Total Carbon:3.0%~3.3%

Silicon:1.9%~2.2%

Manganese:0.7%~1.2%

Phosphorus:0.12%Max

Sulfur:0.12%Max

Export Markets:Global

Additional Info.

Trademark:luzao

Packing:Plastic Bag and Carton

Standard:ISO

Origin:Zouping, Shandong China Mainland

HS Code:870830999

Production Capacity:300t/Month

Product Description

Specification:
1. Various automobile brake disc
2. HT250/G3000
3. High quality, stable performance and competitive price
About our products:
Brake Disc, braking disc, brake rotor, auto car brake

OE No.: 5273038AA/ Aimco No.: 5397
Position: Front Axle
Height: 38.1mm
Outer Diameter: 256.9mm
Centering Hole Dia: 61.2 mm
Pitch circle diameter: 100mm
Brake disc thickness: 22mm
Minimum thickness: 20.4mm
Number of holes: 5
Solid or vented: V
Packing: Neutral or Color, as customer's request
Delivery Detail: 20-30 days after order
Certificate: ISO9001
HS: 87083099
Brand name: Luzao
MOQ: 100~300 PCS
Warranty: 1~2years
Export Markets: Global/Worldwide
Brake disc Specifications:
1) Material: Gray iron HT250/G3000
2) Long service life & stable performance
3) 100% crucial dimension inspection and Balancing
4) 100% qualification
Zouping LuZao Materials Co., Ltd has it's own factory, produce brake disc(common brake disc, double brake disc, expressway brake disc, wheel brake disc, modified brake disc etc), brake drum, brake pad etc. We have many models for your choose. Welcome you to visit the factory.

Key Specifications
Item	Brake Disc, braking disc,brake rotor,auto car brake
OE No.	5273038AA
AIMCO NO.	5397
Position	Front axle
Size	256.9*38.1mm
Height	38.1mm
Outer Diameter	256.9mm
Centering Hole Dia	61.2mm
Pitch circle diameter	100mm
Brake disc thickness	22mm
Minimum thickness	20.4mm
Number of holes	5
Solid or vented	V
Hardness	170~210
Chemical composite	C:3.0-3.3% Si:1.9-2.2% Mn:0.7-1.2% P:<0.12% S<0.12%
Material	Gray iron HT250/G3000
Packing	Neutral package or color, as customer's request

Place of Origin	Zouping,Shandong,China Mainland
Payment terms	T/T or L/C
MOQ	100~300 PCS
Lead Time	20-30 days
Warranty	1~2years
Brand name	Luzao
Certificate	ISO 9001
HS Code	87083099
Export Markets	Global/Worldwide
