China Auto Parts High Quality Brake Disc 54123

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$8.0 - $40.0 / Piece

Min. Order (Pieces)	Unit Price
100.0	US $ 8/ Piece
200.0	US $ 40/ Piece

Trade Terms: FOB

Payment Terms: L/C, T/T

Price Valid Time:From Jun 08, 2015 To Sep 08, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:EF91-33-25X, 54123

Type:Brake Discs

Material:Iron

Position:Front

Certification:ISO/TS16949, TS16949

Classification:Disc

Drum Brakes Classification:Brake Drum

Main Market:Global

Size:303*47mm

Hardness:170~210

Total Carbon:3.0%~3.3%

Silicon:1.9%~2.2%

Manganese:0.7%~1.2%

Phosphorus:0.12%Max

Sulfur:0.12%Max

Port:FOB Qingdao

Export Markets:Global

Additional Info.

Trademark:Luzao

Packing:Neutral or Color, as Customer?s Request

Standard:ISO/TS16949 Certificate

Origin:Zouping, Shandong

HS Code:87083099

Production Capacity:400 Tons Per Month

Product Description

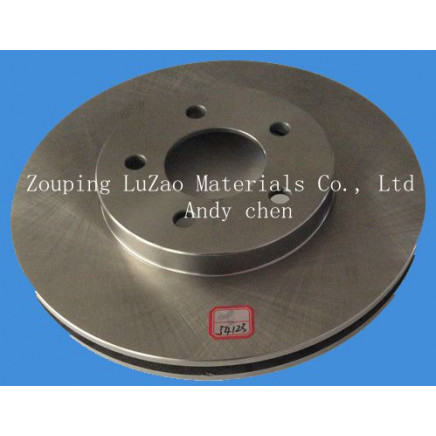

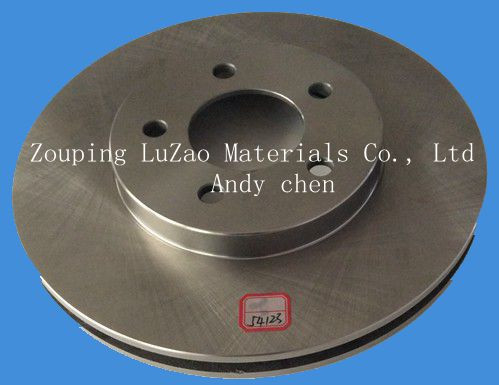

EF91-33-25X (54123)Fort, Mazda Brake disc Details:
Position: Front Wheel
Height: 47mm
Outer Diameter: 303mm
Centering Hole Dia: 72mm
Pitch circle diameter: 114.3mm
Brake disc thickness: 26mm
Minimum thickness: 24mm
Number of holes: 5
Solid or vented: V
Hardness: 170-210
Packing: Neutral or Color, as customer's request
Delivery Detail: 20-30 days after order
Certificate TS 16949/ISO
Brake disc Specifications:
1) Material: Gray iron HT250/G3000
2) Long service life & stable performance
3) 100% crucial dimension inspection and Balancing
4) 100% qualification
5) Low noise standard for casting is HT250, Standard for machining is SAE-j431.
We are professional manufacturer of brake discs and brake pads, enjoying an excellent reputation and keep a good relationship with many foreign companies, especially in Japan, Europe, America and Southeast Asia.
Looking forward to cooperating with you.

Key Specifications
Item	Brake Disc, braking disc, brake parts,auto car brake
OEM No.	EF91-33-25X
AIMCO NO.	54123

Position	Front Wheel
Material	Gray iron HT250/G3000
Chemical composite	C:3.0-3.3% Si: :1.9-2.2% Mn:0.7-1.2% P:<0.12% S<0.12%
Packing	neutral package or color, as customer's request
Payment terms	T/T or L/C
MOQ	100 PCS
Lead Time	20-30 days
Warranty	1~2years
Size	303*47mm
Height	47mm
Outer Diameter	303mm
Centering Hole Dia	72mm
Pitch circle diameter	114.3mm
Brake disc thickness	26mm
Minimum thickness	24mm
Number of holes	5
Solid or vented	V
Place of Origin	Zouping,Shandong,China Mainland
Brand name	Luzao
Color	Silver
Certificate	TS 16949/ISO
Delivery Detail	By air for samples and by sea is usual practice
HS Code	87083099
Note	If the above information is different from what you need, please kindly inform me. We will recheck and send details accordingly. Thanks!
