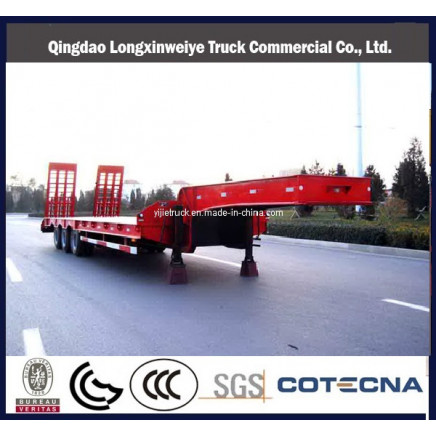

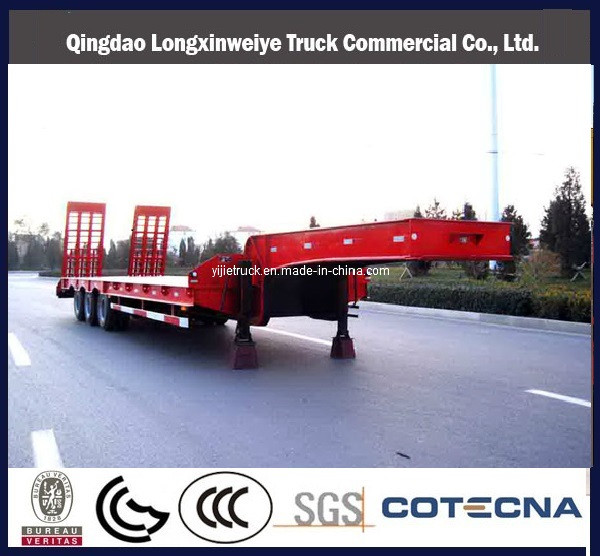

China 70ton Heavy Duty Low Bed Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 16000/

Price:US $16000.0 / Unit

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 01, 2015 To Jul 01, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CQS9300TDP

Type:Axle

Load Capacity:70ton

Certification:CCC

Wheel Base:8000-9000mm

Tread:1820mm

Grade:Heavy Duty

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:90mm

Differential Gear Type:Anti-slip Type

Independent Suspension Type:Cross Arm Type

Connecting Type:Semi-trailer

Shape:Flatbed

Axle Number:3

Tire Number:12

Self-dumping:Not Self-dumping

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Steel

Condition:New

Scale:Heavy Duty

Components:Trailer Axles

Export Markets:Global

Additional Info.

Trademark:CIMC

Packing:Nude Packing

Origin:Shandong, China

Production Capacity:5000units/Year

Product Description

SPECIFICATION AND QUOTATION
Name of product: Tri-axle low bed semi-trailer

Dimensions
Overall Length: 13720mm
Overall Width: 3050mm
Overall height: 3500mm

Working flatform
Width: 3050mm
Height: 3500mm
All the dimensions are approximations

RUNNING GEAR
Axle: CIMC 16T * 3
TYRE: 8.25R20-14PR*8 made in China
RIM: 6.5-20 *8
Landing leg; BAOHUA 28T made in China
Spring suspension

ELSE
Holding capacity: 70000kg
Curb weight: 12000kg
Kingpin: 3.5"
Two spare tyre carriers
One tool box
With steel ladder(width: 720mm)
Crossbeam: 550mm
Longeron: 27/32/16
Beam: 25#channel steel and 16#channel steel
Bottom plate: 4mm checkered plate

Painting
Before the painting, surfaces and accessories are made smooth and then cleaned with a mixture of chemicals;
Steel blasting completely;
Painting color is according to customer's wish.

Tare Weight	10500 Kg
Rated Payload	40000Kg

Total Length	12.0m
Deck Length	8.0m
Deck width	3.0m
Ramp	Mechanical or hydraulic

Chassis	Heavy Duty I Beam Chassis
Axle	BPW, FUWA, L1-Optional
Suspension	Mechanical, Air Bags-Optional
Floor	3mm checker plate
King Pin	2" , 3.5"-Optional
Tire	11R22.5, 235/75R17.5-Optional
Braking System	WABCO Relay Valve
Accessories	One standard tool box
