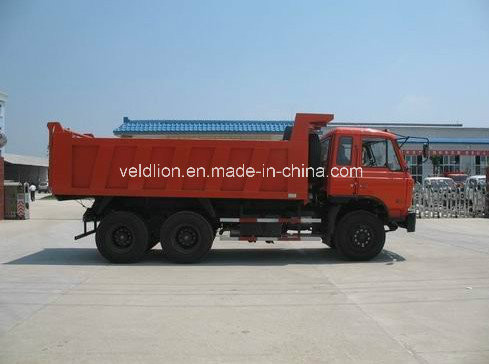

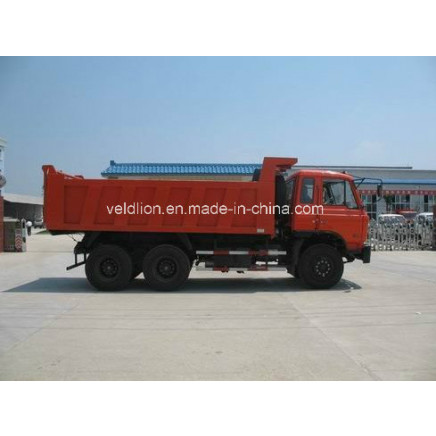

China 20tons Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$37250.0 - $45000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 37250/ Piece
100.0	US $ 45000/ Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Oct 11, 2014 To Jan 11, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VL3251

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 2

Drive Wheel:6в4

Engine Capacity:4-6L

Seats:?5

Horsepower:150-250hp

Tire Type:Inner Tube

Tire Certification:ECE

Tire Design:Tubeless

Dumping Type:Bidirection Dumping Style

Condition:New

Color:White/Yellow

Fuel:Diesel

Certification:ISO9000, CCC, EPA

Engine Type:4 Stroke

Volume:10000-20000L

Type:Dump Truck

Payload:30t

Export Markets:Global

Additional Info.

Trademark:VELDLION

Packing:in Bulk or in Container, Wax Polished

Standard:CE, ISO9001: 2000

Origin:China

Production Capacity:300 PCS Per Month

Product Description

1. Quick Details of the China 20tons Dump Truck:

(1) The dump truck are mainly used for sand, rocks, and gravel transportation.
(2) Curb Weight: 12500kgs
(3) Overall Dimension: 8240в 2500в 3350mm
(4) Max Loading Weight: 30000kg
(5) Drive Mode: LHD/RHD, Diesel Engine 266Hp - 420Hp
(6) Steelsheet Thickness: Floor 8mm, front, side and back wall 6mm

We can offer 4x2, 6x4, 8x4, Dongfeng, Sinotruck, FOTON, SHACAN, FAW, CAMC, ISUZU, JMC, dump trucks.

2. Company introduce for China 20tons Dump Truck
HUBEI VELDLION MACHINERY CO., Ltd is an authorized dump truck manufacturer. We are specialized in the production of a variety of special-purpose vehicles.
Creating value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.

Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Our Service:
(1) Over 400 workers include our sales and engineers will offer you the best design, price and quality;
(2) Pefect after-sales service, offer long days quality guarantee.
(3) within 7-24 hours feedback.

3. Contact us for China 20tons Dump Truck
Atten: Mr ERIC KE
Mobile: 0086-18961715558
www.veldlion.com

4. Parameters datasheet

MAIN DESCRIPTION
Overall Dimension	8145mm 2500mm3340mm (LWH)
Payload	25ton		Curb Weight	12500kg
Front Overhang	1500mm		Rear Overhang	1670mm
Wheelbase	3625mm + 1350mm
CHASSIS
Chassis Brand	SINOTRUK HOWO ZZ3257N3647A
Driving Type	6x4
Cab	HW76, left hand drive, air-conditioner, one bed
Engine and Power	Brand: SINOTRUK, diesel engine, 336hp (247kw), 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, Euro II emission standard
Steering	ZF8098, hydraulic steering with power assistance
Gear Box	HW15710, 10 forward speeds and 2 reverse
Clutch	Model: 430, diaphragm clutch
Front Axle	HF9, load capacity 9 ton, drum brake
Rear Axle	HC16 tandem axle, load capacity 13000kg x2, ratio 5.73
Tire	12.00-20, 11units including 1 spare tire
CARGO BODY
Inside Dimension		5400mm 2300mm1500mm(LWH)
Hydraulic Cylinder		Ventral T-type hydraulic system
Steel sheet thickness		Floor 8mm, front, side and back wall 6mm
Tailgate		One-piece tailgate with upper articulation, safety lock system
