Chemical Liquid Tanker Semi Trailer

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

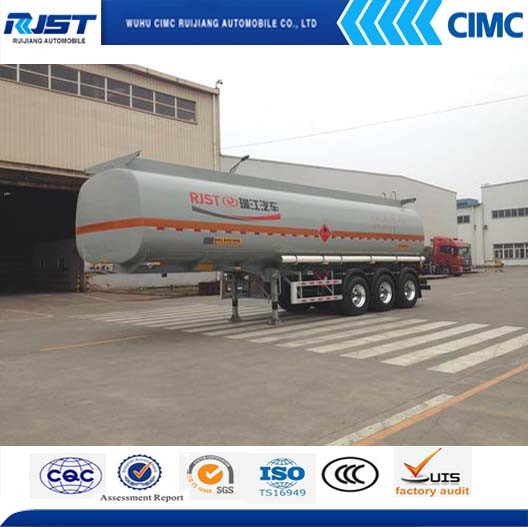

Chemical Liquid Tanker Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 16900.0-17500.0/ Piece

Price:$16900.0 - $17500.0 / Piece

Trade Terms: FOB, CIF, CIP, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Jul 18, 2015 To Jul 30, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WL9400GYY

Load Capacity:25T

Certification:ISO9001, CCC, ISO/TS16949

Tread:1820mm

Grade:Heavy Duty

Towing Pin Diameter:90mm

Connecting Type:Semi-trailer

Shape:Ellipse

Axle Number:3

Tire Number:12

ABS Anti-lock Braking System:ABS Anti-lock Braking System

Material:Carbon Steel

Condition:New

Size:32m3

Export Markets:Global

Additional Info.

Trademark:CIMC RJST

Packing:in Nude

Standard:ISO9001 CCC

Origin:China Anhui Wuhu

Production Capacity:10, 000PCS Per Year

Product Description

Overall Dimension:10500*2500*3990mm
Axle Space:5100+1310+1310mm
Tire:12R22.5
Rim:9.0-22.5
Wuhu CIMC Ruijiang Automobile Co., Ltd specializing in special vehicle, up to now, five producing lines have been built, including concrete mixer, liquid & powder tank, dump truck (tipper), low flat-bed and common semi-trailer. After the improvement of technology in 2007, we have achieved a production capacity of 20, 000 units per year.

Please contact us to know more.

3 Axle Factory Supplier Stainless Steel Tank Trailer Transport Oil Fuel Tanker
PARAMETER	Dimension(mm)	Lwh: 1050025003990(mm)
	Axle space(mm)	5100mm+1310mm+1310mm
	Tare weight(kg)	7240kg
	Loading capacity	32000L
OEM	Landing gear	Two speed manual operation type with sand shoe
	Kingpin	2" bolted type
	Brake system	Dual line pneumatic brake system.
	Brake chamber	Type 30/30 spring brake system on all axles
	Suspension	spring suspension or air suspension
	Axle	RJST or FUWA axle, 13 ton capacity/set,3pcs
	Tire	12R22.5, 12pcs
	Rim	9.0-22.5 12 pcs
	Tool box	0.8 meters toolbox,one pcs
	Spare tire carrier	two pcs
TANK SPECS	Compartment	One or according to your requirment
	Tank material	Carbon steel, thickness 4 mm
	Bulkhead	Thickness is 5mm
	Baffle	Thickness is 4mm
	Shape of tank	Ellipse (double "d")
OTHERS	Fire extinguisher	2 pcs
	Manhole	One manhole
	Discharge hose	6m
	Hose carries	2 pcs
	Painting	Sand blasting before painting;one coats of primer, anti corrosion
	Painting	two coat of finish painting;colour advised by client

35m3 Fuel Tank Semi-trailer with Three Axles
Parameter	Dimension(mm)	1299025003750
	Axle Space(mm)	7200+1310+1310
	Tare Weight(kg)	13050
	Loading Capacity(kg)	21400
	Tank Thickness	6mm
	Bulkhead Thickness	5mm
	Baffle Thickness	4mm
	Landing Gear	28T Baohua
	King Pin	90#,assembled
	Axle	3 units,13T Fuwa
	Suspension	mechanical suspension
	Tire	12 units,11.00R20
	Rim	12 units,8.0-20
	Emergency Valve	one 3''stainless steel
	Ball Valve	one 3''carbon steel
	ABS	4S/2M
Others	Fire Extinguisher	2 units
	Tool Box	1 unit,0.8m
	Spare Tyre Carrier	2 units
