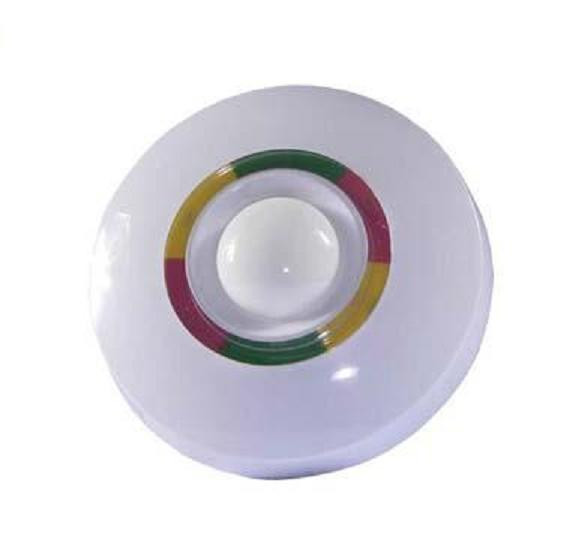

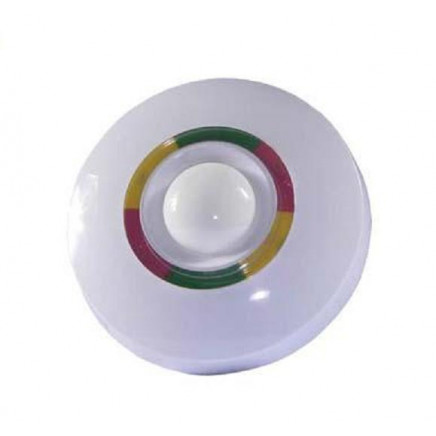

Ceiling Mounting Complex Infrared & MW Intrusion Detector

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:50 Pieces

Trade Terms:EXW

Payment Terms:T/T, Paypal, Western Union

Production Capacity:10000000PCS/Year

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Export Markets:Global

Additional Info.

Production Capacity:10000000PCS/Year

Product Description

Adopts energy-saving logic processing DMF, DMT technology
Adopts dual infrared sensor and plane antenna microwave transmitter/receiver
Dual curtain style Fresnel lens, fit for ceiling mount
With novelty design, smooth lins, dynamic LED display
Adopts refined Fresnel lens technology, improve energy receiving efficiency
Adopts quadruplicity shielding technology, can control the detection area effectively, with high sensitivity
Digital two-way automatic temperature compensation, super resistance to false alarm
Advanced pet-immunity recognition technology can distinguish the different signal between intruder and pet
Advanced anti-cloak technology to recognize the intruder with cloak
Detection: Dual PIR & MW complex
Detection range: Diameter 10m@25
Detection angle: 110°
Installation mode: Ceiling mount
MW frequency 10.525GHz
Installation height 2.4m~4.8m install 10m diameter area
Working temperature: -10C~+50C; Relative humidity: 5%~95%RH
Anti EMI >9000LUX
Anti-white light >30V/M (10MHz~1000MHz)
Alarm output Solid relay, NC
Dimension: 110× 40mm
