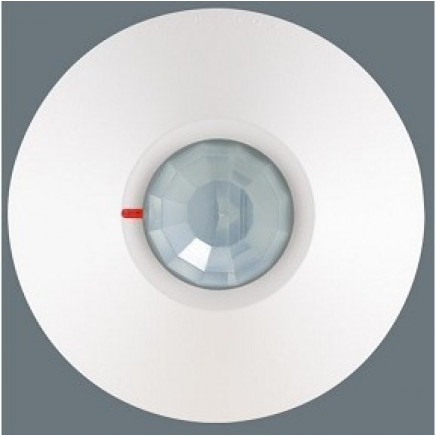

Ceiling Mounted Digital Motion Detector (DG-475/476/477)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:50 Pieces

Trade Terms:FOB, EXW

Payment Terms:T/T, Paypal, Western Union

Trademark:PARADOX

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:DG-475/476/477

Export Markets:Global

Additional Info.

Trademark:PARADOX

Packing:CTN

Origin:China

HS Code:853110000

Production Capacity:500000/Year

Product Description

DG-465

Suitable for ceiling installation
2 automatically adjust the number of pulses
Automatic temperature compensation
Flame-retardant casing
Sensors: Low noise dual rectangular high-sensitivity infrared
Processor: 2 automatic pulse, automatic temperature compensation
Starting Time: 60 seconds electricity
Detection Speed: 0.2~7m per second
Sensitivity: 2 Adjustable
Operating Temperature: -10 º C ~ 50º C
Power Input: 9~16VDC, 18mA
Lens: Fresnel lens three-dimensional
Anti-white: Anti-white light interference
The Scope of Protection: 7.5 X 6m / 24.6 X 19.7ft (mounting height 2.4 m)
Metal Shields: Anti-RF interference
Regional: (12 +12 +12 +12 +6 +1) = 55
Installation Height: 2.2~4.5 m
Alarm Indication: Green LED light to keep 3 seconds (can be closed)
Alarm Output: NC, 28VDC 0.15A
Tamper Switch: Normally closed, open lid was removed, 0.15A, 28VDC
Operating Humidity: 95%
Dimensions: 66 X 93 X 52mm / 2.6 X 3.7 X 2.0in (L x W x H)

DG-466

Directional Ceiling-Mounted Digital Motion Detector
The Paradome DG466 differentiates between incoming and outgoing movements, which is ideal for protecting open balconies and patio doors.
Two dual element sensors (determine if movement is incoming or outgoing)
One incoming detection relay output
One outgoing detection relay output
Adjustable return delay timer (exit and reenter without causing an alarm)
Patented Digital Detection
67cm (2.2ft) X 4.8m (16ft) and 60cm (2ft) X 4.8m (16ft)

DG-467

360° Ceiling Mounted Digital Motion Detector
Two operational modes (addressable for the Digiplex and Digiplex EVO series or conventional relay operation)
Dual opposed element sensor
Digital Detection
7m X 6m (24ft X 20ft) at 2.4m (8ft)
11m X 6m (35ft X 20ft) at 3.7m (12ft)
360° Viewing angle
