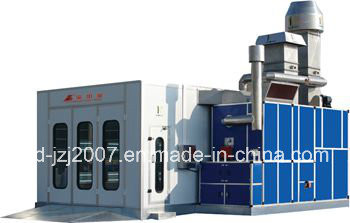

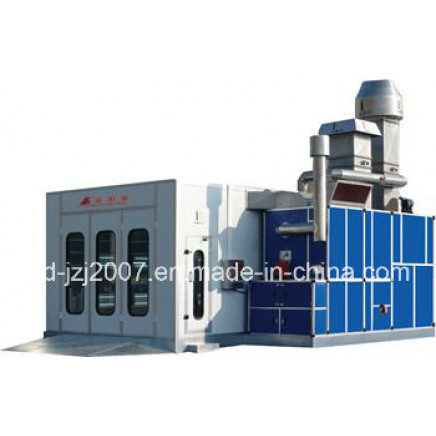

CE Spray Painting Booth High Quality Good Price

More Views

CE Spray Painting Booth High Quality Good Price

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 set

Trade Terms:FOB

Payment Terms:T/T

Trademark:BZB

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BZB-8700

Type:Powder Coating Booth

Certification:CE

Substrate:Steel

Brand:Bzb

Coating:Painting

Airflow Direction:Fully Undershot-type

Heating Mode:Diesel

Paint Mist Treatment:Dry-type

Condition:New

Color:as Require

Voltage:as Require

Export Markets:Global

Additional Info.

Trademark:BZB

Packing:Polyfoam and Carton

Standard:CE ISO9001: 2000

Origin:Guangzhou, China

HS Code:84198990

Production Capacity:500sets/Year

Product Description

Guangdong Jingzhongjing Industrial Painting Equipments Co., ltd is a professional auto maintenance equipment manufacturer since 1999. Our main products include spray booth for cars and buses, baking booth, prep station, car litter, painting line, shower testing booth, powder painting line, etc.
CE Spray Painting Booth High Quality Good Price

Outside Size:(mm)	7040x5990x3450	Front Door:(mm)	3000(w)x2600(h)
Inside Size:(mm)	6900x4000x2650	Total Power:(km)	25

Cabin System	1.Wallboard	EPS (epispastics polystyrene) Colorful Steel Skin Heat Insulated Panel, Wall Boards: 70mm Thick, Ceiling Panel: 50mm Thick. Life Span:20 years
	2.Basement	Full Grid, Adjustable Height, Galvanized Steel Sheet Construction, Three Embossed Steel Ramps.
	3.Enclosure	Sturdy body structure, especially the side door with a pressure lock which will automatically open when the pressure inside is over the limit
Air Circulation System	Inlet Turbine Fan		Model:YDW4.5L	Outlet Turbine Fan	Model:4-82-6.3E
			Capacity: 14000m3/h		Capacity: 30000m 3 /h
			Power: 4kw		Power: 15kw
			Pressure:800Pa		Pressure:1236Pa
			Quantity: 2sets		Quantity: 1set
	The circulation system covers a set of automatic valve and two sets of manual valve. Manual adjustment valves are placed in inhaling and exhaust flue to control airflow volume and adjust pressure. A stainless steel trapezoid hood and a stainless cone hood are placed on the top of blow flue and exhaust flue separately.
	40 pcs Ceiling Nozzles with 2 Centrifugal(power 1.5kw/set) fans drying water paint
Air Purification system	Dual Filtering Structure, The Primary Filter Can Capture Granules Larger than 15 ?m. Ceiling Filter Capture Granules Bigger than 5?m. The Whole Purification System Has Capacity of Large Volume of Dust. It's Filtering Rate Reaches 98%.
Heating System	1.Burner		ItalyRiello Brand,RG5S Diesel Burner, 260000Kcal/h, 20N Damp Motor
	2.Heat Energy Converters		Stainless Steel, Argon Arc Welding, Heat Exchange Rate 85%
	Max Temp:80,Heating Time: 4-6min(20-60 . C), Fuel Consumption: 6-8kg/vehicle
Lighting System	Ceiling Light: 32 pcs 36w Philips Lamp; Bottom Light: 32 pcs 20w Philips Lamp, 800 Lux
Electric Controlling System	PLC Controlling, Soft Touching Button, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm
Environmental Conversation System		No-pump water curtain paint for mist filtering device hat can reduce more than 98% of the fog without the trouble of replacing drying-method filter by fully mixing fog, water and air, and ensures a qualified exhaust according to the relevant state standards
