CE Scissor Wheelchair Lift Manufacturer for Benz Sprinter

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Set

Trade Terms:FOB, CIF, EXW

Payment Terms:T/T, Paypal, Western Union

Trademark:xinder

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WL-UVL-700-S-1090

Type:One Cylinder Hydraulic Lift

Lifting Capacity:350kg

Certification:CE

Design:Scissor

Platform Size:1220*751mm/1220*800mm

Loading Capacity:350kg

Max Lifting Height:700mm

Overall Length:1867-2015mm

Overall Width:1135mm

Overall Height:133mm

Door Width Required:1100mm

Option:Handrail

Safety:Anti-Skip Platform

Export Markets:Global

Additional Info.

Trademark:xinder

Packing:Wooden Box

Standard:CE certificate, 180kg

Origin:Jiangsu. China

HS Code:84289090

Production Capacity:100 PCS/Month

Product Description

1. INFORMATION

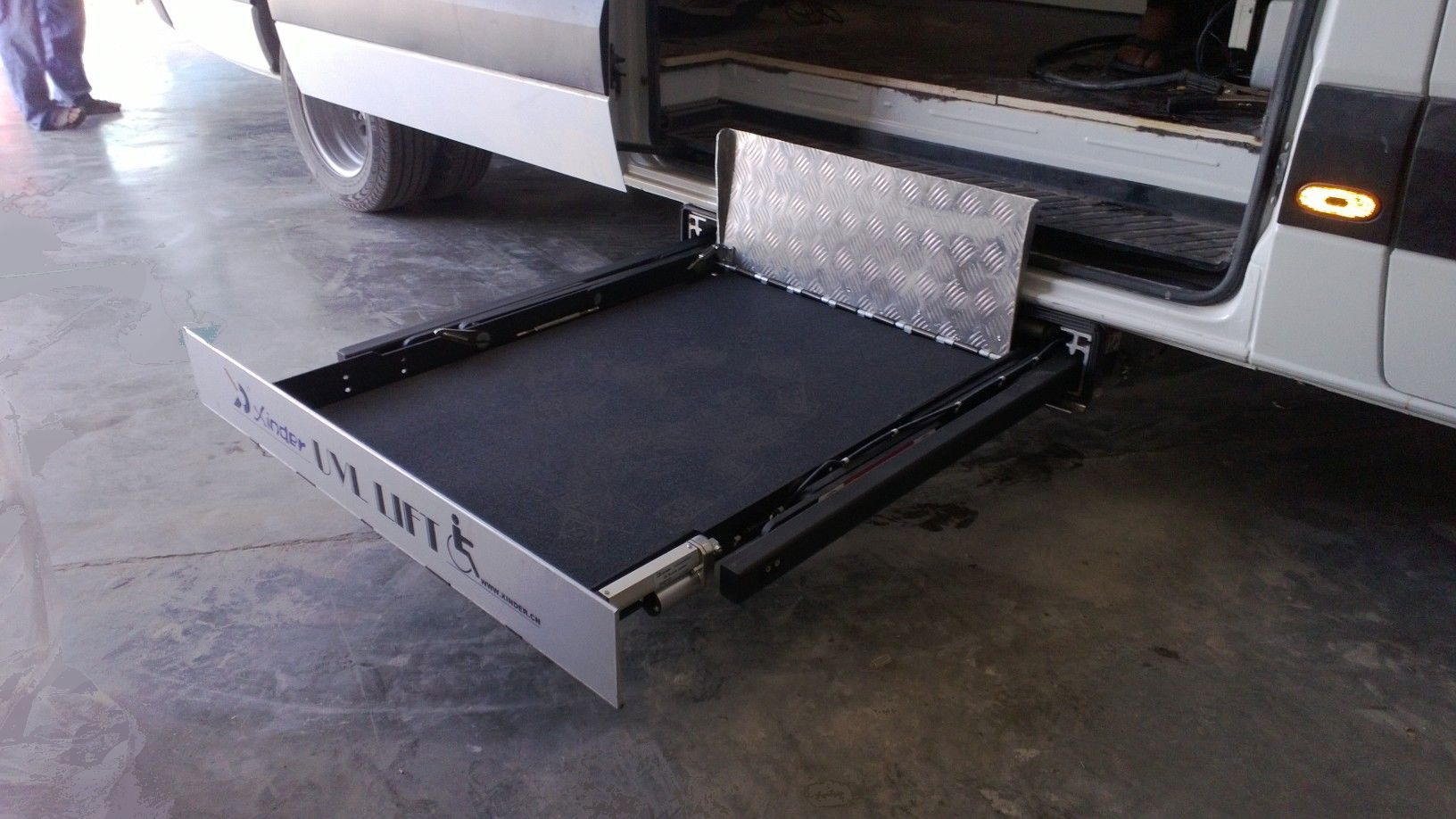

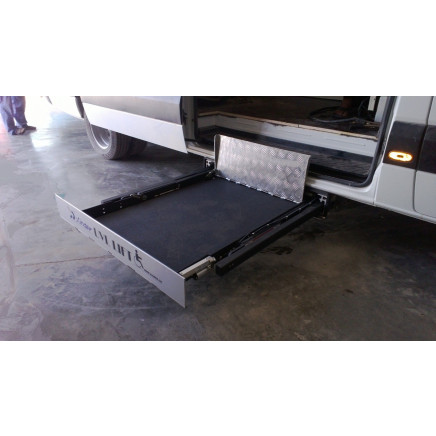

WL-UVL Series Scissor wheelchair lift is installed under vehicle floor. It is operated easily, safe and reliable, with load capacity 300KG. The wheelchair occupant, attendant or driver can operate it by operating switches.
This wheelchair lift platform extends out from vehicle floor, raises to vehicle floor or down to ground. If you do not use it, the platform can be folded under vehicle floor so that make sure enough room for doorway. There is a non-slippery platform to put the wheelchair on, and each front rollstop and rear rollstop, which all make the wheelchair go inside the vehicle, also protect the platform when it raise up and down.

2. ADVANTAGES
Ø Electric outboard rollstop and automatic inboard rollstop
Ø Super thin compact design
Ø No-skid aluminum honeycomb platform
Ø Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs
Ø Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.
Ø Side handrails (Option), for increased comfort and security
Ø Sound and flash light alarm during operation of platform
Ø Built in manual backup system
CE Scissor Wheelchair Lift Manufacturer for Benz Sprinter
