CE Scissor and Hydraulic Wheelchair Lift for Van and Minibuswith Loading Capacity 350kg

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

CE Scissor and Hydraulic Wheelchair Lift for Van and Minibuswith Loading Capacity 350kg

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Sets)	Unit Price
1.0	US $ 5500/ Piece

Price:US $5500.0 / Piece

Trade Terms: FOB, CIF, EXW

Payment Terms: T/T, Paypal, Western Union

Price Valid Time:From May 28, 2015 To Aug 28, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description
Additional Information
Reviews

Description

Details

Basic Info.

Model NO.:WL-UVL-700-S-1090

Application:Van, MPV

Lift Mechanism:Scissor Lift

Carrying Capacity:350kg

Moves:Stationary

Driven Type:Hydraulic

Running Mode:Stationary

Feature:CE

Certification:CE

Platform Size:1090*751mm

Loading Capacity:350kg

Max Lifting Height:700mm

Overall Length:1636mm

Overall Width:1135mm

Overall Height:178mm

Door Width Required:850mm

Option:Handrail

Safety:Anti-Skip Platform

Export Markets:Global

Additional Info.

Trademark:xinder

Packing:Wooden Box

Standard:CE certificate, 180kg

Origin:Jiangsu. China

HS Code:84289090

Production Capacity:100 PCS/Month

Product Description

1. INFORMATION

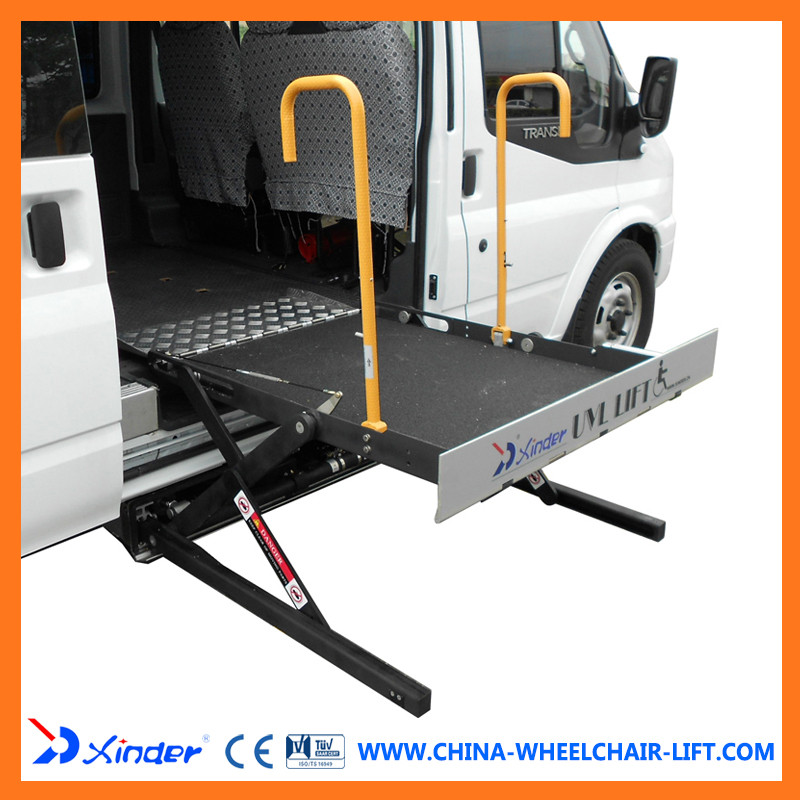

WL-UVL Series Scissor wheelchair lift is installed under vehicle floor. It is operated easily, safe and reliable, with load capacity 350KG. The wheelchair occupant, attendant or driver can operate it by operating switches.
This wheelchair lift platform extends out from vehicle floor, raises to vehicle floor or down to ground. If you do not use it, the platform can be folded under vehicle floor so that make sure enough room for doorway. There is a non-slippery platform to put the wheelchair on, and each front rollstop and rear rollstop, which all make the wheelchair go inside the vehicle, also protect the platform when it raise up and down.

2. ADVANTAGES
Ø Electric outboard rollstop and automatic inboard rollstop
Ø Super thin compact design
Ø No-skid aluminum honeycomb platform
Ø Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs
Ø Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.
Ø Side handrails (Option), for increased comfort and security
Ø Sound and flash light alarm during operation of platform
Ø Built in manual backup system

model	platform	dimension	max up stroke	max down stroke	rear rollstop	installation length required	installation width required	max lifting height
WL-UVL-700-1090	1090*751	16361134178	505	500	306	1600	1200	1000
