CE Electric and Hydralic Wheelchair Lift and Wheelchai Elevator Used for Van

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CIF, DDP, EXW

Payment Terms:T/T, Paypal, Western Union

Trademark:xinder

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WL-D-880-1150

Type:One Cylinder Hydraulic Lift

Lifting Capacity:350kg

Driving Type:Hydraulic

Certification:CE

Driving Motor Number of Mechanical Lift:1

Condition:New

Brand:Xinder

Design:Single Post

Model:Wl-D-880

Max Lifting Height:970mm

Safety Capacity:350 Kg

Plaftform Dimension:1150*720/1250*820mm

Certificate:CE

Volt:24V or 12V

Operation:Electric and Hydraulic Control

Own Weight:135kg

Packing Size:1240*600*1400mm

Gross Weight:185kg

Export Markets:Global

Additional Info.

Trademark:xinder

Packing:Wooden Case

Standard:1150*720/1250*820mm

Origin:China

HS Code:8428909090

Production Capacity:1000 Sets/Month

Product Description

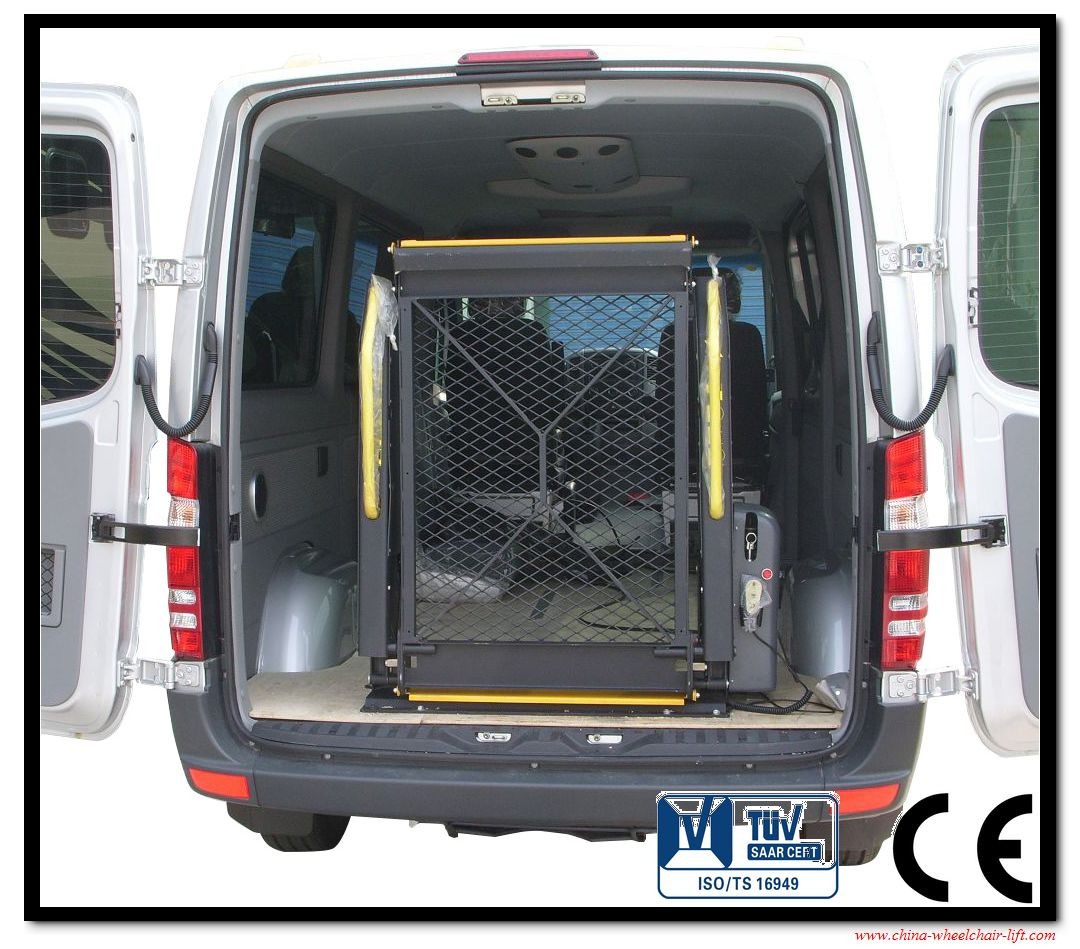

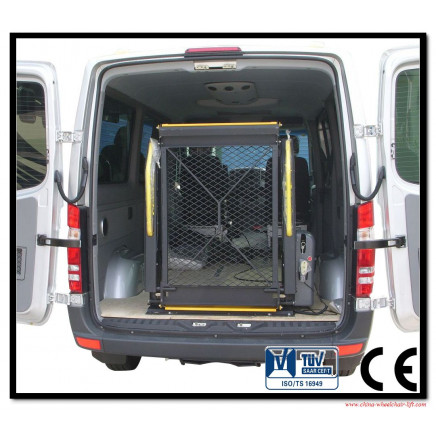

Ø Model 1: WL-D-880
This automatic wheelchair lift offers you dependable accessibility while its trim, compact design maximizes valuable interior space. The lift also features a strong durable steel frame built to give you years of dependable service.
Advantages:
Compact design
Automatic Inboard and Outboard Rollstops
Quiet, smooth and easy operation
Welded All-Steel Frame
Non-Skid Platform
Built-In Manual Backup System
Permanent No-Lube Bearings at All Major Pivot Points

Model 2: WL-D-880U

This wheelchair lift is the lift with a unique "fold-in-half" design. When the lift is stowed, it provides an unobstructed view for the driver, helping to eliminate hazardous blind spots, allows a clear view for the passengers, and is virtually unseen from outside. Plus, because the platform folds when stowed, no raised-roof modification for your personal vehicle is required - even when a long platform is necessary for larger wheelchairs and power scooters. The lift is quiet and easy-to-maintain.

Advantages:
Unobstructed view from within the vehicle
Added safety benefit of minimized blind spots
Unique folding platform accommodates longer platform scooters and wheelchairs without requiring raised roof or door
Automatic inboard/outboard rollstops
Quiet, smooth and easy operation and maintain
Stable and compact when stowed
Permanent, no-lube bearings at all major pivot points
Powerful hydraulic pump
Built-in manual back-up system

Ø Model 3: WL-D-880S
The wheelchair lift gives new meaning to the term accessibility. The fully automatic split platform folds up and out of the way at the push of a button, leaving the doorway clear. The steel frame and powerful hydraulic pump ensure a fast, secure means of entry and exit. You will find the convenient and easy to operate.
Advantages:
Exclusive split-platform design allows clear access to the vehicle's interior.
Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs and scooters
All-steel frame features convenient handrails for increased comfort and security
Stable, non-skid platform with automatic inboard and outboard rollstops accommodates most wheelchairs and scooters
Pre-lubricated bearings at all major pivot points offer long-term durability
High gloss, polyester powder coat finish resists corrosion
Built in manual backup system

Model	WL-D- 880-1150	WL-D- 880S-1150	WL-D- 880U-1150	WL-D- 880-1250	WL-D- 880S-1250	WL-D- 880U-1250
Platform Size (A×B)	720×1150	720×1150	720×1150	820×1250	820×1250	820×1250
Overall Width (C)	1135 mm	1135 mm	1135 mm	1235 mm	1235 mm	1235 mm
Overall Height (D)	1225 mm	1225 mm	1130 mm	1225 mm	1225 mm	1130 mm
Overall Length (E)	440 mm	440 mm	500 mm	440 mm	440 mm	500 mm
Max Lifting Height(F)	880 mm	880 mm	880 mm	880 mm	880 mm	880 mm
Rated Voltage	DC12/24V	DC12/24V	DC12/24V	DC12/24V	DC12/24V	DC12/24V
Max Working Pressure	14 MPa	14 MPa	14 MPa	14 MPa	14 MPa	14 MPa
Loading Capacity	350 Kg	350 Kg	350 Kg	350 Kg	350 Kg	350 Kg
Own Weight	135 Kg	135 Kg	135 Kg	135 Kg	135 Kg	135 Kg
