CE Dual-Arm Electrical & Hydraulic Wheelchair Lift (WL-D-880U)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Set

Trade Terms:FOB, CIF, EXW

Payment Terms:T/T, Paypal, Western Union

Trademark:Xinder

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WL-D-880U

Application:Van, Minibus

Lift Mechanism:Electrical and Hydraulic

Carrying Capacity:350kg

Moves:Stationary

Driven Type:Electrical and Hydraulic

Running Mode:Stationary

Certification:CE

Loading Capacity:350kg

Own Weight:134kg

Electric System:12-24V

Max Working Pressure:14MPa

Platform Dimension:1150*720mm/1250*820mm

Max Floor Height:880mm

Operation:Electric and Manual

Working Method of Front and Rear Rollsto:Automatic

Position of Hydraulic Pump:Inside Vehicle

Export Markets:Global

Additional Info.

Trademark:Xinder

Packing:Wooden Case

Standard:CE

Origin:Changzhou Jiangsu China

HS Code:84289090

Production Capacity:500 Sets Per Month

Product Description

A. INTRODUCTION
WL-D series Dual-Arm wheelchair lift provides an easy access for the people in wheelchair to get in/out of vehicles. The platform can move smoothly, reliably and safely, whose loading capacity can be up to 320kg.
There is electrical &hydraulic control system in WL-D series wheelchair lift, which can operate lift to extend, stow, lift and lower down. Lift performance is controlled by standard controller which can be wire control or remote control. Moreover, there is manual equipment for manual operation.

Maintenance free bearing is used at hinged joint, so that this lift is easy to maintenance. This lift will take up little vehicle space because of the exquisite and compact design and completely steel structure.

The WL-D Series wheelchair lifts are fully hydraulic in operation, for both the fold/unfold and up/down cycles. Lift operation is controlled by the standard hand-held control, the on-lift controls, or the optional remote control.

WL-D Series wheelchair lifts have got CE certificate.

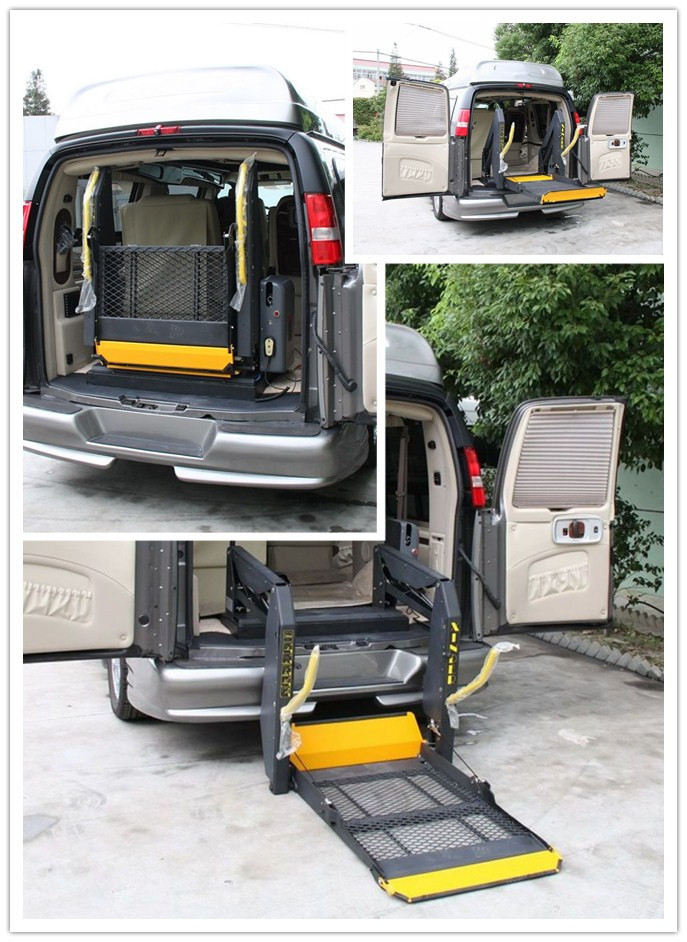

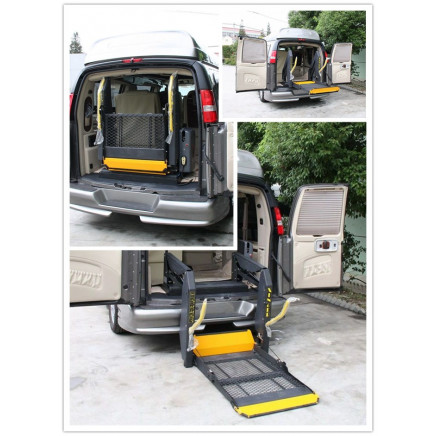

With a unique "fold-in-half" design, this WL-D-880U wheelchair life provides an unobstructed view for driver, helps to eliminate hazardous blind spots, allows a clear view for passengers, and is virtually unseen from outside. Moreover, because the platform folds when stowed, no raised-roof modification for your personal vehicle is required-even when a long platform is necessary for larger wheelchairs and power scooters. The lift is quiet and easy to maintain.

B. ADVANTAGES
1. Added safety benefit of minimized blind spots
2. Unique folding platform accommodates longer platform scooters and wheelchairs without requiring raised roof or door
3. Powerful hydraulic pump ensure smooth, stable and quiet operationall-steel frame features convenient handrails for increased comfort and security
4. Stable, non-skid platform with automatic inboard and outboard rollstops accommodates most wheelchairs and scooters
5. Pre-lubricated bearings at all major pivot points offer long-term durability
6. High gloss, polyester powder coat finish resists corrosion
7. Built in manual backup system

Loading capacity	Own weight	Electric system	Max working pressure	Platform dimension	Max floor height
350 kg	134 kg	12-24 Volt	14 Mpa	1150720mm/1250820mm	880 mm

Model	Operation	Working Method of front and rear rollstop	Position of Hydraulic pump	Application
WL-D-880U	Electric and manual	Automatic	Inside vehicle	Van, minibus

Model	Overall Length(A)	Overall Width(B)	Overall Height(C)	Platform Net Length(D)	Platform Net Width(E)	Required Door Width(F)
WL-D-880U-1150	500mm	1135mm	1130mm	1150mm	720mm	1000mm
WL-D-88U-1250	500mm	1235mm	1130mm	1250mm	820mm	1100mm
