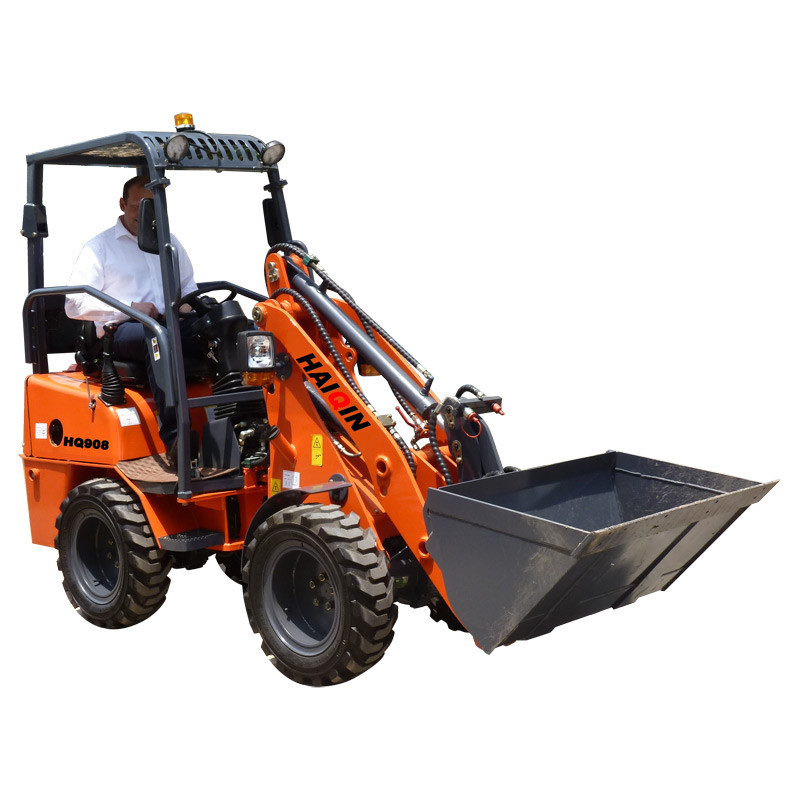

CE Certificated Articulated Mini Loader (HQ908) with Perkins Engine

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 8000.0-12000.0/ Piece

Price:$8000.0 - $12000.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF, FCA

Payment Terms: L/C, T/T

Price Valid Time:From Mar 08, 2015 To Nov 20, 2018

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HQ908

Type:Small Loader

Usage:Universal Type

Scraper Type:Front End Shovel

Transmission:Hydraulic Transmission

Walking Mode:Wheeled

Load and Unload Method:Front Discharge

Engine Power:18.5kw

Certification:CE, ISO9001: 2000, SGS

Condition:New

Color:According to Customers Requirments

Engine:Perkins

Operating Weight:1490kg

Total Width:950mm/ 1110mm

Load Capacity:800kg

Overall Length:3650mm

Overall Height:2250mm

Warranty:15 Months

Export Markets:Global

Additional Info.

Trademark:Haiqin

Packing:3 or 4 Units in One 20 Feet Container

Standard:CE, ISO, SGS

Origin:Shandong, China

HS Code:84295100

Production Capacity:8000 Units / Year

Product Description

HQ908 CE mini loader features:

(1), Engine: Original Perkins Engine 403D-11.
(2), Original Italy Hydrostatic Driving System

(3), Control system: Forward and backward with the handle shifting, the stepless speed change, the initial soft and smooth, no sense of shock;
(4),Working system: adopts imported from Italy valve, a floating (float) function, easy operation, sensitive.
(5),Farm or Garden multi-function use easily .

1, Details photos of HQ908 mini loader: High quality is our pursuit of the principles.

2, Professional spare parts warehouse and working man can supply high efficiency service to all the customers !


Engine	model	Perkins 403D-11
	type	3 cylinder, watercooled
	rated power	18.5kw
	rated speed	2800r/min
	displacement	1.1L
	max.torque	67Nm
Performance	drive pump type	closed piston pump
	total weight	1490kg
	Tipping loads in bucket(kg)
	lift frame horizontal/machine stright	850
	lift frame horizontal/machine articulated	550
	rated bucket capacity	0.35M3 - 0.5 M3
	overall size	3650×950/1110×2250mm
	travel speed	0-12km/h
	max.breakout force	12Kn
	battery	43Ah
	rated voltage	12v
	steering type	articulated hydraulic steering
	drive system	hydrostatic motor
	drive type	4 wheel drive(4WD)
	transmission model	HST
	transmission type	CVT
	drive axle model	hydrostatic drive axle
	max.grade ability	20°
	optional tyre	7.00-12
	optional tyre	26×12.00-12 or 27*8.5-15
	fuel tank capacity	32L
	hydraulic oil tank capacity	40L
