CE Certificated Agricultural Mini Wheel Loader with CE

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 8000.0-12000.0/ Piece

Price:$8000.0 - $12000.0 / Piece

Trade Terms: FOB, CFR, CIF, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Aug 10, 2015 To Nov 27, 2018

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HQ910C

Type:Small Loader

Usage:Universal Type

Scraper Type:Earth Moving,Building, Construction

Transmission:Hydraulic Transmission

Walking Mode:Wheeled

Load and Unload Method:Front Discharge

Engine Power:<74kw

Certification:CE, ISO9001: 2000, SGS,Rops&Fops

Condition:New

Color:According to Customers Requirments

Loading Weight:1000kg

Engine:Euro III

Cabin Glass:E4 Standard

Lamp:E4 Standard

Export Markets:Global

Additional Info.

Trademark:Haiqin

Packing:3 Units in One 40 Container

Standard:CE, ISO, SGS, ROP&FOPS

Origin:Shandong, China

HS Code:84295100

Production Capacity:9000 Units / Year

Product Description

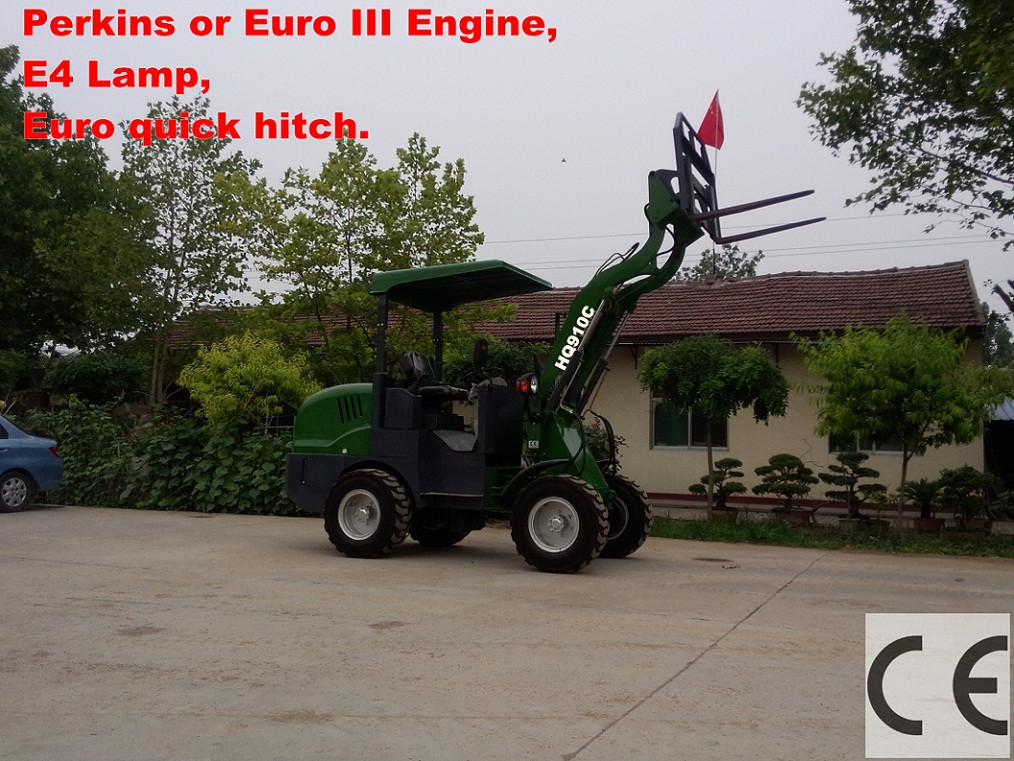

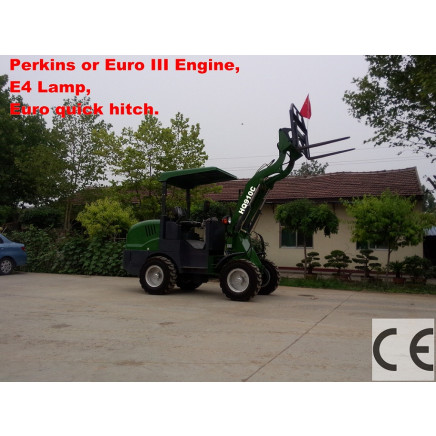

Advantage of HQ910C mini wheel loader

1) With strong lift arm, can lift 1500kg easily.
2) With CE Certificate, Rops&Fops cabin, E4 lamp.
3) Mini Loader with Euro III Emission Engine
4) Multi-function: Hydraulic controlling pilot joystick reduces workforce intensity, improves working efficiency and enhances the driver's comfort.

Specifications of HQ910C Wheel Loader
Item	Specifications	Item	Specifications
Rated loading weight	1000kg	Operating weight	2750kg
Rated bucket capacity	0.54-0.7m 3	Overall dimensions(LxWxH)	4450x1430x2600mm
Bucket width	1500mm	Engine model	XINCHAI 490 EURO III Engine ( Yanmar or Perkins for option )
Track base	1160mm	Engine type	In-line arrangement, water cooled, four-cycle diesel engine
Wheel base	1710mm	Engine starting mode	Electric
Min. turning radius(outside of rear wheels)	3750mm	Rated power/Rated speed	32.4KW/2400rpm
Min. Ground clearance	230mm	Brake mode	Four-wheel hydraulic spread-shoed brake
Dump height fully raised	2420mm	Warranty	15 months
Dump height fully raised	2420mm	Warranty
Reach fully raised	850mm	Color	According to the requirements of customers
Lifting time + Dumping time + Lowering time	9S	Tyre type	12-16.5 or 3115.515 wide tyre
Steering angle	35 degree	Shipping port	Qingdao port, China
Max. Breakout Force	35KN	Packing details	1 unit in a 20 container, 3 units in a 40 container.
Driving mode	Four-wheel drive	Delivery time	20 days after confirm the order
OEM Service	Yes
