CE Car Paint Room High Quality Competitive Price

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 set

Trade Terms:FOB

Payment Terms:T/T

Trademark:BZB

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:Customized

Certification:CE

Condition:New

Color:as Require

Voltage:as Require

Export Markets:Global

Additional Info.

Trademark:BZB

Packing:Polyfoam and Carton

Standard:CE ISO9001: 2000

Origin:Guangzhou, China

HS Code:84198990

Production Capacity:500per/Year

Product Description

Specifications

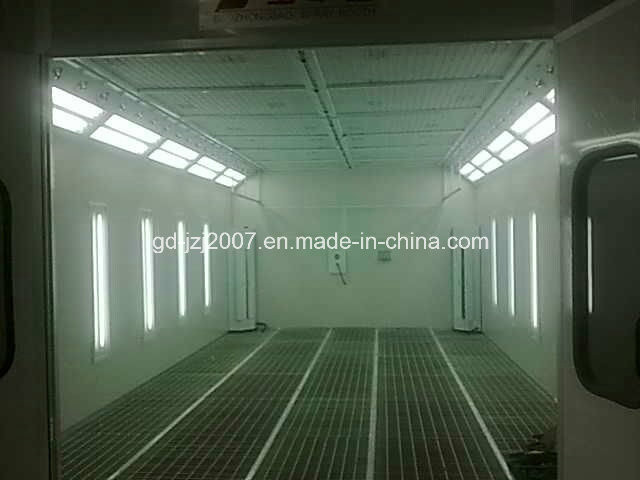

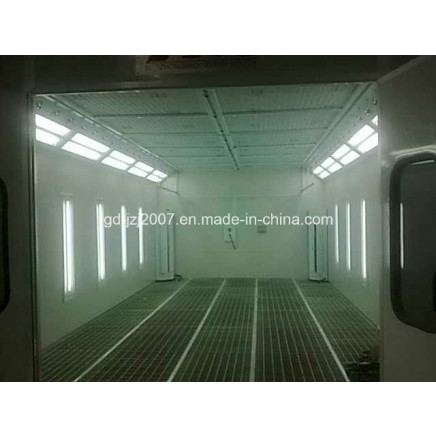

Car paint room:
Inside Dimension: 6900*3900*2700mm(L*W*H)
Outside Dimension: 7000*5350*3400mm(L*W*H)

Car paint room
DESCRIPTION:
1) Inside Dimension: 6900× 3900× 2700mm(L× W× H)
2) Outside Dimension: 7000× 5350× 3400mm(L× W× H)
3) Main Door: 3-folds, 3000× 2650mm(W× H)
4) Personal Door: 1-fold, 650× 1800mm(W× H)
5) Wall Panels: 50mm thick EPS heat preservation wall panels, galvanized steel roof plates.
6) Basement and Floor: Galvanized steel assemble, 300mm
High, 2 rows of grilles and 3 rows of indented plates, 2 ramps, 520× 2000mm(W× L).
7) Lighting: Ceiling lights: 8units× 3PCS=24PCS× 36W; Side lights: Optional.
8) Generator setting type: Side upper inlet air, quadrate steel frame, coated steel.
9) Intake air system: 2× 4KW double-intake centrifugal fans, air capacity is 24000m3/h.
10) Exhaust air system: Optional.
11) Heating system: Riello G20 diesel oil burner, heating productivity is 180000kcal/h, stainless steel heat exchanger, working temperature is 80° C, electric damper from spraying to baking cycle.
12) Filtering system: Prefilter, high efficiency filter (ceiling filter), floor filter (fiberglass filter).
13) Control system: Lighting switch, spraying, heat spraying, baking, time setting, temperature controller, failure indicator, temperature limit controller.
14) Total power: 9KW
