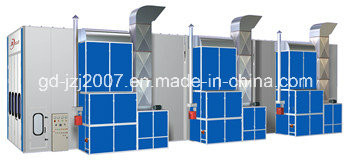

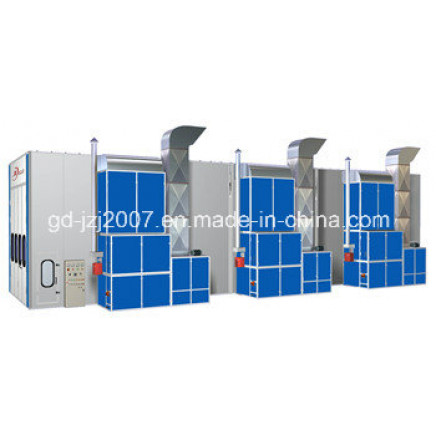

CE Big Bus Spray Booth with High Quality

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 set

Trade Terms:FOB

Payment Terms:T/T

Trademark:BZB

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BZB

Certification:CE

Condition:New

Color:as Require

Voltage:as Require

Export Markets:Global

Additional Info.

Trademark:BZB

Packing:Polyfoam and Carton

Standard:CE ISO9001: 2000

Origin:Guangzhou, China

HS Code:84198990

Production Capacity:500per/Year

Product Description

1) Outside dimension: 20156*8006*6300mm(L*W*H);
2) Inside dimension: 20000*6000*5500mm(L*W*H);
3) Basement: concrete floor with 3 pits, one pit size is 18015*785mm (L*W);
4) Front main door: 4-fold( 4 leaf), 4800*5000 mm (W*H);
Personal door: 700*2000 mm (W*H);2pcs
5) Wall Panels: thickness is 75mm, and insulation is EPS panel;0.476mm double skinned sheet;
Roof plate:galvanized sheet;
6) Lighting: Ceiling Lights: 26Groups*4Pcs=104Pcs *36W;Side Lights: 28Groupsx2Pcs=56Pcs x36W; Philip tube;
7) Glass: all glass is toughened glass;
8) Generator: back upper intake air, back upper extract air, quadrate steel frame, coated steel;
9) One set intake and exhaust air system, totally 3 sets:
Intake fans: YDW centrifugal fan, per capacity: 22300m³/h, motor: 9kw, totally 6 intake fans,
The total intake air volume is 133800m3/h;
Exhaust fan: 4-82-7.1E centrifugal fan, per capacity: 40130m³/h, motor: 15kw, totally 3 exhaust fans,
The total exhaust air volume is 120000m3/h;
Air exhaust unit pipe: 900mm*900mm*1000mm, 6m straight from the cabin with 2 manual dampers and 2 elbows;
The total air exhaust pipe is 12m straight, 4 manual dampers and 4 elbows;
10) One set heating system, totally 3 sets: RIELLO RG5S diesel burner (one stage), heating capacity is 260000Kcal/h, electric damper from spraying to baking cycle, 20N actuator;
11) Filtering system: Pre-filter, high efficiency filter (ceiling filter), floor filter, bag filter, active carbon filter;
12) Control box totally 1 set: spraying, risen-temperature spraying, baking temperature, time setting, lighting switch, hour meter, pressure gauge, emergency stop, failure alarm, temperature control meter;
Control box details:
A. triangle drive, the fan works step by step; all lines contacts with the floor wire;
B. CE electrical components
The Voltage Require: 380V, 3PH, 50Hz
The Total Power: 108KW
CE Big Bus Spray Booth with High Quality
