Description

Details

Basic Info.

Model NO.:Part No.: 229b

Type:Aluminum Connecting Rod

Material:Aluminum

Muffler Type:Center Muffler

Deck:Double

Car Make:Toyota 4.5L

Surface Treatment:Polished

Handle:H Beam & I Beam & X Beam

Parts:Connecting Rod+Bolt

C to C:154mm

B/E Bore:60.6mm

S/E Bore:26mm

B/E Width:27.77mm

S/E Width:27.77mm

Bolt:7/16"

Export Markets:North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe

Additional Info.

Trademark:XYTOSAN, KOSFA, GPM, GEO PARTS

Packing:Xytosan Packing, Neutral Packing, as Your Required

Standard:OEM

Origin:Anhui(Mainland of China)

HS Code:8409919930

Production Capacity:200, 000PCS/Month

Product Description

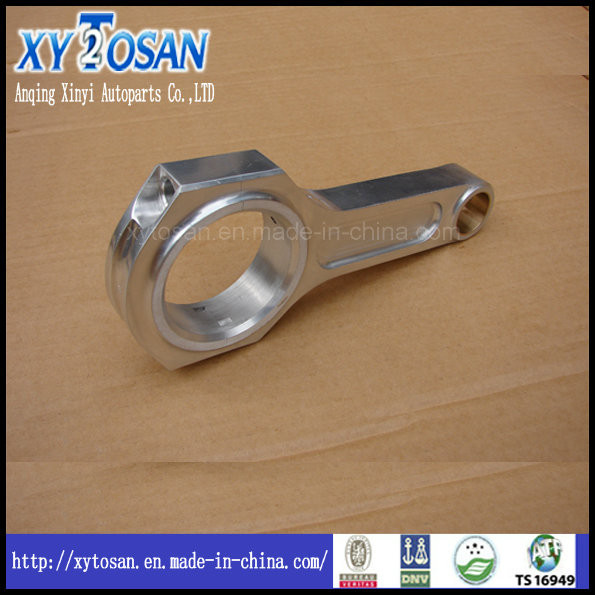

Toyota CC154mm(4.5L) Engine Aluminum Connecting Rod

Product Detail

1). Material:Aluminum;

2). Handle:H Beam & I Beam & X Beam;

3). Inclusion/Set:Connecting Rod+Bolt;

4). Surface Treatment:Polished;

5). Feature:

Manufactured from 7075-T651 Aluminum plate
All surfaces are machined
Weight matched sets ą1.5 grams
Completely polished on all sufaces
Impinged sufaces provides enhanced fatigue strength

6). Technological Process of Production:

Roughcast testing whiling drawn into	?	Mill rod, Cover plane	?	Capitulum hole drilling and converse angle	?
Rough mill pole double-plane	?	Rough tang capitulum hole	?	Rough mill pole cover stage	?
Rough mill haftarah plane(intrados)	?	Semi finished product test	?	Benchmark of mill and serial number	?
Polished mill pole cover stage	?	Rough tang big hole	?	Mill tile slot	?
Screwed hole drilling	?	Fitting and proficiency	?	Semi polished pole cover double plane	?
Semi-polished capitulum and converse angle	?	Oil hole drilling	?	Copper oppression cover	?
Polished mill pole cover double plane	?	Degaussing	?	Polished tang capitulum hole	?
Finished product checking	?	Precise milling	?	Weighing,grouping and tabing	?
Generaltests	?	Cleanout,Oil antirust oil	?	Packaging and leaving factory

7). Certification: ISO9001, TS16949, etc.;

8). Brand: XYTOSAN,KOSFA,GPM, GEO PARTS,etc.;

9). Production Capacity: 200,000 pcs/month;

10). Delivery Day: 30 days after received the deposit

11). Quality guarantee: 3 years;

12). Our main export market:North America, South America,Europe,Asia,ect.

EXPLANATION OF SIZE

1). C-C(mm): center to center

2). B/E bore: big end bore

3). S/E bore: small end bore

4). B/E W: big end width

5). S/E W: small end width

Part No.	Brand	Engine Type	pcs/set	C to C(mm)	B/E bore(mm)	S/E bore(mm)	B/E W(mm)	S/E W(mm)	bolt
358L	Fiat	Fiat 500 (AL)	4	130	47.13	20	24.7	21.5	5/16"
73a	Honda	B18A(AL) 5.394"	4	137.007	48	21	23.75	23.5	3/8"
75a	Honda	B16A(AL) 5.290"	4	134.37	48	21	23.75	23.5	3/8"
228d	Nissan	CC163.5mmAl	6	163.5	60	23	32.8	25.9	7/16"
91c	Subaru	EJ18/20/22(AL)	4	130.45	55	23	21.375	21.375	3/8"
229b	Toyota	CC154mm(4.5L)Al	6	154	60.6	26	27.77	27.77	7/16"

Service

1). New products can be developed upon customers' sample or drawing;

2). Samples can be sent for customers to check the quality before ordering(if we
      have them in stock);

3). Making color laser logo upon customers' needs;

4). Our factory can provide OEM service;

5). We can offer various of connecting rod,such as:BENZ,BUICK,CATEPILLAR,
      CUMMINS,DAEWOO,FORD,HINO,HONDA,ISUZU,KIA,KOMATSU,LADA,
      MITSUBISHI,NISSAN,PERKINS,PEUGEOT,SUZUKI,TOYOTA,VOLVO,etc.;

6). Other engine parts: engine valve, valve guide, cylinder head,complete cylinder
      head,crankshaft,camshaft,valve tappet,rock arm,rock arm assembly and so on...

Package

1). XYTOSAN packing

2). Neutral packing

3). According to customer's requirement
