Cargo Truck 10 Ton Flat Bed Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 20000.0-25000.0/ Piece

Price:$20000.0 - $25000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Sep 26, 2014 To Dec 26, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HW

Type:Flatbed Style

Transmission Type:Manual

Emission Standard:Euro 2

Load Capacity:11-20t

Power:Diesel

Drive Wheel:4×2

Seats:?5

Horsepower:251-350hp

Engine Capacity:4-6L

Tire Type:as Customer?s Requirement

Tire Certification:ISO

Tire Design:Radial

Condition:New

Truck Type:Cargo Truck

Export Markets:Global

Additional Info.

Trademark:HOWO

Packing:Nude

Standard:8000×2470×3000mm

Origin:China

Production Capacity:200units/Month

Product Description

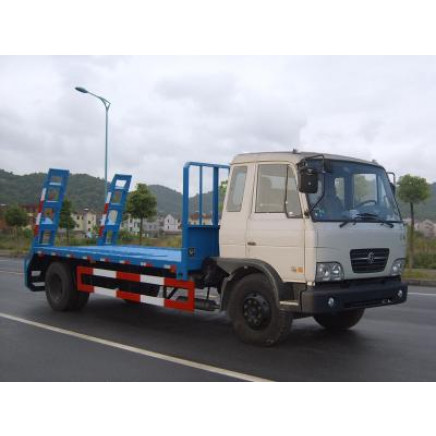

CLW 5050TPB flat bed truck
Items Units Parameter
Vehicle model CLW5050TPB
Chassis model EQ1101GLJ2 (RHD)
Flat bed dimensions mm 6000× 2300
Mass in working order kg 12000
Fact loading 12000
Overall dimensions mm 8000× 2470× 3000
Wheel base 4700
F/R track base 1900/1800
Emissions / power ml/hp 5880/160 Engine type EQB160-20
Mix speed km/h 90 Traction system 6× 4
Tire specification 9.00-20 Number of axles 3
Transmission 6-speed with over one reverse gear Electric system 24v
Operation control system Electrically hydraulic control Allowable passengers in cab 3
Engine Cummins supercharge diesel engine 160 ps, (Euro 2)

1. Equipped with hydraulic pressure system, neat-structured, flexible and reliable. 2. Equipped with high-latitude signal lamp which can guarantee night barrier-cleaning work 3. Equipped with traction supporting highly flexible crane operated by the hydraulic pressure system.
4. Be widely used to carry huge equipments and project machines
5. It is massive, dependable, and its design accords with ergonomics

Item	Parameter	unit
Vehicle model	Lorry truck
Chassis model	EQ1101GLJ
Emission standard	Euro 2
Overall dimensions	7220×2470×2795	mm
Body dimensions	5000×2050×550
Wheel base	3950
F/R track base	1900/1800
Operation control system	Electrically hydraulic control
GVW	10550
Mass in working order	5355	Kg
Fact loading	10000
Approach/departure	25/16	°
Max speed	95	Km/h
Tire specification	9.00-20
Traction system	4X2
Number of tires	6
Number of axles	2
Engine model	EQB160-20
Engine power	5883ml/160hp
