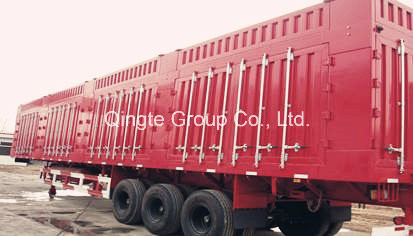

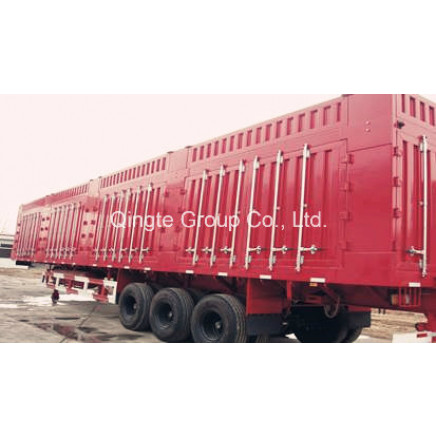

Cargo Transport Trailer, with Side Barrier (QDT9402CXY)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 8000/ Piece

Price:US $8000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Feb 05, 2015 To Apr 05, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QDT9402CXY

Type:Semi-Trailer

Towing Pin Material:Alloy Steel

Impeller Type:Closed Type

Hook Type:Double

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Double Spoon Type

Towing Pin Diameter:90mm

Differential Gear Type:Gear Type

Independent Suspension Type:Cross Arm Type

Material:Steel

Scale:Heavy Duty

Certification:CE

Components:Trailer Axles

Load Capacity:50t

Tare Weight (Kg):6100

Loading Capacity (Kg):33900

Gross Weight (Kg):40000

Dimension (Mm):12976X2500X3100

Inner Board Size(Mm):12785X2339X600

Export Markets:Global

Additional Info.

Trademark:Qingte

Packing:Nude Packing

Standard:SGS, CE

Origin:Qingdao, Shandong, China

HS Code:8716

Production Capacity:20000/Year

Product Description

Model: QDT9402CXY

Tare Weight (kg): 6100

Loading Capacity (kg): 33900

Gross Weight (kg): 40000

Dimension (mm): 12976X2500X3100

Inner Board Size(mm): 12785X2339X600

Wheel Base (mm): 6540+1310+1310

Overhang(Front/Rear) (mm): -/2306

Wheel Specification: 11R22.5 12PR,

12R22.5 12PR

Wheel Track (mm): 1840/1840/1840

Approach Angle/Departure Angle (°): -/14

Plate Spring Quantity: -/7/7/7, -/4/4/4

Model	QDT9402CXY
Tare Weight (kg)	6100
Loading Capacity (kg)	33900
Gross Weight (kg)	40000
Dimension (mm)	12976x2500x3100
Inner Board Size(mm)	12785x2339x600
Wheel Base (mm)	6540+1310+1310
Overhang(Front/Rear) (mm)	-/2306
Wheel Specification	11R22.5 12PR, 12R22.5 12PR
Wheel Track (mm)	1840/1840/1840
Approach Angle/Departure Angle (°)	-/14
Plate Spring Quantity	-/7/7/7,-/4/4/4
