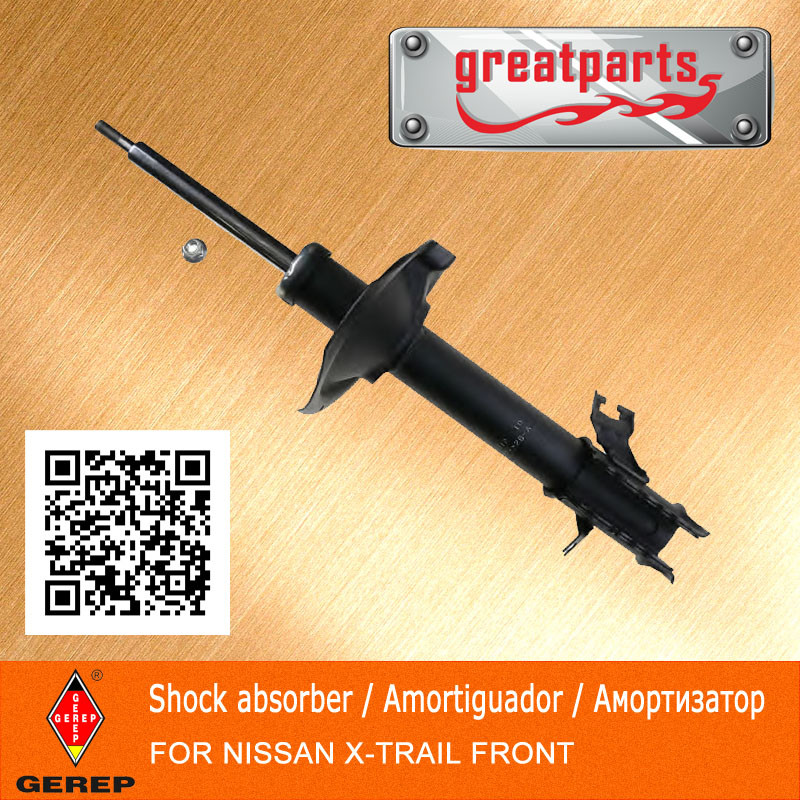

Car Shock Absorber for Nissan X-Trail Auto Shock Absorber

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Car Shock Absorber for Nissan X-Trail Auto Shock Absorber

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
100.0	US $ 0.1/ Piece

Price:US $0.1 / Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Jul 07, 2015 To Sep 17, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:543028H600 543028H625

Part:Dampers

Position:Front

Type:Gas-Filled

Spring Type:Coil Spring

Spring Material:Steel

Structure:Double Cylinder

Application:Nissan

Brand:Gerep

Damping Force Direction:Bidirectional

Categories:Auto Spare Parts

Products:Shock Absorber

Location:Zhejiang, China

Painting Color:Customized Color Is Available

Painting Style:Shining or Matte

Packing Box:Customized Color Is Available

Engrave:Customized Design Is Available

Delivery Date:45~60 Days

Transportation:by Sea, Train or Air

Quality Guarantee:30000 Kms

Export Markets:Global

Additional Info.

Trademark:GEREP

Packing:Gerep Color Package and Customized Package.

Standard:TS/SGS 16949

Origin:Zhejiang

HS Code:870880100

Production Capacity:50000 PCS/Month

Product Description

TECHNOLOGY INTRODUCTION:

S/N.	Material speciation	Top quality
1	Piston Rod	The piston rod, larger in diameter to increase the strength, is hard-chrome plated, induction hardening , and fine polished for greater resistance to corrosion, thus, assuring of smooth action.
2	Oil Seal	The special Multi-slip oil seal, made of oil and wear-resistant high quality synthetic rubber, having high sealing efficiency to keep vital oil and gas in and dirt out of the cylinder.
3	Rod Guide	The sintered iron rod guide with a PTFE-bushed sliding surface, assures smooth rod action with minimal resistance and wear.
4	Nitrogen Gas	Nitrogen gas is filled in the reservoir except hydraulic type shock absorbers.
5	Rebound Stopper	A rebound stopper, made of a high quality synthetic rubber, or resin, is installed on the piston rod to act as the rebound stop.
6	Pressure Tube	The pressure tube, with a precision sliding surface mirror-like finish is designed to withstand tremendous internal working pressures, thus, providing greater reliability.
7	Piston Valve	Unique automatic control rebound disc valve, which automatically adjusts to all ride conditions, is designed to assure maximum performance and smooth ride control.It also provides instant response for full performance without any time lag.
8	Absorber Oil	Our absorber oil with constant viscosity, blended with chemical additives provide optimum operating performance keeping its efficiency, in any weather conditions.
9	Bottom Valve	Compression disc valve, which provides excellent performance, has automatic control actions similar to the rebound piston disc valve.

TRADE CONDITION:

1. RFQ - Request for quotation

We could identify shock absorbers by OEM No. or other brands part number which list following ( KYB, TOKICO, SACHS. BOGE, Bilstein, AL-KO, KONI, SABO, WEBCO, RECORD, MONROE, Gabriel, Cofap, Corven, NAKATA, Ultima, etc. )

Please send RFQ to our email to know our latest prices.

2. MOQ - Minimum order quantity

Our MOQ is 100 Pcs for each item, but if there are few items that we have in stock, the MOQ will not be indicated.

3. Customized brand packing box

We could accept customerized brand packing box based on MOQ 3000 pcs. If customerized brand order quantity less than 3000 pcs, a extra charge for printing box will be added in commercial invoice.

4. Delivery time: 45~60 days.

5. Payment term: 1> L/C 2> T/T

SHOCK ABSORBER SUIT FOR ALL NISSAN SERIES:

Application models for NISSAN	Year
100 NX (B13)	03.90-01.96
180 SX Coupe (S13)	09.88-03.94
200 SX (S13)	07.88-11.94
200 SX (S14)	10.93-12.99
200 SX (S15)	11.00-12.03
350 Z (Z33)	10.02-
350 Z Roadster (Z33)	10.03-
ALMERA I (N15)	07.95-07.00
ALMERA I Hatchback/avec hayon (N15)	07.95-03.00
ALMERA II (N16)	06.00-
ALMERA II Hatchback/avec hayon (N16)	03.00-
ALMERA TINO (V10)	08.00-
ALMERA Classic (B10)	03.06-
BLUEBIRD (B610)	08.71-01.80
BLUEBIRD (JN 510, JP 510)	08.67-12.72
BLUEBIRD (T72 , T12)	12.85-09.90
BLUEBIRD (U11)	11.83-05.90
BLUEBIRD Hatchback/avec hayon (T72, T12)	12.85-12.90
BLUEBIRD Station Wagon/Estate/Break (810)	07.76-12.79
BLUEBIRD Station Wagon/Estate/Break (WU11)	11.83-09.90
CABALL	01.68-12.81
CABSTAR
CABSTAR Pritsche/Fahrgestell (F22, H40)	01.82-09.93
CEDRIC
CEDRIC (L230)
CEDRIC (V,W 230)
CEDRIC Coupe (230)
CEDRIC Coupe (L230)
CHERRY (E10) I	09.70-09.78
CHERRY III (N12)	04.82-10.87
CHERRY Coupe (10)	01.70-07.78
CHERRY II Coupe (N10)	08.78-12.82
CHERRY Hatchback/avec hayon (N10)	08.78-12.82
CHERRY IV Schrägheck (N13)	07.87-09.91
CHERRY IV Stufenheck (N13)	06.89-09.91
CHERRY III Stufenheck (N12)	11.83-09.87
CLIPPER	12.66-05.76
DATSUN 120 Y Coupe (KB 210)	04.62-08.80
DATSUN 240 Coupe (KMLGC210)	09.78-07.81
HOMER
INTERSTAR Bus (X70)	07.02-
INTERSTAR Kasten (X70)	07.02-
INTERSTAR Pritsche/Fahrgestell	08.03-
KUBISTAR (X76)	08.03-
KUBISTAR Kasten	08.03-
LAUREL (C130)
LAUREL (HLC230)	03.77-05.83
LAUREL (JC31)	01.81-12.85
LAUREL (JC32)	11.84-06.90
MAXIMA II (J30)	10.88-02.95
MAXIMA QX III (A32)	03.94-08.00
MAXIMA QX II (A33)	04.99-11.03
MICRA I (K10)	12.82-11.92
MICRA II (K11)	01.92-02.03
MICRA III (K12)	01.03-05.10
MICRA C+C (K12)	08.05-
NAVARA	08.85-02.98
NOTE (E11)	03.06-
PATHFINDER (R50)	09.97-12.04
PATHFINDER (R51)	01.05-
PATROL GR I (Y60, GR)	08.87-02.98
PATROL GR II (Y61)	06.97-
PATROL Hardtop/closed off-road vehicle/carrosserie fermée (K160)	11.79-08.88
PATROL Hardtop/closed off-road vehicle/carrosserie fermée (K260)	05.86-06.90
PATROL Pritsche/Fahrgestell (MQ, MK, GQ)	06.80-12.97
PATROL Station Wagon/closed off-road vehicle/carrosserie fermée (W160)	11.79-08.88
PATROL Station Wagon/closed off-road vehicle/carrosserie fermée (W260)	08.88-11.95
PICK UP (720)	01.80-03.86
PICK UP (D21)	09.85-
PICK UP (D22)	01.97-
PINTARA Kombi (R31)	06.86-10.90
PINTARA Schrägheck (U12)	11.90-10.92
PINTARA Stufenheck (R31)	06.86-10.90
PINTARA Stufenheck (U12	11.89-10.92
PRAIRIE (M10, NM10)	12.82-10.88
PRAIRIE PRO (M11)	10.88-07.94
PRIMASTAR Bus (X83)	09.02-
PRIMASTAR Kasten (X83)	09.02-
PRIMERA (P10)	06.90-06.96
PRIMERA (P11)	06.96-12.01
PRIMERA (P12)	01.02-
PRIMERA Hatchback/avec hayon (P10)	06.90-06.96
PRIMERA Hatchback/avec hayon (P11)	06.96-07.02
PRIMERA Hatchback/avec hayon (P12)	07.02-
PRIMERA Traveller/Estate/Break (W10)	07.90-03.98
PRIMERA Traveller/Estate/Break (WP11)	04.98-12.01
PRIMERA Traveller/Estate/Break (WP12)	02.03-
PULSAR I Stufenheck (N15)	07.95-07.00
QASHQAI (J10, JJ10)	02.07-
SERENA (C23M)	07.92-09.01
SKYLINE	08.68-08.81
SKYLINE (R31)	07.86-12.90
SKYLINE Coupe (R31)	08.85-05.90
SKYLINE Kombi (R31)	07.86-12.90
STANZA (T11)	08.81-12.85
STANZA Hatchback/avec hayon (T11)	08.81-12.85
SUNNY (140Y, 150Y)	01.70-02.82
SUNNY Pickup	01.70-
SUNNY Station Wagon/Estate/Break (120Y)	01.70-10.77
SUNNY Coupe (140Y,150Y)	05.73-02.82
SUNNY EXCELLENT	01.71-12.76
SUNNY Traveller/Estate/Break (140Y, 150Y)	06.79-
SUNNY I (B11)	03.82-08.90
SUNNY I Coupe (B11)	03.82-08.90
SUNNY I Traveller/Estate/Break (B11)	03.82-08.90
SUNNY II (N13)	06.86-10.90
SUNNY II Coupe (B12)	06.86-06.91
SUNNY II Hatchback/avec hayon (N13)	06.86-10.90
SUNNY II Traveller/Estate/Break (B12)	01.86-08.90
SUNNY III (N14)	05.90-12.96
SUNNY III Hatchback/avec hayon (N14)	10.90-07.95
SUNNY III Liftback (N14)	10.90-10.95
SUNNY III Traveller/Estate/Break (Y10)	11.90-03.00
TERRANO I (WD21)	07.86-02.96
TERRANO II (R20)	10.92-
TRUCKS
URVAN Bus/Familial (E23)	07.80-11.88
URVAN Bus/Familial (E24)	11.86-05.97
URVAN Kasten/Box/Furgón/Van (E23)	07.80-05.87
URVAN Kasten/Box/Furgón/Van (E24)	05.87-05.97
URVAN Pickup (E23)	03.81-10.86
VANETTE Bus/Familial (C22)	10.86-12.95
VANETTE Bus/Familial (KC120)	06.81-12.87
VANETTE CARGO Bus (HC 23)	09.94-
VANETTE CARGO Kasten/Box/Furgón/Van (HC 23)	01.95-
VANETTE Kasten/Box/Furgón/Van (C22)	10.86-01.95
VIOLET Kombi (A10)
X-TRAIL (T30)	06.01-
X-TRAIL (T31)	06.07-

COMPANY INTRODUCTION:

We,Zhejiang Gerep Automotive Parts MFG Co., Ltd.,is a professional shock absorber manufacture.We manufacture different kinds of shock absorber,which suit for passenger car,truck,off road,coilovers etc.We pursue high quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

GEREP SHOCK ABSORBER - CREAT VALUE FOR CUSTOMER
