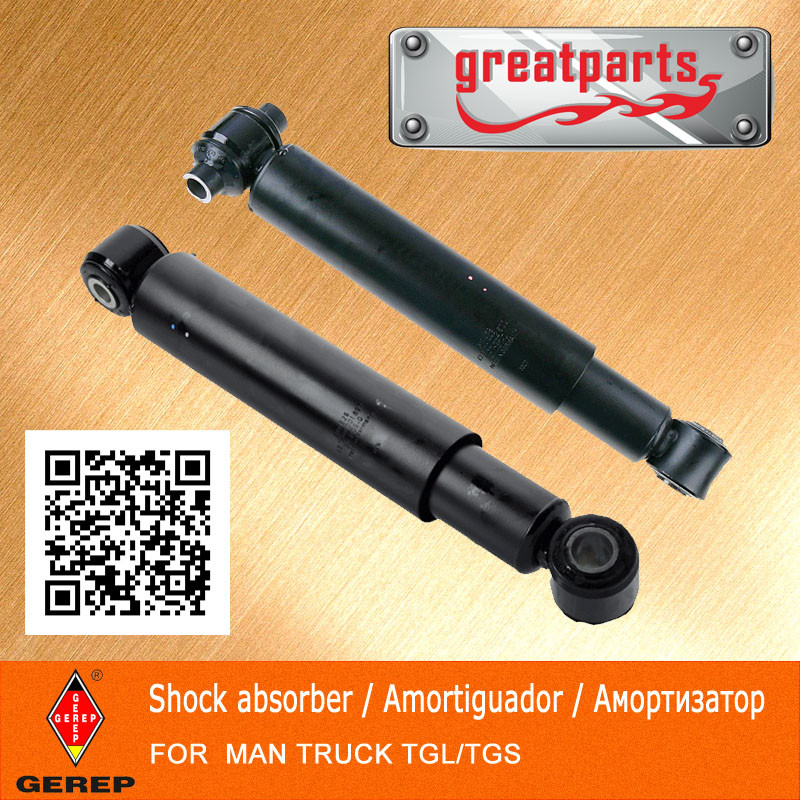

Car Shock Absorber for Man Tgl Truck Shock Absorber

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
100.0	US $ 0.1/ Piece

Price:US $0.1 / Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Jul 08, 2015 To Sep 17, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:85.43701.6006 81.43702.6000

Part:Dampers

Position:Front

Type:Gas-Filled

Spring Type:Coil Spring

Spring Material:Steel

Structure:Double Cylinder

Application:Man

Brand:Gerep

Damping Force Direction:Bidirectional

Categories:Truck Spare Parts

Products:Shock Absorber

Location:Zhejiang, China

Painting Color:Customized Color Is Available

Painting Style:Shining or Matte

Packing Box:Customized Color Is Available

Engrave:Customized Design Is Available

Delivery Date:45~60 Days

Transportation:by Sea, Train or Air

Quality Guarantee:30000 Kms

Export Markets:Global

Additional Info.

Trademark:GEREP

Packing:Gerep Color Package and Customized Package.

Standard:TS/SGS 16949

Origin:Zhejiang

HS Code:870880100

Production Capacity:50000 PCS/Month

Product Description

TECHNOLOGY INTRODUCTION:

S/N.	Material speciation	Top quality
1	Piston Rod	The piston rod, larger in diameter to increase the strength, is hard-chrome plated, induction hardening , and fine polished for greater resistance to corrosion, thus, assuring of smooth action.
2	Oil Seal	The special Multi-slip oil seal, made of oil and wear-resistant high quality synthetic rubber, having high sealing efficiency to keep vital oil and gas in and dirt out of the cylinder.
3	Rod Guide	The sintered iron rod guide with a PTFE-bushed sliding surface, assures smooth rod action with minimal resistance and wear.
4	Nitrogen Gas	Nitrogen gas is filled in the reservoir except hydraulic type shock absorbers.
5	Rebound Stopper	A rebound stopper, made of a high quality synthetic rubber, or resin, is installed on the piston rod to act as the rebound stop.
6	Pressure Tube	The pressure tube, with a precision sliding surface mirror-like finish is designed to withstand tremendous internal working pressures, thus, providing greater reliability.
7	Piston Valve	Unique automatic control rebound disc valve, which automatically adjusts to all ride conditions, is designed to assure maximum performance and smooth ride control.It also provides instant response for full performance without any time lag.
8	Absorber Oil	Our absorber oil with constant viscosity, blended with chemical additives provide optimum operating performance keeping its efficiency, in any weather conditions.
9	Bottom Valve	Compression disc valve, which provides excellent performance, has automatic control actions similar to the rebound piston disc valve.

TRADE CONDITION:

1. RFQ - Request for quotation

We could identify shock absorbers by OEM No. or other brands part number which list following ( KYB, TOKICO, SACHS. BOGE, Bilstein, AL-KO, KONI, SABO, WEBCO, RECORD, MONROE, Gabriel, Cofap, Corven, NAKATA, Ultima, etc. )

Please send RFQ to our email to know our latest prices.

2. MOQ - Minimum order quantity

Our MOQ is 100 Pcs for each item, but if there are few items that we have in stock, the MOQ will not be indicated.

3. Customized brand packing box

We could accept customerized brand packing box based on MOQ 3000 pcs. If customerized brand order quantity less than 3000 pcs, a extra charge for printing box will be added in commercial invoice.

4. Delivery time: 45~60 days.

5. Payment term: 1> L/C 2> T/T

SHOCK ABSORBER SUIT FOR ALL MAN SERIES:

Application models for MAN truck	Year	OEM
MAN-BÜSSING		81.43701.6177 81.43701.6178 81.43701.6418
F 90	06.86 - 12.97	81.43701.6442 81.43701.6491 81.43701.6492 81.43701.6493
F 2000	01.94 -	81.43701.6795
G 90	09.87 -05.95	81.43701.6354 81.43701.6392 81.43701.6410 81.43701.6338 81.43701.6452
L 2000	10.93 - 06.96	81.43701.6783 81.43701.6781 81.43701.6789 81.43701.6864
M 90	08.88 - 12.98	81.43701.6391 81.43701.6631 81.43701.6630 81.43701.6650
M 2000 L	03.95 -	81.43701.6781 81.43701.6789 81.43701.6860 81.43701.6866
M 2000 M	06.95 -12.05	81.43701.6841
TGA	03.00 -	81.43701.6964 81.43701.6897 81.43701.6948 81.43701.6902
TGL	04.05 -	85.43701.6006 81.43702.6000
TGS	08.07 -	81.43702.6002 81.43702.6004 81.43702.6005 81.43702.6014 81.43702.6078
TGX	09.07 -	81.43702.6076 81.43702.6012
8		81.43701.6211 81.43701.6503
9	09.79-	81.43701.6354 81.43701.6392 81.43701.6410 81.43701.6338 81.43701.6452
10		81.43701.6097 81.43701.6346
11		81.43701.6112 81.43701.6535
13		81.43701.6211 81.43701.6503 81.43701.6112 81.43701.6535
14		81.43701.6112 81.43701.6535 81.43701.6391 81.43701.6631 81.43701.6644 81.43701.6658 81.43701.6211
15		81.43701.6211 81.43701.6503 81.43701.6097
16	02.84 - 08.89	81.43701.6112 81.43701.6535 81.43701.6097 81.43701.6346 81.43701.6442 81.43701.6491 81.43701.6347 81.43701.6348 81.43701.6177
17	02.84-08.89	81.43701.6391 81.43701.6631 81.43701.6644 81.43701.6658 81.43701.6347 81.43701.6348 81.43701.6097
19		81.43701.6347 81.43701.6348 81.43701.6442 81.43701.6491 81.43701.6255 81.43701.6279 81.43701.6280
20		81.43701.6211 81.43701.6503 81.43701.6177 81.43701.6178
22		81.43701.6211 81.43701.6503 81.43701.6097 81.43701.6346 81.43701.6347 81.43701.6348 81.43701.6442
24		81.43701.6442 81.43701.6491
25		81.43701.6442 81.43701.6491
26		81.43701.6442 81.43701.6491
30		81.43701.6211 81.43701.6503
32		81.43701.6112 81.43701.6535
33		81.43701.6442 81.43701.6491
34		81.43701.6347 81.43701.6348
36		81.43701.6255 81.43701.6279 81.43701.6280
38		81.43701.6442 81.43701.6491
40		81.43701.6491
41		81.43701.6097 81.43701.6346
48		81.43701.6255 81.43701.6279 81.43701.6280 81.43701.6426

COMPANY INTRODUCTION:

We,Zhejiang Gerep Automotive Parts MFG Co., Ltd.,is a professional shock absorber manufacture.We manufacture different kinds of shock absorber,which suit for passenger car,truck,off road,coilovers etc.We pursue high quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

GEREP SHOCK ABSORBER - CREAT VALUE FOR CUSTOMER
