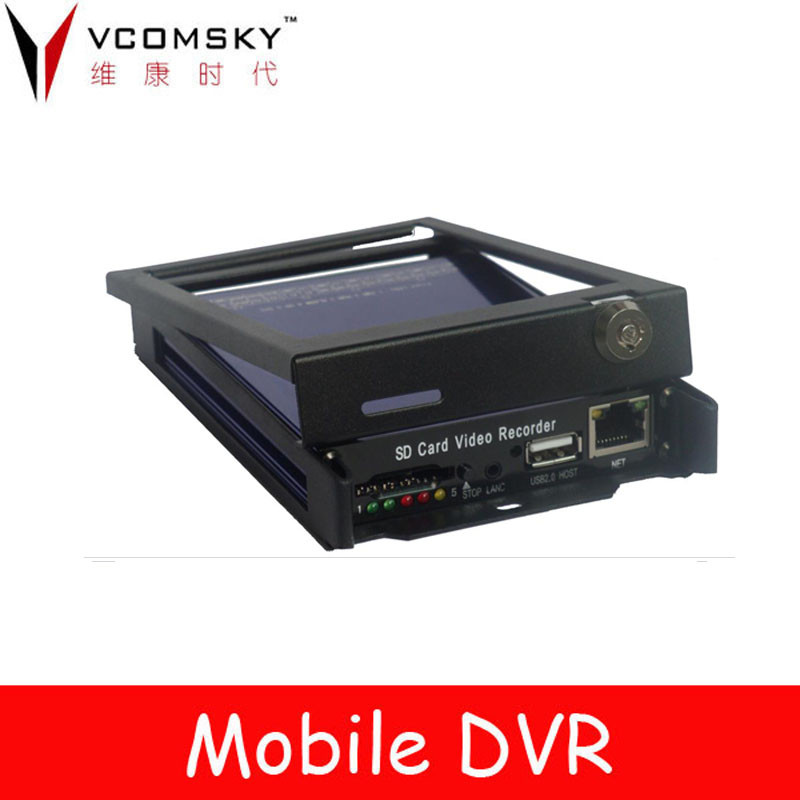

Car Safety SD Card Vehicle DVR with GPS Function for Optional

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 200/ Piece

Price:US $200.0 / Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Western Union, Money Gram

Price Valid Time:From Sep 16, 2014 To Dec 16, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:S004

Type:Standalone

Video Compression:MPEG-4

Compressed Format:H.264

Application:Commercial DVR

Interface Type:BNC

Video Input/Output:4 Channel

Audio Input/Output:4 Channel

Video Standard:PAL(25fps) NTSC(30fps)

Audio Compression:AAC

Compress Capability:D1×100 Frame

Video Rate:D1: 200kbps ~ 2Mbps, 4 Level Image Adjustable

Audio Rate:8kb/S

Data Storage:SD Card, USB Interface Can Connect USB Flash Drive

Video Format:AVI Video & Audio File Output

Software Upgrade:Support USB & SD Card Upgrade

Export Markets:Global

Additional Info.

Trademark:Vcomsky

Origin:Shenzhen, China

Production Capacity:5000PCS/Month

Product Description

It's designed to meet demanding security applications such as public transportation, law enforcement and military. The SDVR produces H. 264 high profile high-resolution video, allows recorded video to be quickly exported through its SD card.
The DVR supports up to 4 channels of video, 4 channels of audio and gives users the option of selecting recording resolutions. It can support 32GB SD card.
This mobile solutions are currently being used in the following applications:
· Law Enforcement - Patrol Cars
· Military - Tanks
· Emergency - Ambulances, Fire Trucks
· Public - Buses, Trains, Railways, Subways
· Commercial - Boats, Heavy Equipment, Limousines, Taxis, Vans
· Transportation - Freight Liners
· Aviation - Helicopters, Commercial and Private Aircraft

Key Features
* 1/2/4 channel full D-1 resolution, PAL 25fps, NTSC 30pfs.
* Continuous record, Motion Detect record,
* IR remote controller or control panel

* Real time quad display and recording at 25fps (PAL) / 30fps (NTSC) per camera

* Manages storage and recycles space automatically

* Vehicle status sensor displays and records time/date, vehicle speed, Route-ID,
Left/right turn, brake, reverse, door open signals on video

* Motion detection supportable: 4 "Alarm Input" and 1 "Alarm Output" connections allow external events to turn on recording or be turned on by motion detection

* Post recording of 0- 3600 seconds after ignition off

* Support wide range of voltage input (8V~32V)

* 12V, 1.5A power out connection for CCTV cameras

* Bookmark button for easy search and review of incidents

* GPS location info of each car

* Multi-layers password protection
* Highly efficient power management

		Item				Capability specs
system		Language				Simplified Chinese/Traditional Chinese/English
		Operate interface				Graphics menu
		Password				Admin's password, user's password
Video		Video input				1/2/4Channel 1.0V, p-p,75?,BNC
		Video output				1Channel 1.0V, p-p,75?,BNC
		Display				1/2/4 channel display
		Video standard				PAL(25fps) NTSC(30fps)
	Audio	Audio Input				1/2/4Channel,20K?,RCA
		Audio output				1Channel,500?,RCA
		Voltage output				1V ~2V, p-p
		Audio Recording				Video & Audio recording together
		Audio compression				AAC
	Image and Storage	Image compression				H.264 High Profile compression
		Compress capability				D1×100 frame
		Video rate				D1: 200Kbps ~ 2Mbps,4 level image adjustable
		Audio rate				8KB/s
		Data storage				SD card, USB interface can connect USB Flash Driver & HD
	Video format	AVI Video & Audio file output
	Alarms	Sensor input			1 speed signal,1 ignition signal,3 common signal input
	Communication interface	Serial interface			Support 2 RS232 port, 1 RS485 port
		Network interface			RJ45,10M/100M network port
	Wireless Communication (Developing)	CDMA			CDMA Module outside connection optional
		EDGE			EDGE Module outside connection optional
		GPRS			GPRS Module outside connection optional
	GPS	Support GPS module outside connection; longitude,latitude,speed can display on your monitor
	Gsensor	Built-in
	Software	PC display	Display Video file and analyse the vehicle's information
	Third party software	Support Third party software,such as VLC,or Windows media player with uMedia plug-in
	Software upgrade	Support USB & SD card upgrade
	Power	Power input		DC:+8V ~ +32V
		Power output		+12V@1.5A;+5V@1A
		Watt consumption		5W;Less than 0.1W when units Stand-by
	Working Condition	Temperature		-10----60degree
	Size	9.2CM(W)×2.0CM(H)×11.5CM(L)
